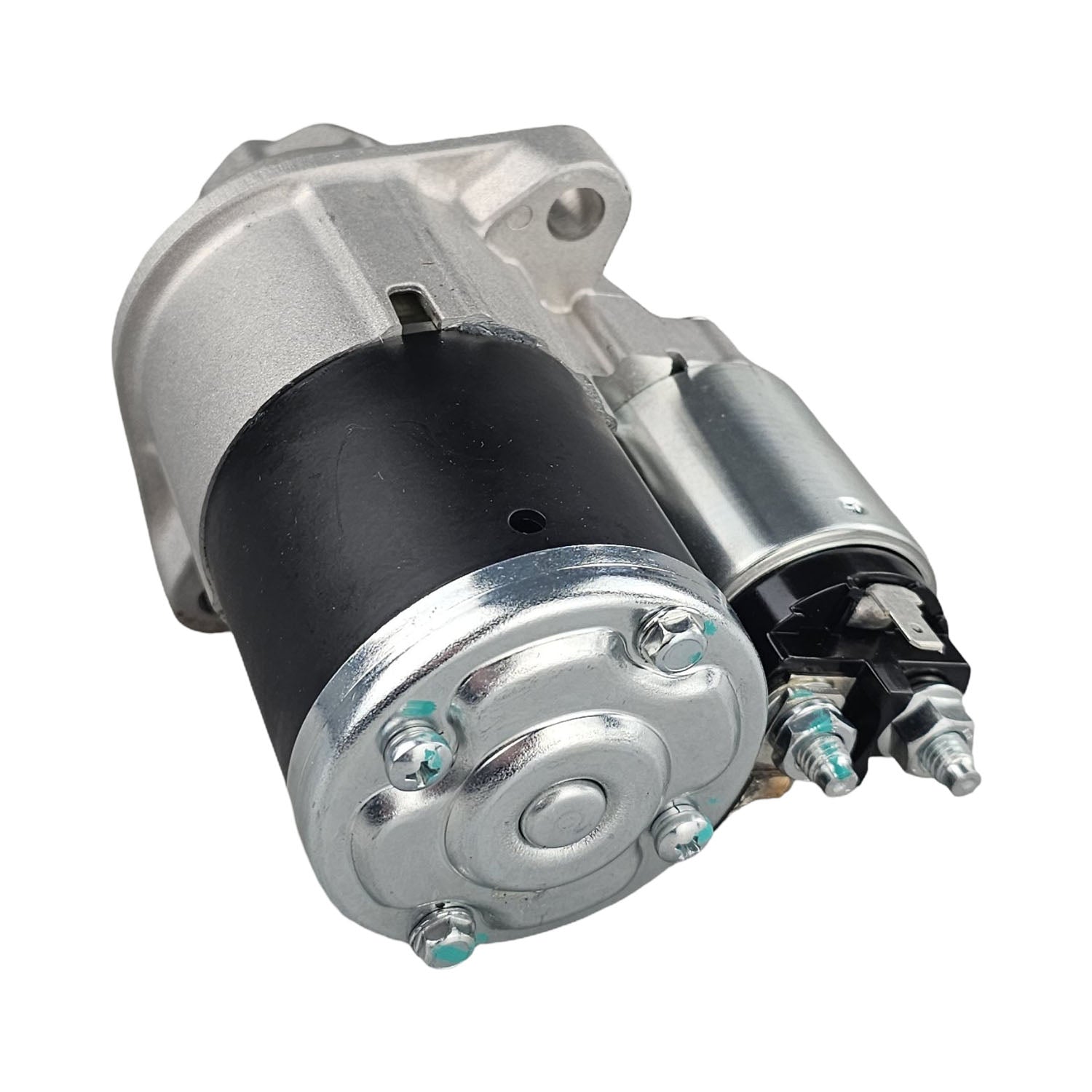

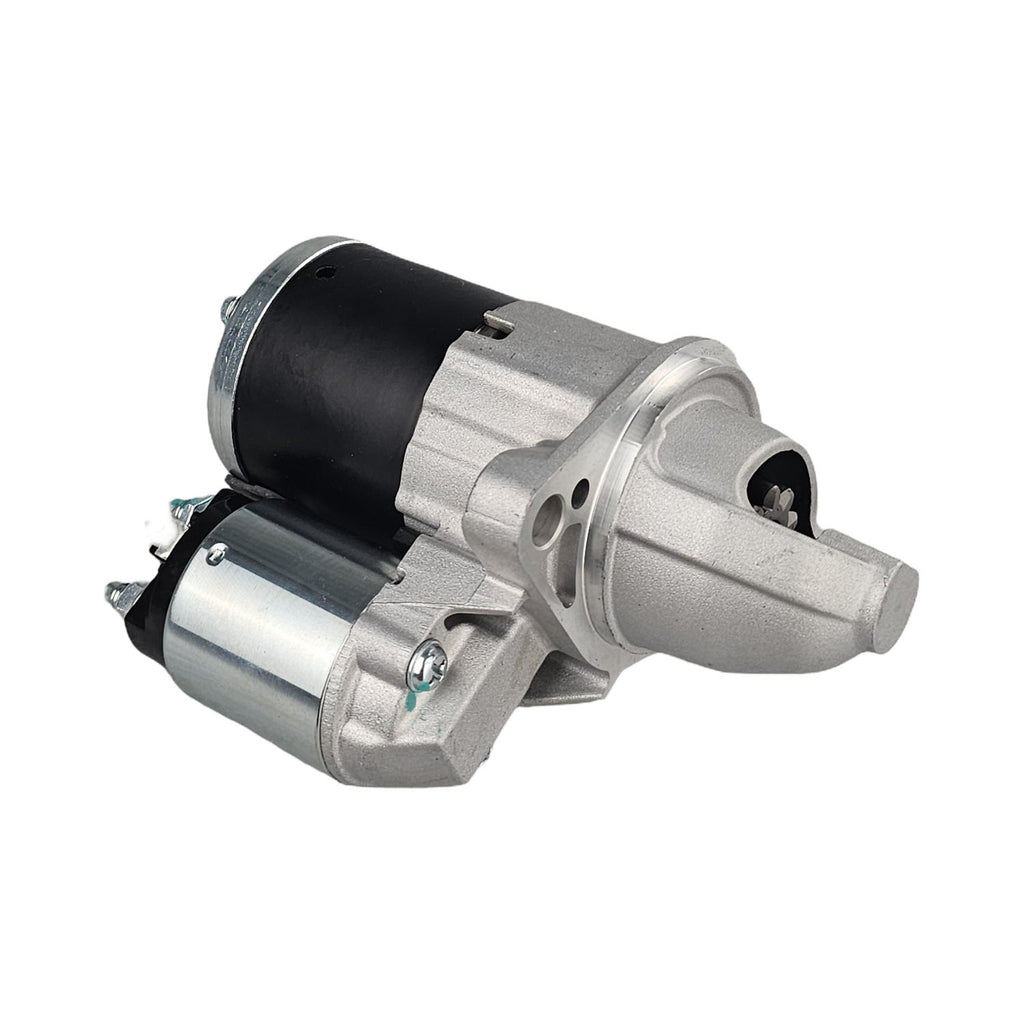

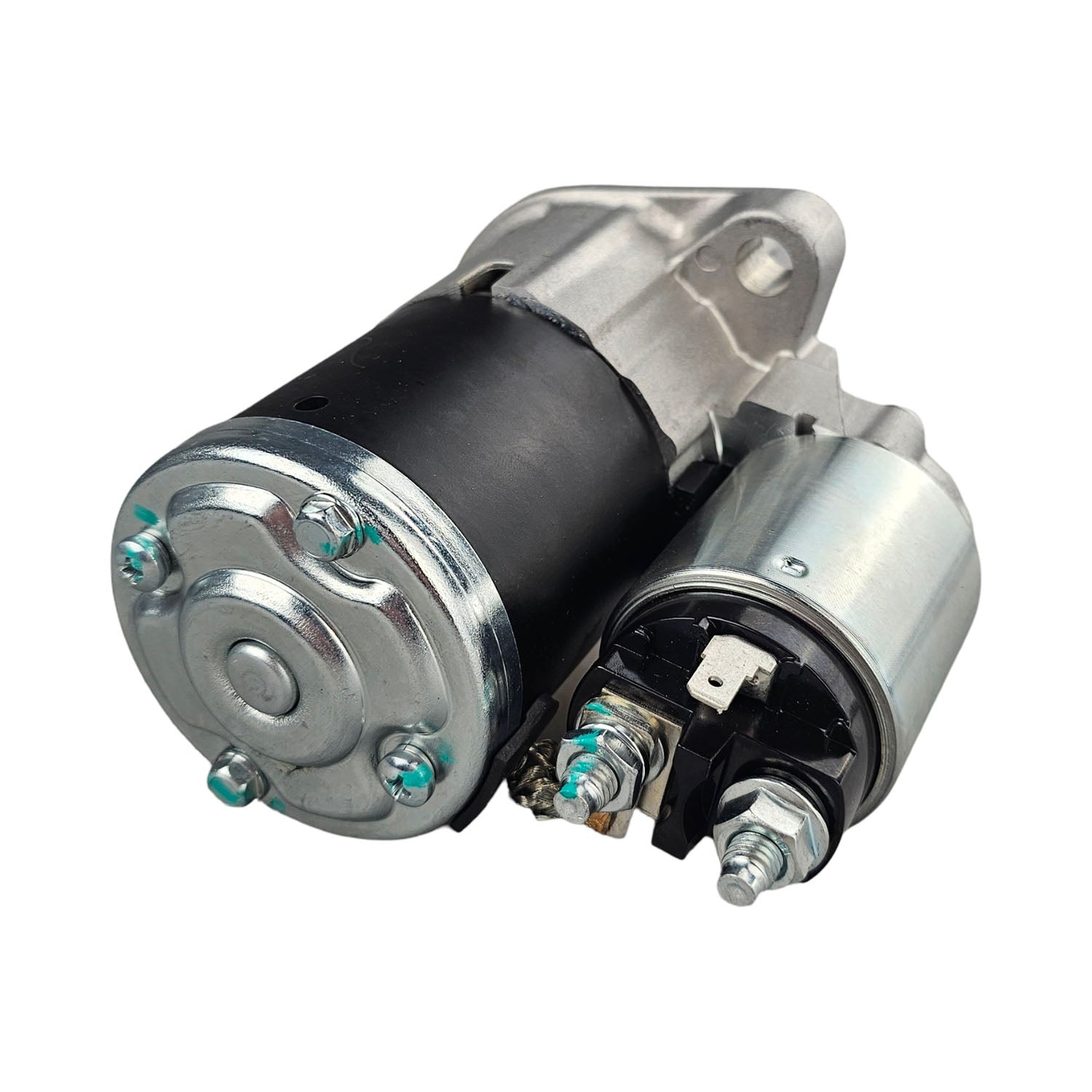

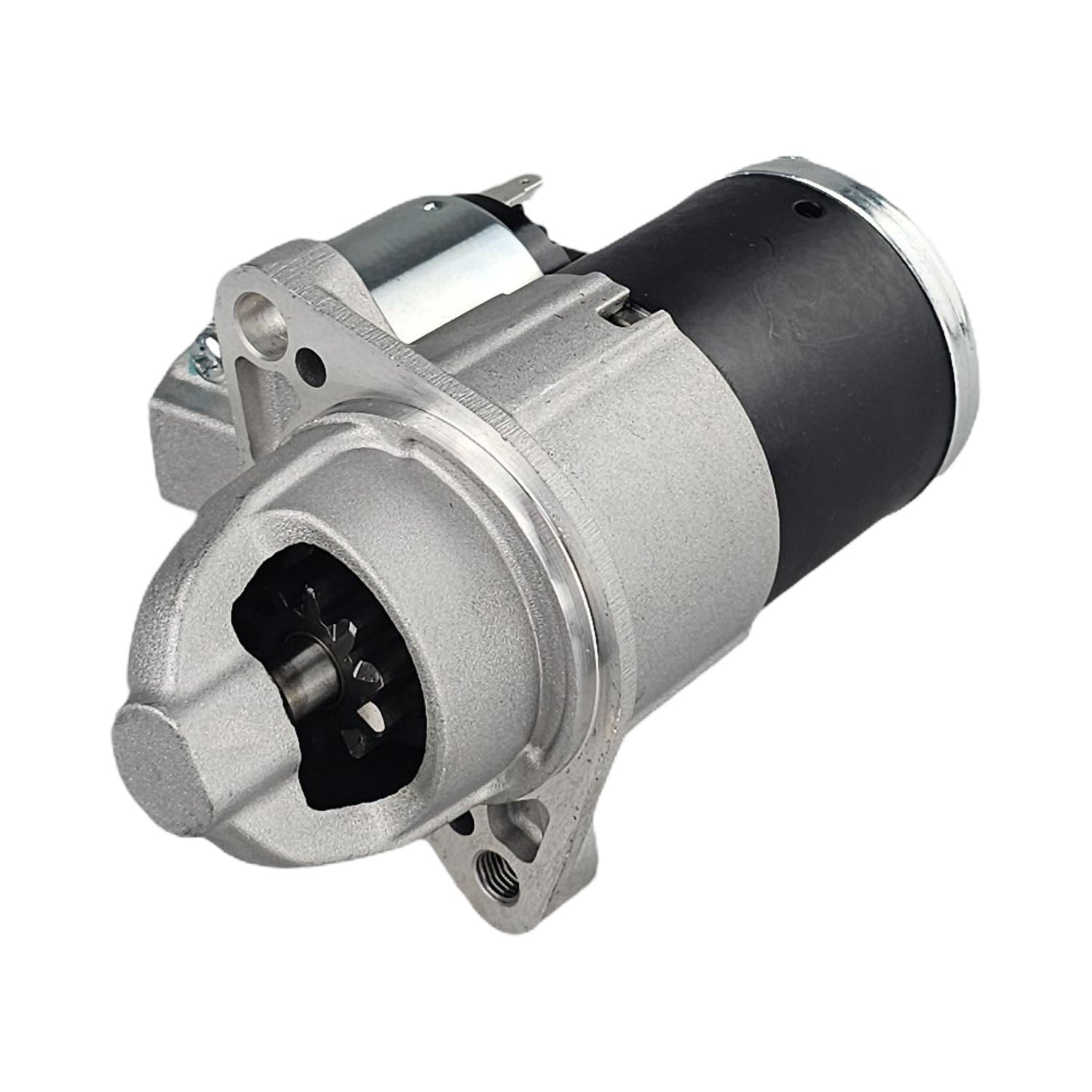

Starter Motor for Suzuki Swift AZ 1.0L K10C, 1.2L K12C K12D Hybrid, 1.4L K14C / Vitara LY 1.4L K14C, 1.4L K14D/WA06B Hybrid, 1.6 M16A / Ignis MF 1.2L K12C / S-Cross JY 1.4L K14C, 1.6L M16A / Baleno EW 1.0L K10C - 10 Tooth Pinion

One Brand New Starter Motor

Please double check OE part number

10 Tooth Version - for 8 Tooth Pinion Please See BSM1062

We are proud to offer top-tier starter motors that set the standard in automotive excellence. Our products are crafted in accordance with stringent international quality standards (ISO/TS16949), ensuring reliability and superior performance for a wide range of vehicles.

Vehicle Fitment

• Suzuki Baleno EW WB42S 1.0L K10C Turbo I/C FWD (07/2016 - 09/2022) 10 Tooth Pinion
  Includes Sub-models GLX, GLX Turbo, RS

• Suzuki Ignis MF FH11S 1.2L K12C FWD (11/2016 - Onwards) 10 Tooth Pinion
  Includes Sub-models GL, GLX, GLX Shadow
• Suzuki S-Cross JY YAA2S YBA2S 1.4L K14C Turbo I/C / YA22S YB22S 1.6L M16A AWD FWD (01/2014 - Onwards) 10 Tooth Pinion
  Includes Sub-models GLP, GLX, Plus, Turbo, Turbo Prestige, Allgrip, Allgrip Prestige, JLX, Turbo GL+, Turbo GLX, Turbo GLXS, GL, GL Navi, GLX Navi,
• Suzuki Swift AZ ZC13S 1.0L K10C / ZCA3S ZC83S 1.2L K12D(Hybrid) K12C / ZC33S 1.4L K14C FWD (04/2017 - Onwards) 10 Tooth Pinion
  Includes Sub-models GLX Turbo, GLX Shadow, GLX, LTD, LTD MHEV, GL, GL Navigator, GL Plus, GL S, GL S Plus, GL Shadow, GL Special Edition, Sport, Sport Turbo, Sport Turbo GL
• Suzuki Vitara LY EA1S DA1S 1.4L K14C Turbo I/C 4WD FWD (01/2016 - Onwards) 10 Tooth Pinion
  Includes Sub-models Turbo, S Turbo, Turbo Allgrip
• Suzuki Vitara LY DD1S ED1S 1.4L K14D/WA06B Hybrid Turbo I/C 4WD FWD (2023 - Onwards) Please Check OE Part Number, 10 Tooth Pinion
  Includes Sub-models JX Hybrid, JLX Hybrid
• Suzuki Vitara LY YD21S YE21S 1.6L M16A 4WD FWD (09/2015 - Onwards) 10 Tooth Pinion
  Includes Sub-models Beat, GL, GL+, RT-S, Shadow Limited Edition, GLX, RT-X


Specifications and Sizing

• Voltage : 12V

• KW: 1.2
• Rotation Direction: Clockwise
• Pinion Teeth: 10T
• Pinion at Rest: 28mm

• Overall Length: 182mm
• Mounting Bolt Centre-Centre(s): 101mm

• Flange Diameter: 70mm


What's Included

• 1 x Starter Motor
