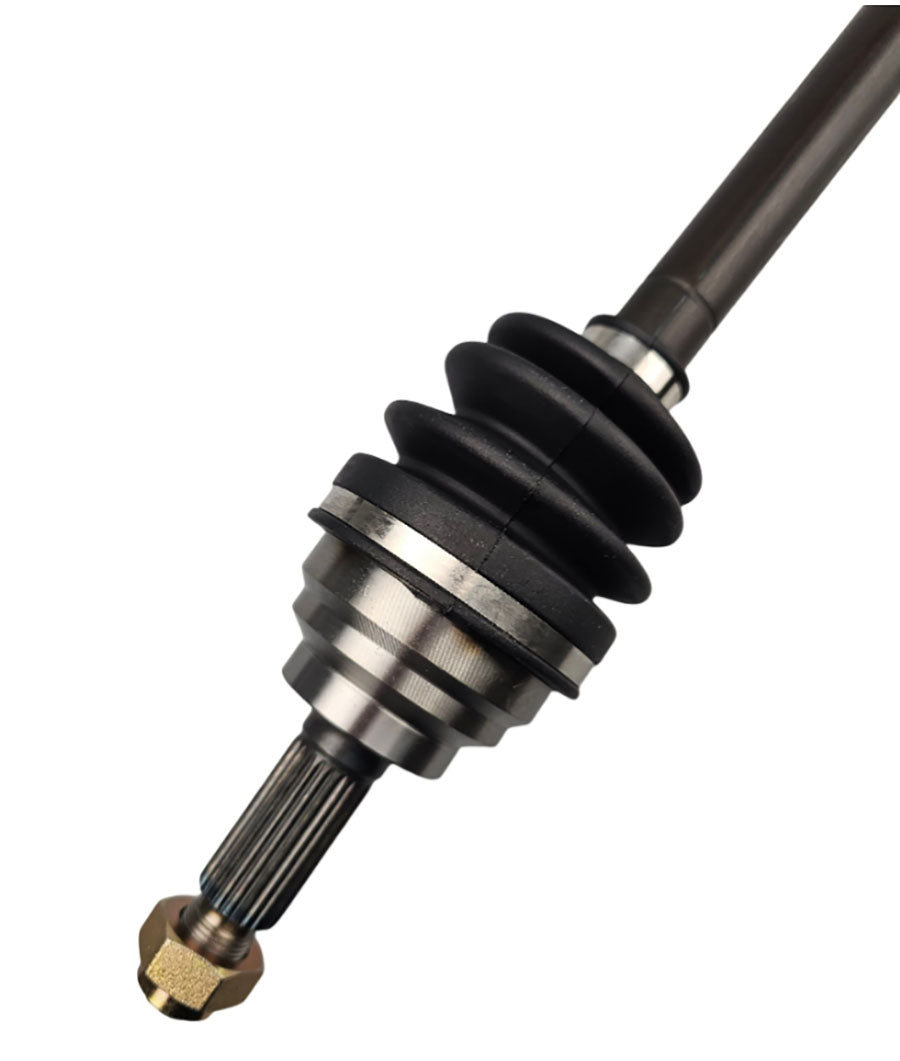

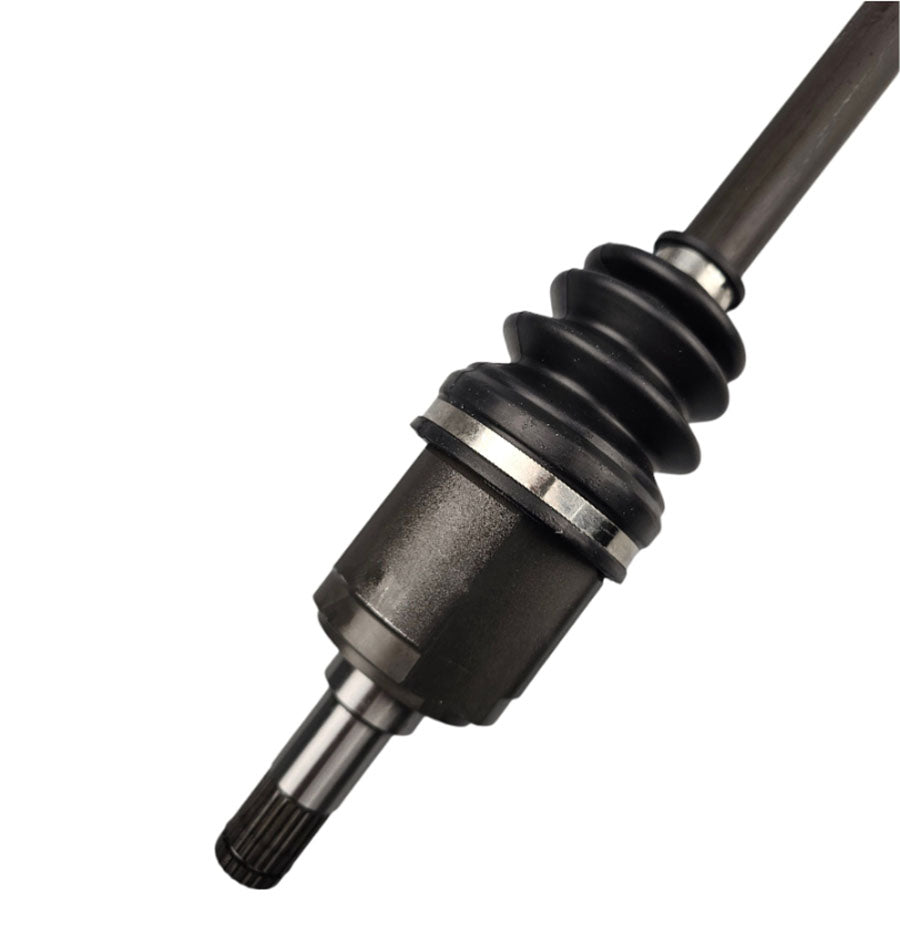

CV Axle Drive Shaft - Front Right Hand Side Automatic Manual FWD
***Front right, for some manual models please see CVA1142***
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Kia Rio BC DC223 DC243 1.5L A5D FWD MT AT (07/2000 - 07/2005) Right side, automatic only
Includes Sub-models LS
- Mazda 121 DB DB3P 1.3L B3, DB5P 1.5L B5 FWD MT AT (11/1990 - 08/1997) Right side, automatic only
Includes Sub-models Shades
- Mazda 323 BD BD103 1.3L E3, BD105 1.5L E5 FWD MT AT (10/1980 - 10/1985)
Includes Sub-models SS, GT, Deluxe, Super Deluxe, Special
- Mazda 323 BF BF6P BF6S 1.6L B6 FWD MT AT (10/1985 - 08/1989)
Includes Sub-models SS, SS Turbo, Deluxe, Super Deluxe, Special, Shades, Limited
- Ford Festiva WA WB WD WF (DA1 DB1) FWD MT AT (10/1991 - 12/2000) Right side, automatic only
Includes Sub-models Trio, Trio S, GLI, GLXI
- Ford Laser KA KB KC KE - FWD MT AT (03/1981 - 02/1990)
Includes Sub-models Sport, L, GL, GHIA, Turbo, TX3, TX3i
- Ford Capri SA SB SC SE 1.6L B6 FWD MT AT (1989 - 07/1994)
Includes Sub-models
Sizing and Specifications
- Length (Compressed): 887mm
- Spline Count - Outer/Wheel Side: 24T
- Spline Count - Inner/Diff Side: 24T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- ABS: No
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
