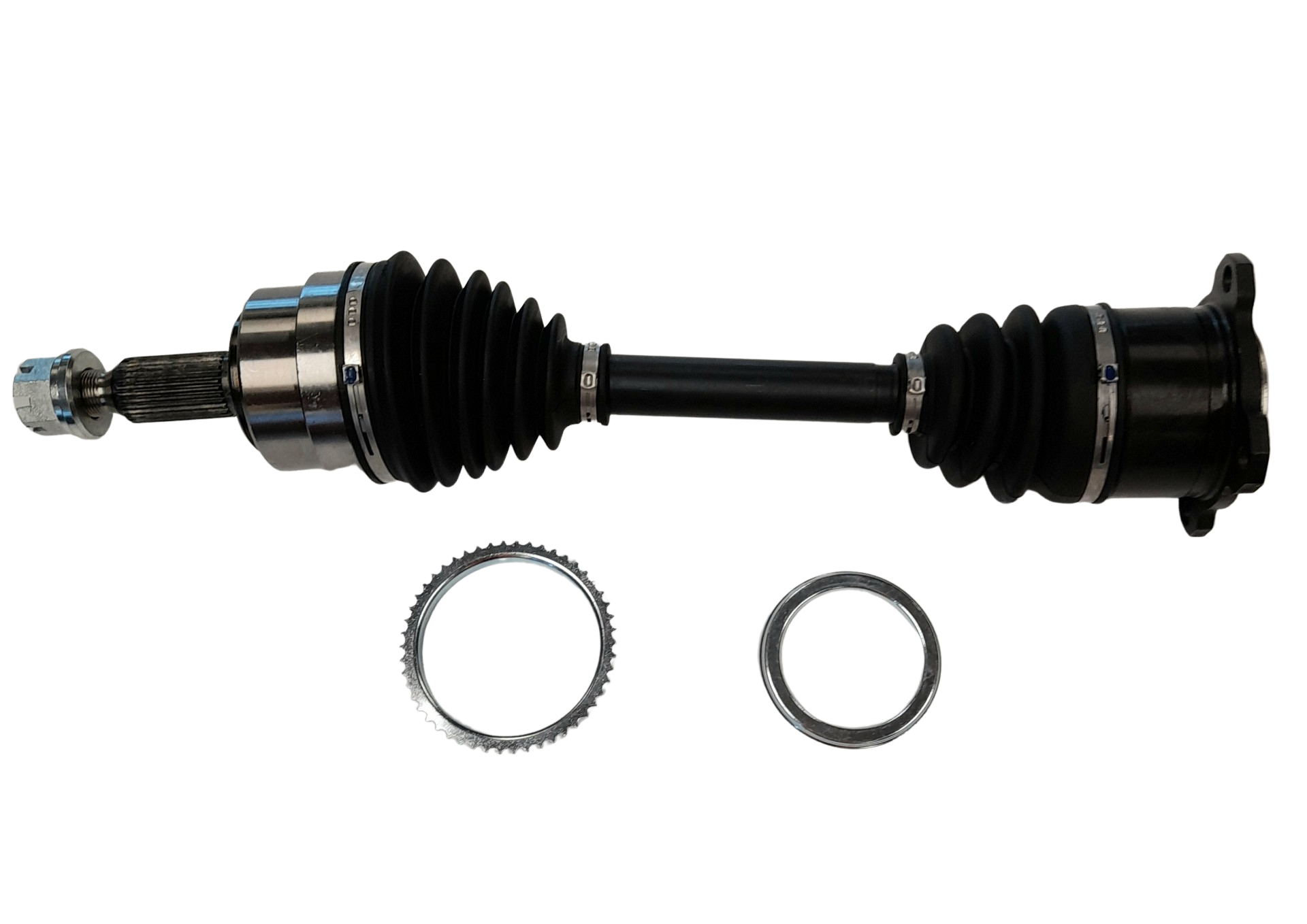

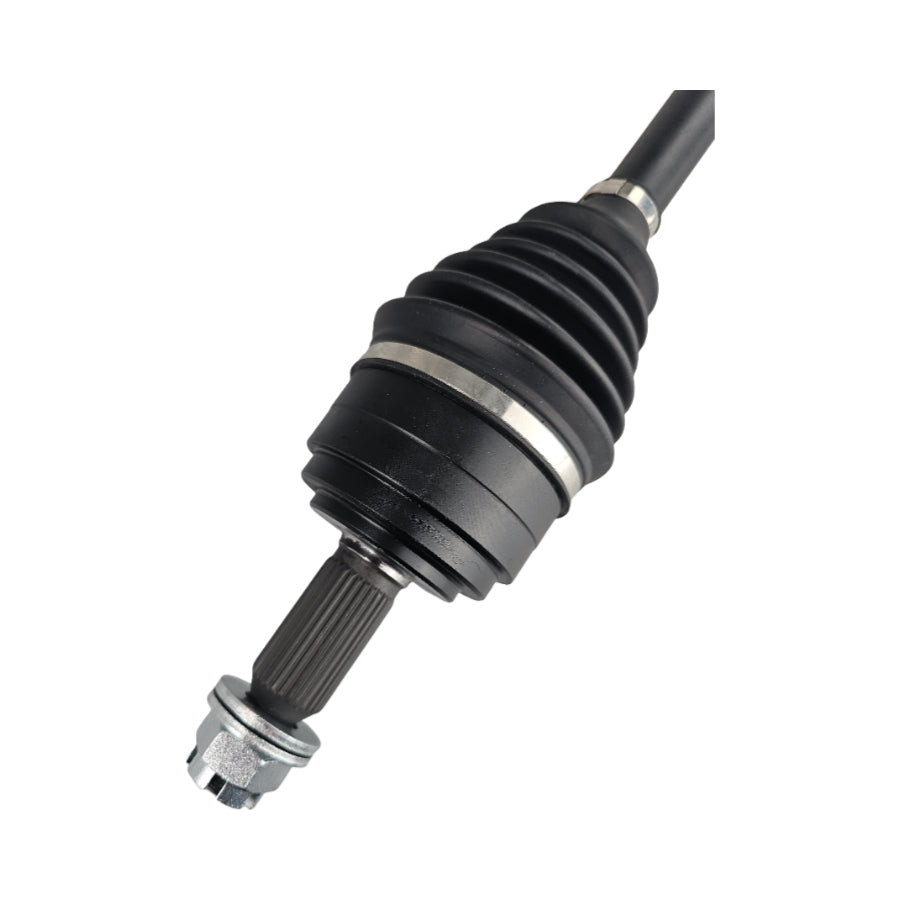

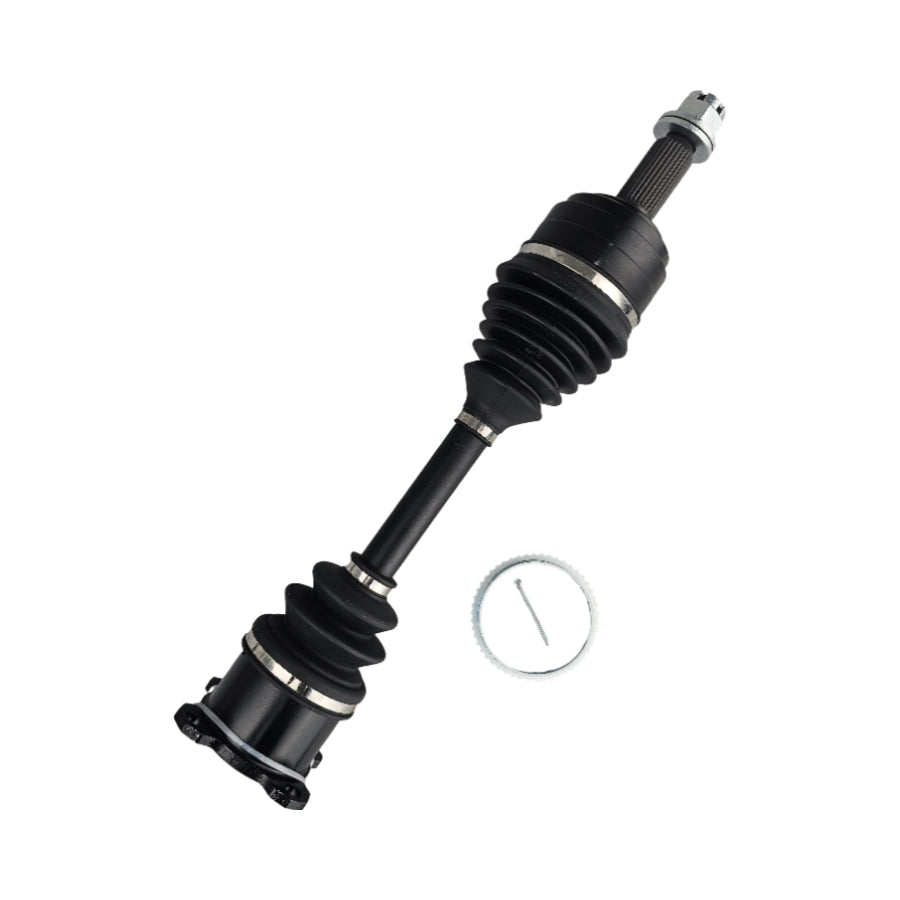

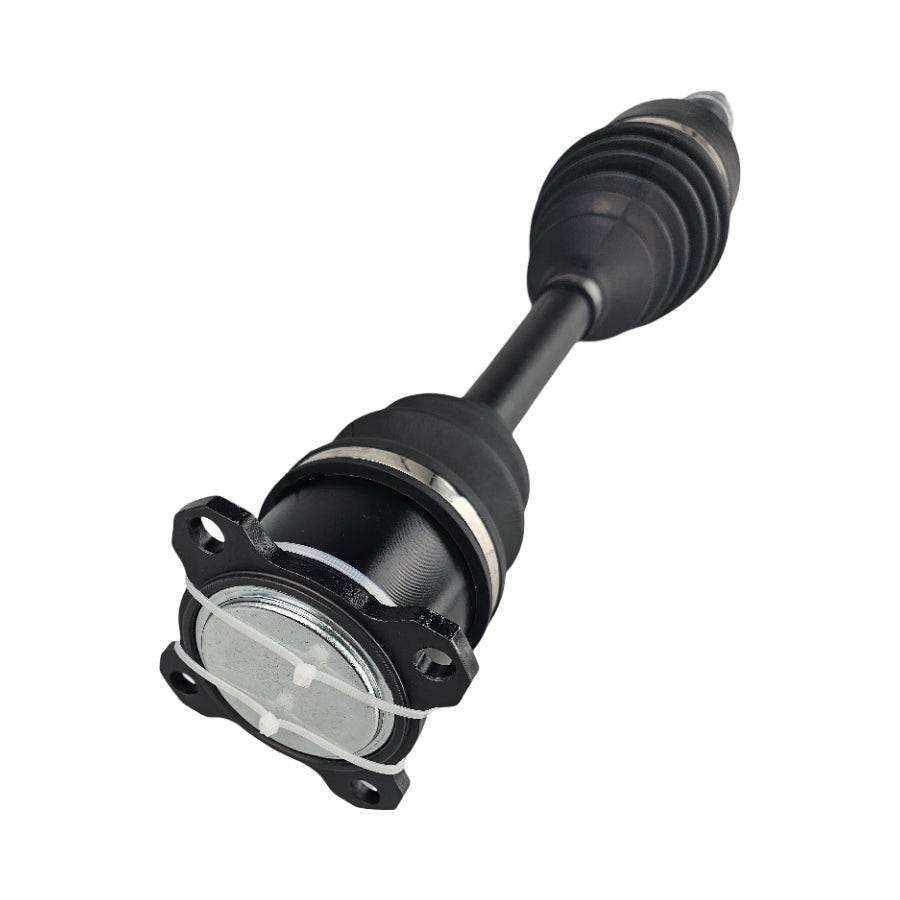

CV Axle Drive Shaft - Right Hand Side Automatic/Manual 4WD
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Mitsubishi Pajero NP 4M41T (2002-09/2006)
Sub Models GLX, GLS, Exceed, VRX.
- Mitsubishi Pajero NS 4M41T (2006-12/2008)
Sub Models Include GLX, GLS, Exceed, VRX,
- Mitsubishi Pajero 4M41T (2007-01/2009)
Sub Models Include RX, NS.
- Mitsubishi Pajero NS NT GG75 (2006-01/2010)
Sub Models Include R X,
- Mitsubishi Pajero NS NT NW GG75 (2006-05/2013)
Sub Models Include R X, Active, Exceed, GLX, Platinum, Edition, R, RX VRX.
- Mitsubishi Pajero NT 6G75 (2009-06/2014)
- Mitsubishi Pajero NT NW NX 4M41T (2009-07/2016)
Sub Models Include R X, Active, Exceed, GLX, Platinum, Edition, R, RX VRX. GLS, GLX 30TH Anniversary, Platinum 2,
- Mitsubishi Pajero NX 4M41T (2016-03/2021)
Sub Models Include, Exceed, GLX, GLS, GLXS
Sizing and Specifications
- Length (Compressed): 528mm
-
Spline Count - Outer/Wheel Side: 30
- Flange Bolt Hole Diagonal: 115mm
- Flange Bolt Hole Across: 81mm
- ABS Ring Teeth: 50
What's Included
- 1 x CV Shaft - With ABS Tone ring
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
