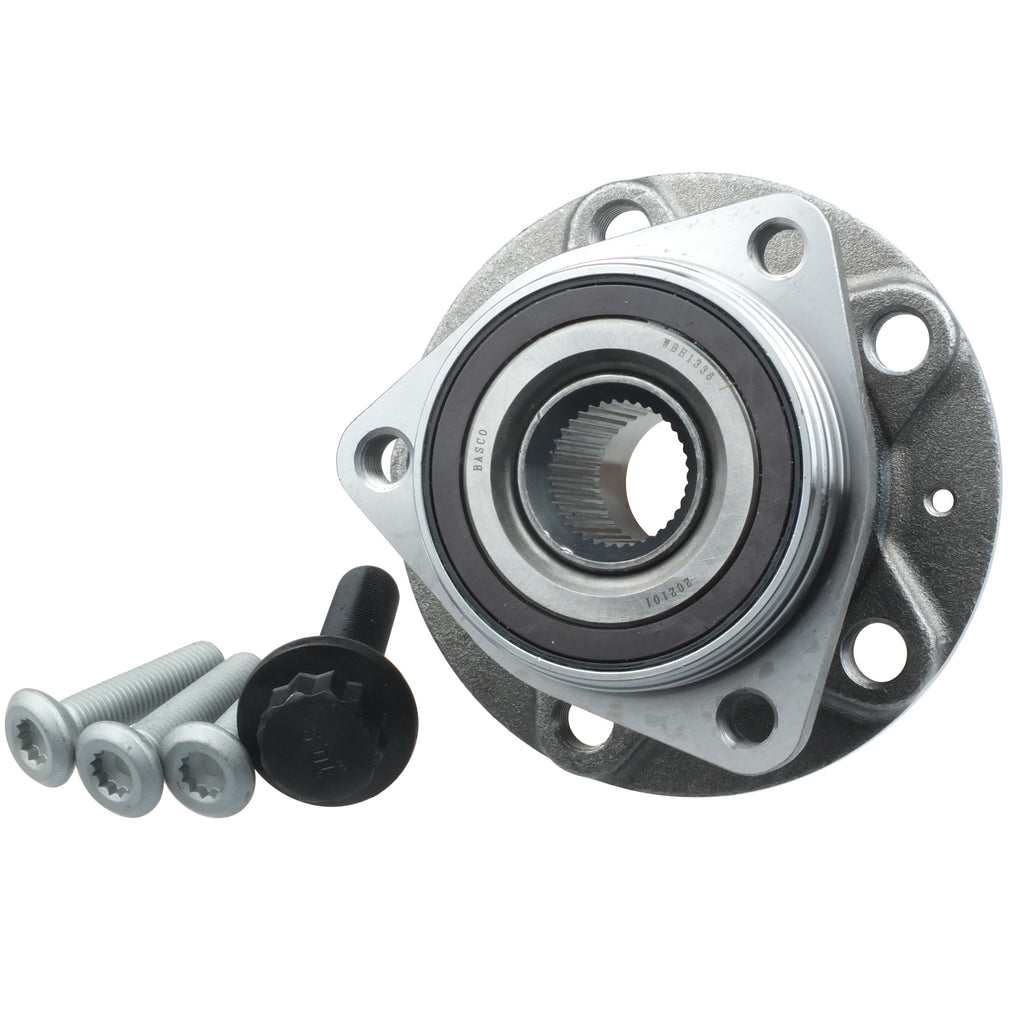

One Brand New Rear Wheel Bearing Hub Assembly

***For 3 bolt flange, 312mm brake disc, 85mm Hub Pilot***

Manufactured from premium steel, heavy-duty seals and OEM grade sensors. Precision engineered to OEM specifications for quiet smooth running operation. High grade Rubber used on ABS sensor wires (where applicable) for durability.

Vehicle Fitment Information

• Audi Q3 F3 2.0L DKTA (01/2020 - ON) AWD
  Includes Sub-models 45 TFSI QUATTRO
• Audi Q3 F3 2.0L DKTA (01/2020 - ON) AWD
  Includes Sub-models 45 TFSI QUATTRO SPORTBACK
• Audi Q3 F3 2.0L CZPA (01/2020 - ON) AWD
  Includes Sub-models 40 TFSI QUATTRO
• Audi Q3 F3 2.0L CZPA (01/2020 - ON) AWD
  Includes Sub-models 40 TFSI QUATTRO SPORTBACK
• Audi Q3 F3 2.0L DNPA (01/2021 - ON) AWD
  Includes Sub-models 45 TFSI QUATTRO
• Audi Q3 F3 2.0L DNPA (01/2021 - ON) AWD
  Includes Sub-models 45 TFSI QUATTRO
• Audi Q2 GA 2.0L DFGA (02/2017 - 07/2018) AWD
  Includes Sub-models 2.0 TDI QUATTRO
• Audi Q2 GA 2.0L CZPB (11/2017 - 06/2021) AWD
  Includes Sub-models 2.0 TFSI, 40 TFSI QUATTRO
• Audi TTS FV 2.0L CJXF (11/2015 - Onwards) AWD
  Includes Sub-models 2.0 TFSI QUATTRO

Specifications and Sizing

• ABS: Yes
• Bolt Circle Diameter (MM): 112.100
• Brake Pilot Diameter (MM): 64.900
• Flange Bolt Hole Quantity: 3
• Flange Diameter (MM): 136.400
• Flange Offset (MM): 48.000
• Hub Pilot Diameter (MM): 84.900
• Spline Quantity: 36
• Wheel Pilot Diameter (MM): 57.000
• Wheel Stud Quantity: 5

What's Included

• 1 x Full Hub Assembly

Our precise machining practices ensure that we deliver a premium product that produces a smoother roll and longer life span. All our bearing kits, hubs and componentry come with a 12 month/20,000km warranty. They are backed up with a professional customer service team that has been in the industry for over 30 years. We are the wheel end experts. Our customer service team will be there to support you throughout the entire process. From questions you have pre-purchase to follow up support post purchase. Make the right decision and buy with a company that has a proven track record in service and supply.
