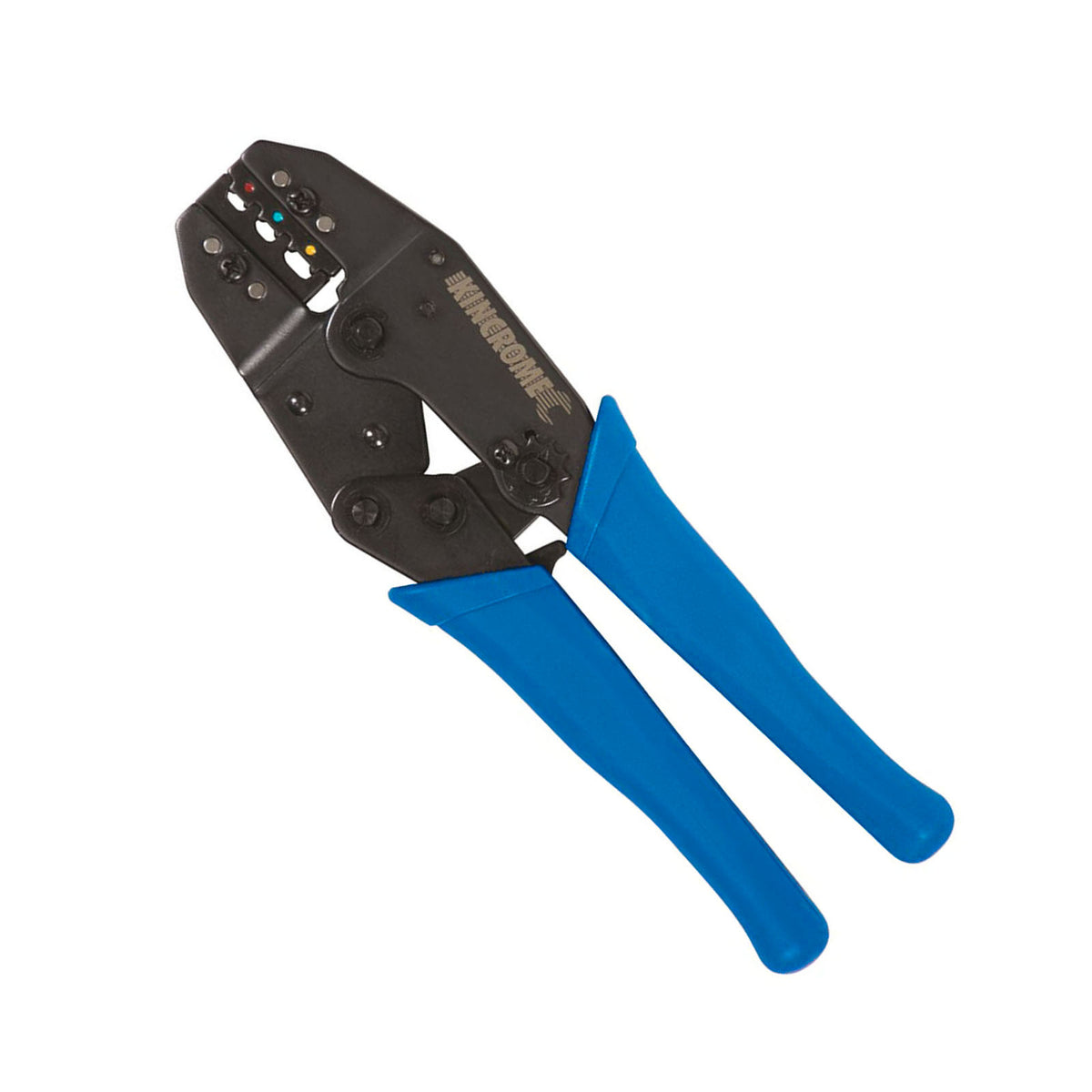

Kincromes Ratchet Crimping Plier 210mm (9") delivers professional-grade performance when working with insulated terminals on 10–22 AWG stranded copper wire. Its compound action mechanism boosts crimping power for minimal effort, while the built-in ratchet ensures uniform, reliable crimps every time. The precision-engineered cavity design guarantees consistent compression across red (0.5–1.0 mm² / 22–18 AWG), blue (1.5–2.5 mm² / 16–14 AWG) and yellow (4.0–6.0 mm² / 12–10 AWG) terminals. An adjustable force dial gives you control over crimp tension, and the tool’s rugged construction—carbon steel with hardened and tempered jaws, a chemically blackened finish for corrosion resistance, and PVC grips—ensures long-term durability and comfort on the job.
Specifications
Brand
KINCROME
Crimping Insulated Terminals Size
1.5mm (Red), 2.5mm (Blue), 6mm (Yellow)
Product Length
210mm (9")
Product Width
65mm
Thickness
15mm
Warranty
Lifetime Guarantee
Material
Carbon Steel
Length (mm)
210
Width (mm)
65
Height (mm)
15
Weight (kg)
0.5
Features
Crimps insulated terminals on 10-22 AWG stranded copper wire
Compound action increases crimping power
Built-in ratchet ensures uniform crimps
Unique cavity design for consistent results
Adjustable force dial
Carbon Steel with hardened and tempered jaws
Chemically blackened finish with PVC grips
Suitable for crimping insulated terminals as follows:
