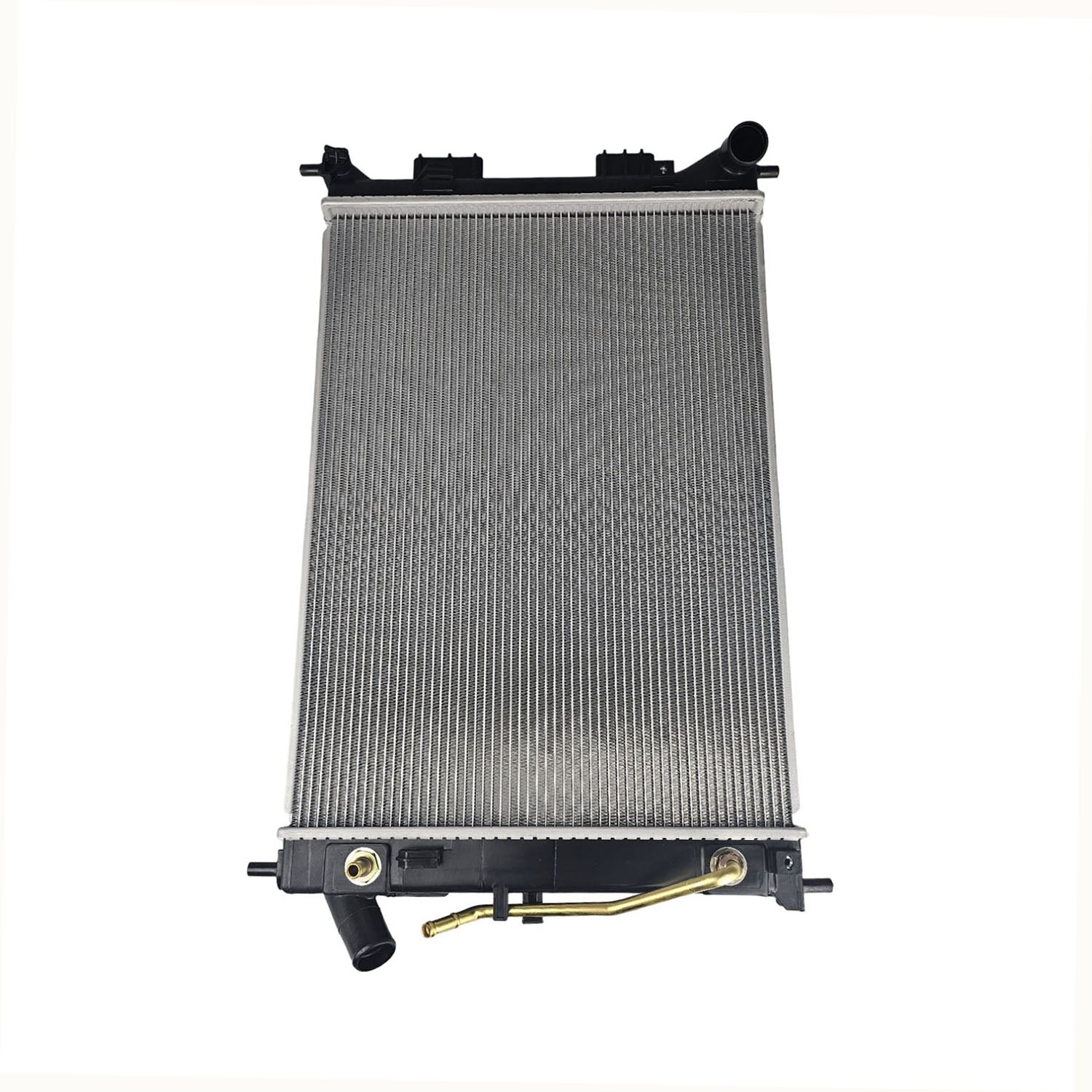

One Brand New Radiator
***Automatic Only, Oil Cooler Driver Side - Alternate Options RAD1166 Oil Cooler Passenger's Side or RAD1728
***
Basco radiators deliver peak automotive cooling performance through advanced manufacturing, including
nitrogen-protected aluminum brazing and high-frequency welded tube machines, ensuring durability and efficiency, with
every unit certified to ISO9001:2008 and IATF16949:2009 global quality standards.
Vehicle Fitment
-
Hyundai
- Elantra (06/2011~2013 – G4FG – 1.6L Petrol): DH41C
- Elantra (06/2011~2013 – G4NB – 1.8L Petrol): DG41E, DH41E – includes ACTIVE
- i30 Active, Elite, Premium, Tourer Active 1.6 CRDi, Tourer Elite 1.6 CRDi (05/2012~2014 –
D4FB – 1.6L Diesel): D251U, D281U, D351U, D381U
- i30 SE, Tourer 1.6 GDi (10/2012~2014 – G4FD – 1.6L Petrol): D231C
- i30 Active, Active X, Elite, Premium, SE, Trophy (05/2012~2014 – G4NB – 1.8L Petrol):
D251E, D351E
- i30 SR (08/2013~2014 – G4NC – 2.0L Petrol): D351H
-
Kia
- Cerato S (04/2013~05/2016 – G4NB – 1.8L Petrol): FK416, FK516
- Cerato KOUP Si, Si, SLi, SX (04/2013~2016 – G4NC – 2.0L Petrol): FX418, FX518, FX618,
FZ418, FZ518
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
-
Core Height: 399.7 mm
-
Core Width: 553 mm
-
Core Thickness: 16 mm
-
Top Hose Inlet: 35 mm
-
Bottom Hose Inlet: 33 mm
-
Trans Cooler Pipe, Centre to Centre: 280 mm
What's Included
12 month/20,000km warranty and support from our team.
