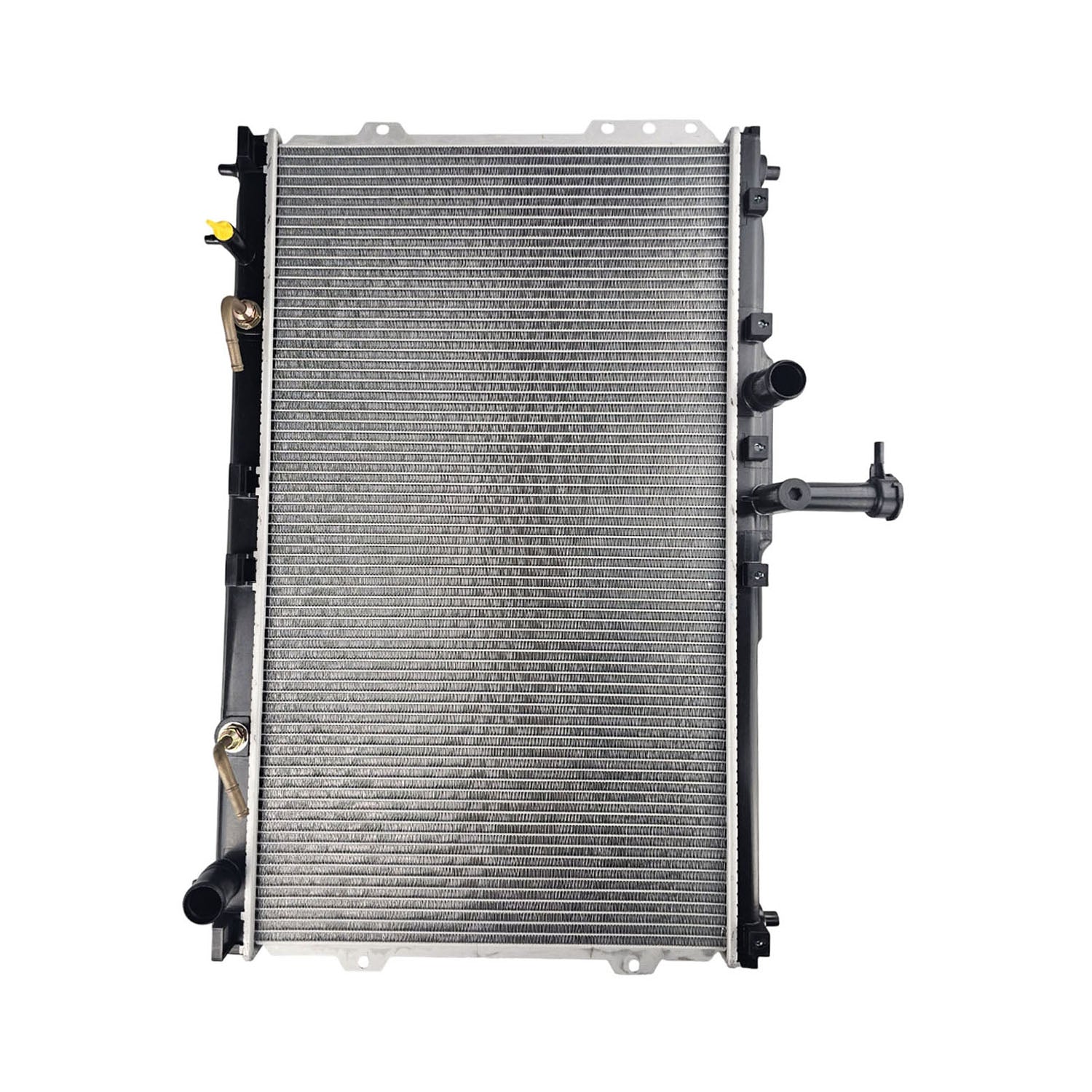

One Brand New Radiator
***Suits models with AUTOMATIC TRANSMISSIONS | Please Check OE Before Fitting | Vehicles prior 2011, check fan bracket mounts***
Basco radiators deliver peak automotive cooling performance through advanced manufacturing, including nitrogen-protected aluminum brazing and high-frequency welded tube machines, ensuring durability and efficiency, with every unit certified to ISO9001:2008 and IATF16949:2009 global quality standards.
Vehicle Fitment
- Hyundai iLoad TQ WBH7R, WBX7R (02/2008~04/2018) 2.4L Petrol G4KG
- Hyundai iLoad TQ WBH7J, WBX7J, WBX7K (02/2008~09/2021) 2.5L Diesel D4CB
- Hyundai iMax TQ WHB1J, WHB1K (11/2007~09/2021) 2.5L Diesel D4CB
- Hyundai iMax TQ WHB1R (02/2008~01/2017) 2.4L Petrol G4KG
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
-
Core Height: 435 mm
-
Core Width: 758 mm
-
Core Thickness: 16 mm
-
Top Hose Inlet: 35 mm
-
Bottom Hose Inlet: 35 mm
-
Trans Cooler Pipe, Centre to Centre: 400 mm
What's Included
12 month/20,000km warranty and support from our team.
