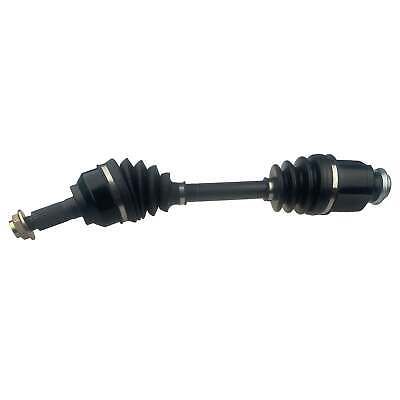

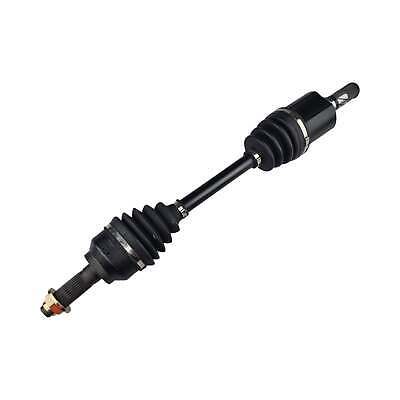

CV Axle Drive Shaft - Pair RH LH Side Automatic FWD
HUB NUT STYLE outer joint
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Mazda 3 BL BK 2.0L LFDE, PE-VPS I4 16V DOHC VVT (04/2009-01/2014) Automatic
Sub-Models Include MAXX, MAXX SPORT, NEO, SP20 SKYACTIV, SP20 SKYACTIV LUXURY
- Mazda 3 BL 2.5L L5 I4 16V DOHC VVT (04/2009-01/2014)
Sub-Models Include SP25
- Mazda 3 BK 2.0L LFDE I4 16V DOHC VVT (2003-05/2006) 2005--->
Sub-Models Include MAXX, MAXX SPORT, NEO
- Mazda 3 BK 2.3L L3 I4 16V DOHC VVT (2003-03/2009) 2005--> Nut Type
Sub-Models Include SP23
Sizing and Specifications
Left CV Shaft
- Length: 635mm
- Spline Count (Wheel Side): 28
- Spline Count (Diff Side): 28
Right CV Shaft
- Length (Compressed): 552mm
- Spline Count Outer/Wheel Side: 28
- Spline Count Inner/Diff Side: 26+2 Blank
- Diff Joint Type: Roller
- Wheel joint Type: Ball
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
