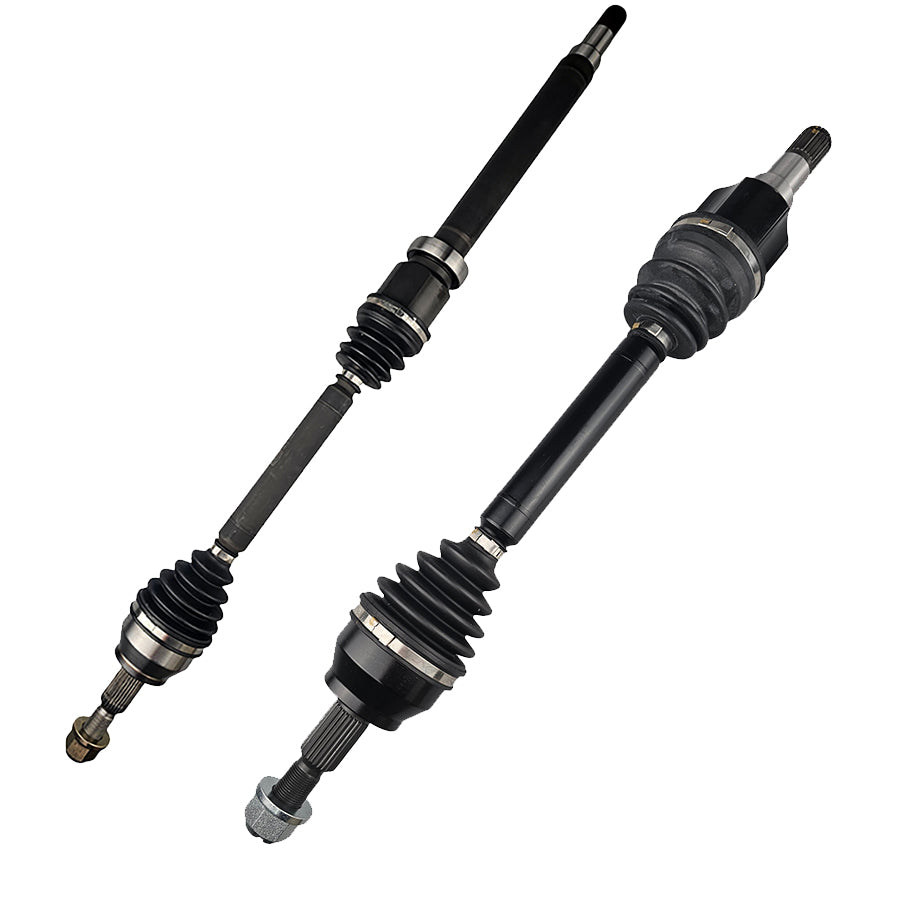

CV Axle Drive Shaft - Pair Front Left and Right Hand Side Manual FWD
Pair kit, manual 5-speed only, please check chassis code
For automatic models please see CVA1568-CVA1569
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Ford Focus LW KXXGC MXXGC 1XXMX 2XXMX 2.0L MGDA Duratec 16V DOHC VVT Manual FWD (07/2011 - 05/2015) Manual 5-Speed Only
Includes Sub-models Sport, Titanium, Trend
- Ford Focus LW KXXGC 2.0L R9DA Ecoboost 16V DOHC VVT Manual FWD (07/2011 - 05/2015) Manual 5-Speed Only
Includes Sub-models ST
Sizing and Specifications

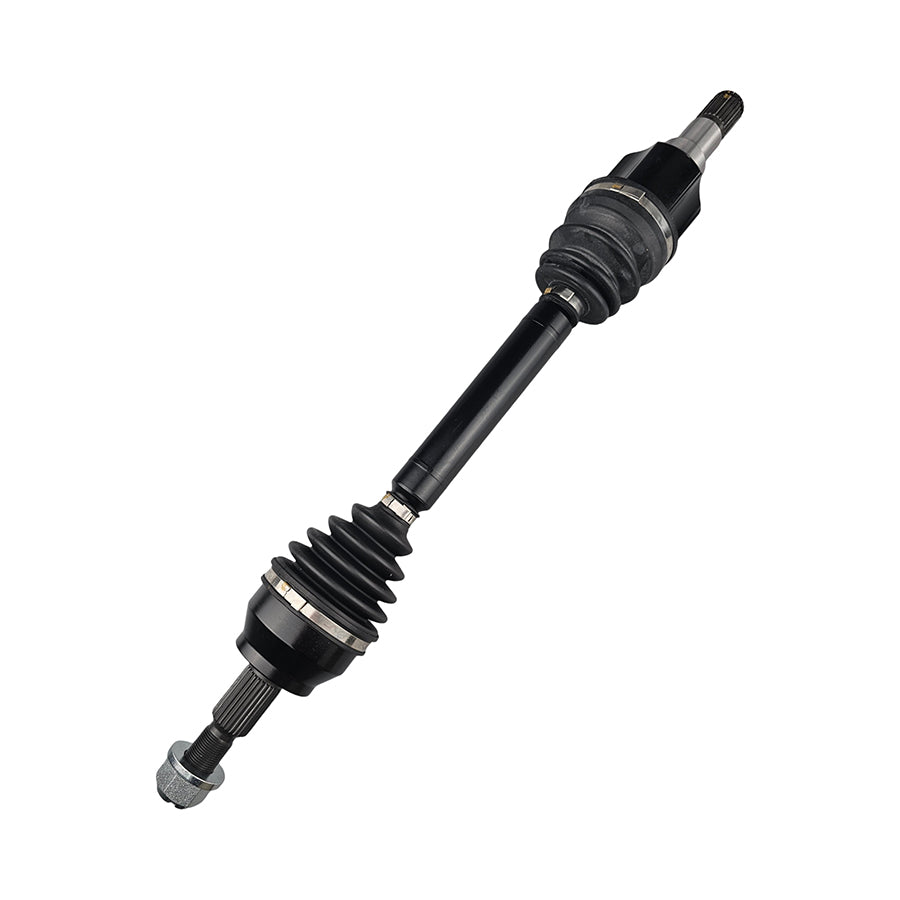

Left CV Axle
- Length (Compressed): 645mm
- Spline Count - Outer/Wheel Side: 27T
- Spline Count - Inner/Diff Side: 34T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball

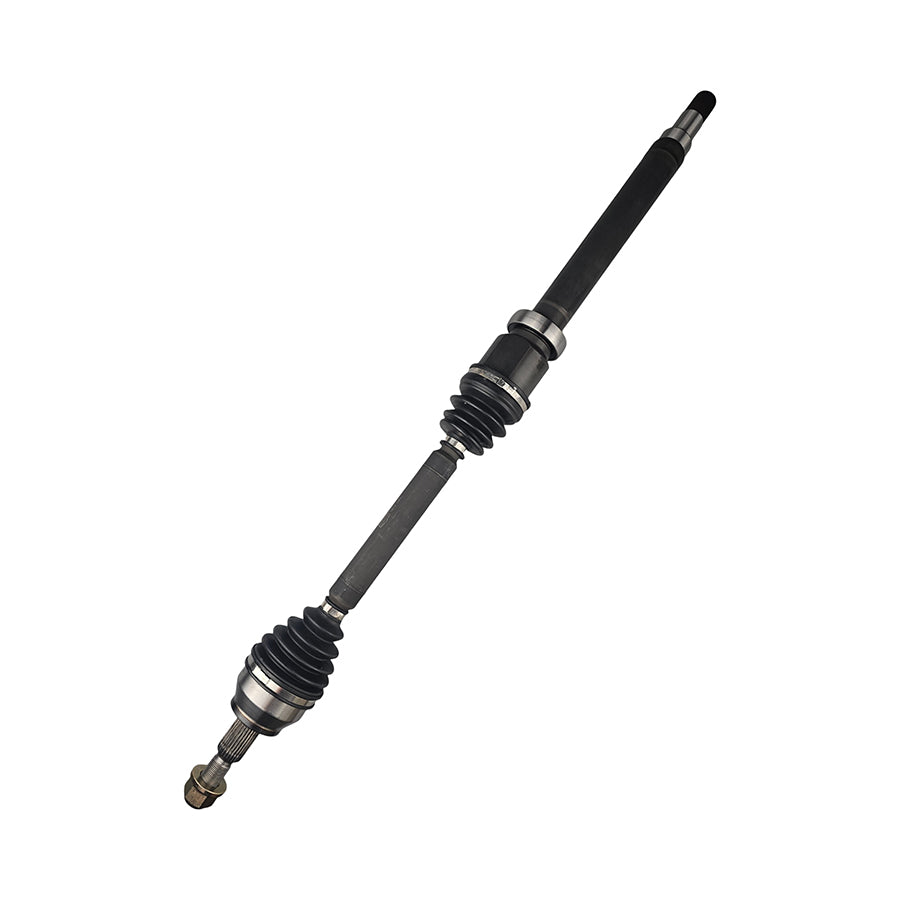

Right CV Axle
- Length (Compressed): 987mm
- Spline Count - Outer/Wheel Side: 27T
- Spline Count - Inner/Diff Side: 34T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
