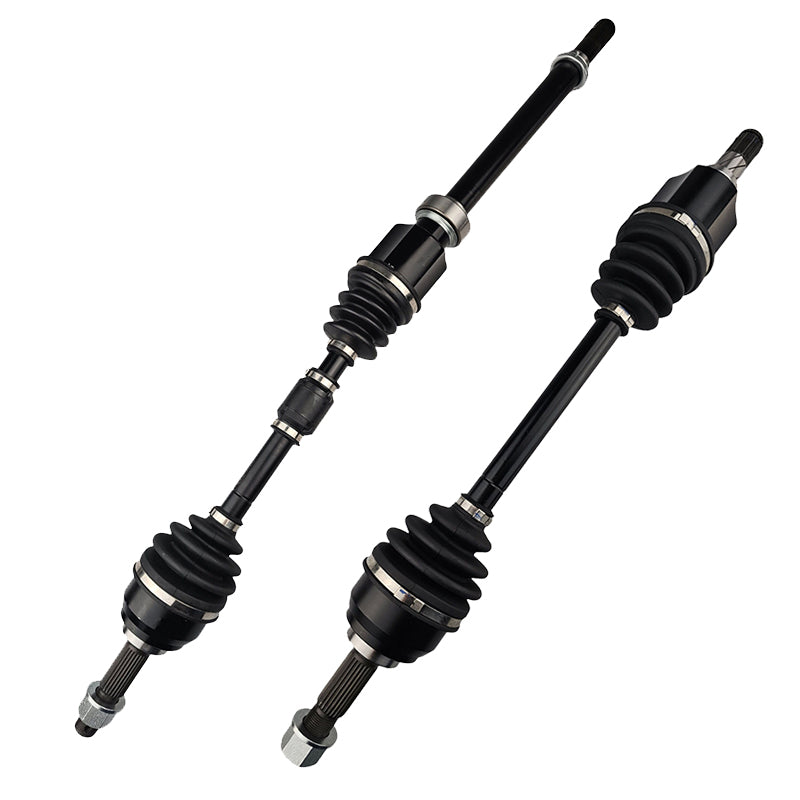

CV Axle Drive Shaft - Pair Left and Right Hand Side Automatic FWD
***Pair left and right side, automatic only, for single kit please see CVA1517 or CVA1518***
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Nissan TIIDA C11 FBAC11 BBAC11 1.8L MR18DE FWD MT AT (02/2006 - 04/2013) Automatic only
Includes Sub-models Q, ST, ST Plus, ST-L, ST-L Plus, TI
Sizing and Specifications
Left Drive Shaft CVA1517
- Length (Compressed): 641mm
- Spline Count - Outer/Wheel Side: 25T
- Spline Count - Inner/Diff Side: 25T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut Style: M22 x 1.5
Right Drive Shaft CVA1518
- Length (Compressed): 910mm
- Spline Count - Outer/Wheel Side: 25T
- Spline Count - Inner/Diff Side: 25T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Bearing Outer Diameter on Extension Shaft: 62mm
- Extension Shaft Bearing Width: 20mm
- Extension Shaft Length From Outside of Bearing: 334mm
- Hub Nut Style: M22 x 1.5
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
