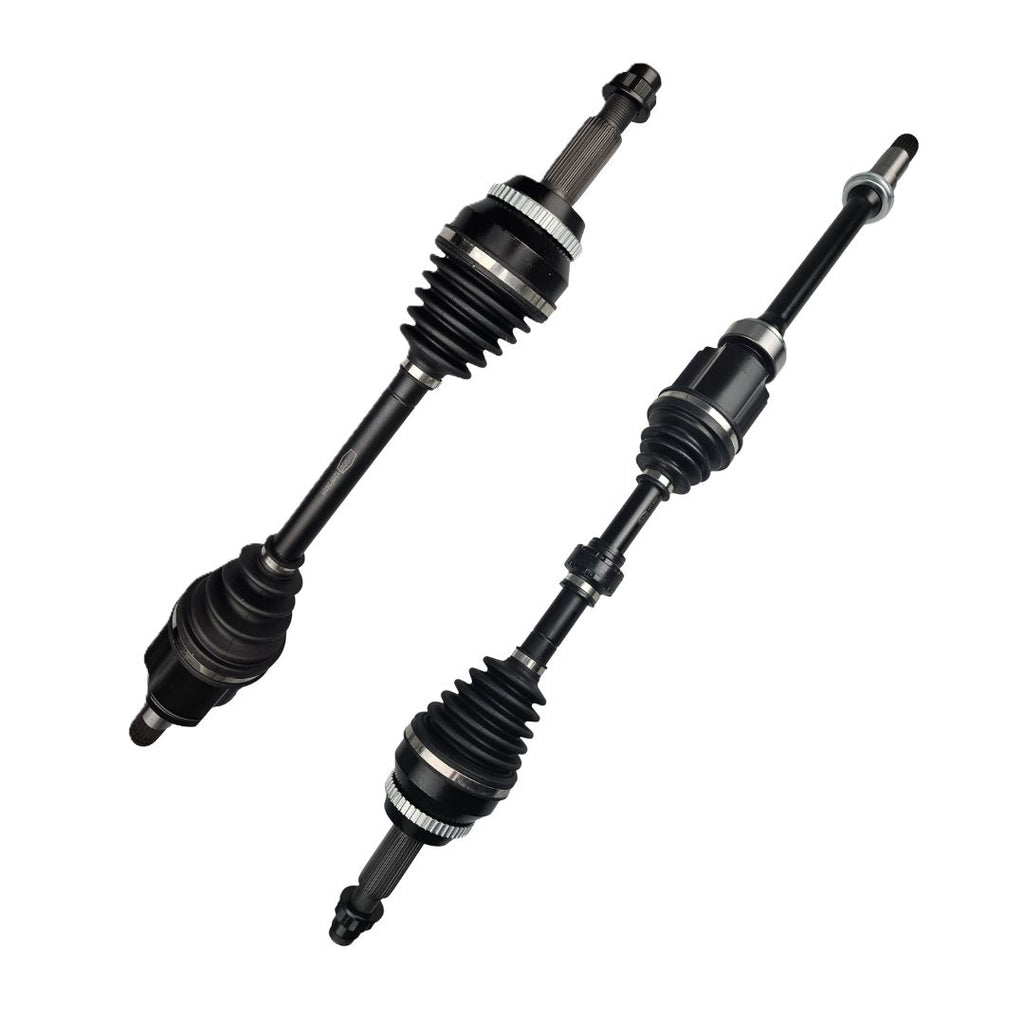

Pair CV Axle Drive Shaft - Left and Right Hand Side Automatic FWD
Vehicle Fitment
Models Including Sub Models:
- Toyota Kluger, Series: GSU40R Engine: 3.5L 2GRFE V6 24V DOHC VVT 08/2007~02/2014
- Sub Models: Altitude, KX-R, KX-S & Grande
Sizing and Specifications
Left CV Shaft
- Length (Compressed) 673mm
- Spline Count - Outer/Wheel Side 30T
- Spline Count - Inner/Diff Side 24T
- ABS Ring Teeth: 48T
Right CV Shaft
- Length (Compressed): 992mm
- Spline Count - Outer/Wheel Side: 30T
- Spline Count - Inner/Diff Side: 24T
- ABS Ring Teeth: 48
- Outboard Joint Type: Ball
- Inboard Joint Type: Tripod
- Bearing Outer Diameter on Extension Shaft: 72mm
- Extension Shaft Length From Inside of Bearing Face: 354mm
- Extension Shaft Bearing Width: 23mm
- Hub Nut Style: M22 x 1.5
What's Included
2 x CV Shaft
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
