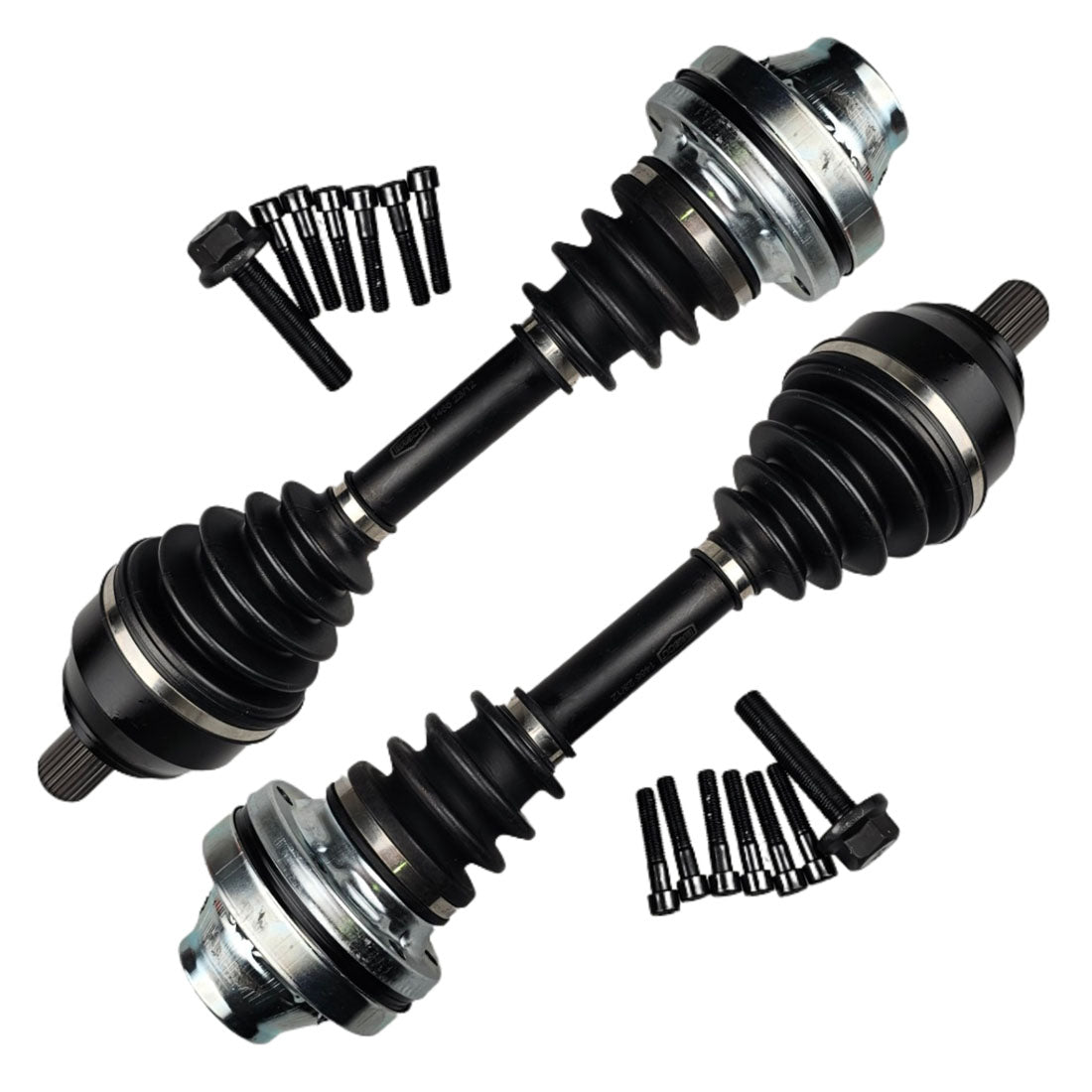

Brand New Left and Right Front CV Drive Shaft
***Suits Standard Height. | When fitting CVA1465 to a lifted VW Amarok, it is critical to check the CV shaft
operating
angle, particularly at the inner boot. Excessive CV shaft angles can cause inner boot contact and lobe rub, placing
additional

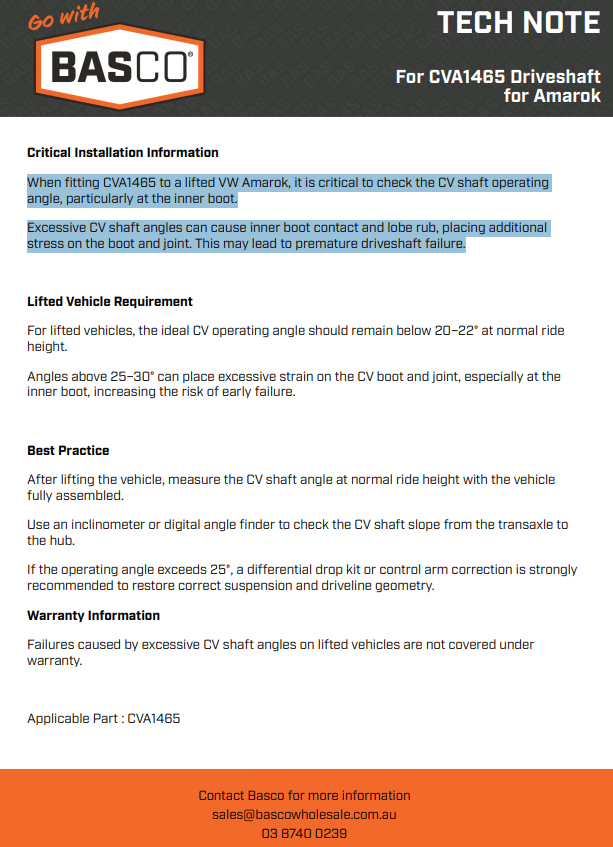

stress on the boot and joint. This may lead to premature driveshaft failure. Check the Images for TECH
NOTE***
Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene
dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles
and speeds without friction, even at high revolutions.
Vehicle Fitment
-
Volkswagen
- Amarok TDI400 (05/2010~01/2013 – CDCA – 2.0L Diesel): 2H — Standard Height
- Amarok TDI 4motion (2012~2013 – CDBA – 2.0L Diesel): 2H — Standard Height
- Amarok TDI 4motion (2012~2013 – CNFA – 2.0L Diesel): 2H — Standard Height
- Amarok TDI420 (01/2012~06/2022 – CSHA – 2.0L Diesel): 2H — Standard Height
- Amarok TDI400 (01/2013~06/2022 – CNEA – 2.0L Diesel): 2H — Standard Height
- Amarok TDI 4motion, TDI550 (2016~2022 – DDXC – 3.0L Diesel): 2H — Standard
Height
- Amarok TDI580 (09/2018~07/2022 – DDXE – 3.0L Diesel): 2H — Standard Height
- Amarok TDI500 CORE (07/2019~07/2022 – DDXD – 3.0L Diesel): 2H, 2HA — Standard
Height
⚠️ Important Notes for You: We strongly advise using the Australian Number Plate lookup to confirm
fitment.
What's Included
- 2 x CV Shaft (Left and Right)
Sizing and Specifications
-
Length (Extended): 470 mm
-
Spline Count - Outer/Wheel Side: 28
-
Inboard Joint Type: Plunging Cross-Groove
-
Outboard Joint Type: Ball
Backed by our 12 month/20,000km warranty and technical support.
