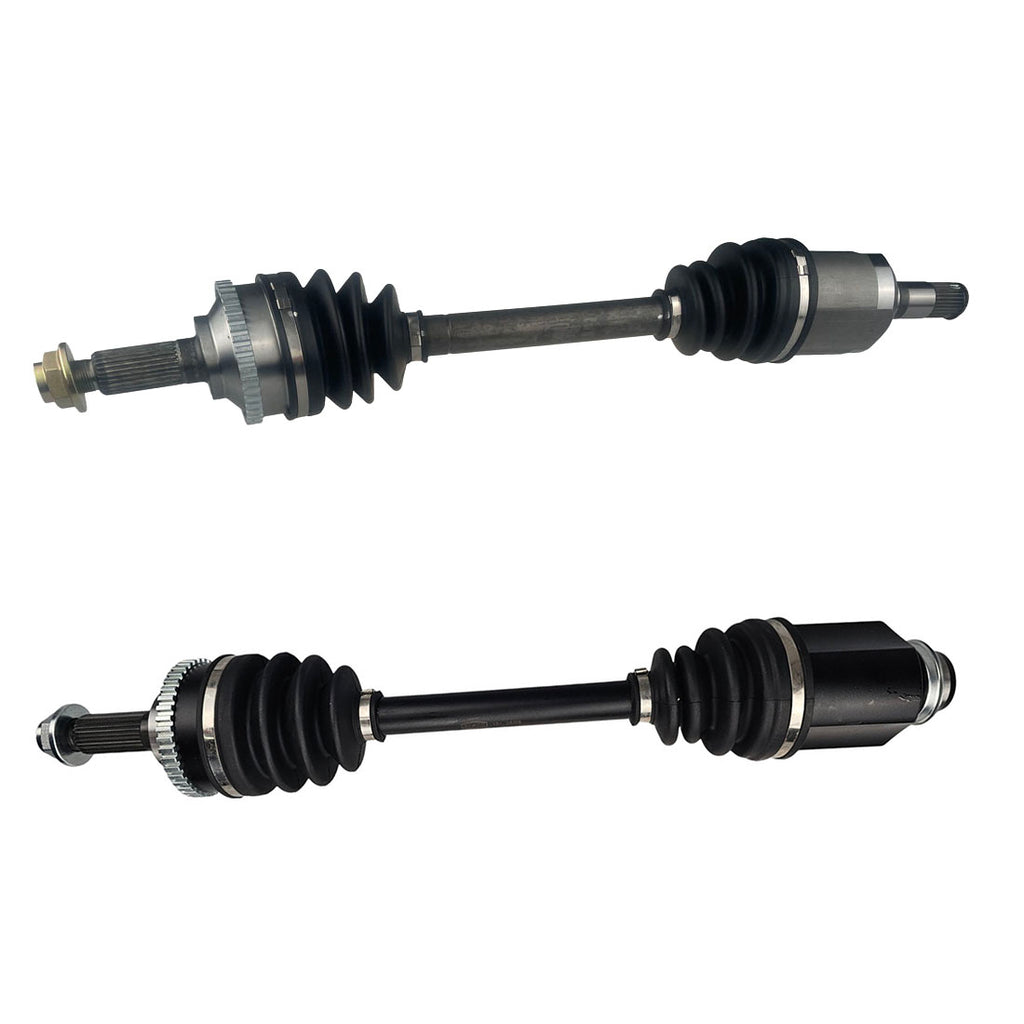

CV Axle Drive Shaft - Pair Front Left and Right Hand Side Manual Automatic FWD 4WD/AWD
Pair Front Left and Right Hand Side
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Mazda Atenza GG GY 2.3L L3VE L3 16V DOHC VVT FWD (05/2002 - 01/2008)
Includes Sub-models 23C, 23EX, 23S, 23SS, 23Z, Sports, 25E, 25EX, Classic, Luxury, Luxury Sports, Limited
- Mazda Atenza GG 2.3L L3VDT 16V DOHC VVT Turbo I/C Manual 4WD AWD (06/2005 - 01/2008)
Includes Sub-models MazdaSpeed, MazdaSpeed 4WD, MPS
Sizing and Specifications
Left CV Shaft CVA1153
- Length (Compressed): 652.7mm
- Spline Count - Outer/Wheel Side: 28T
- Spline Count - Inner/Diff Side: 28T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- ABS Ring Teeth: 44
- Hub Nut Style: M22 x 1.5
Right CV Shaft CVA1151
- Length (Compressed): 595mm
- Spline Count - Outer/Wheel Side: 28T
- Spline Count - Inner/Diff Side: 28T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- ABS Ring Teeth: 44
- Hub Nut Style: M22 x 1.5
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
