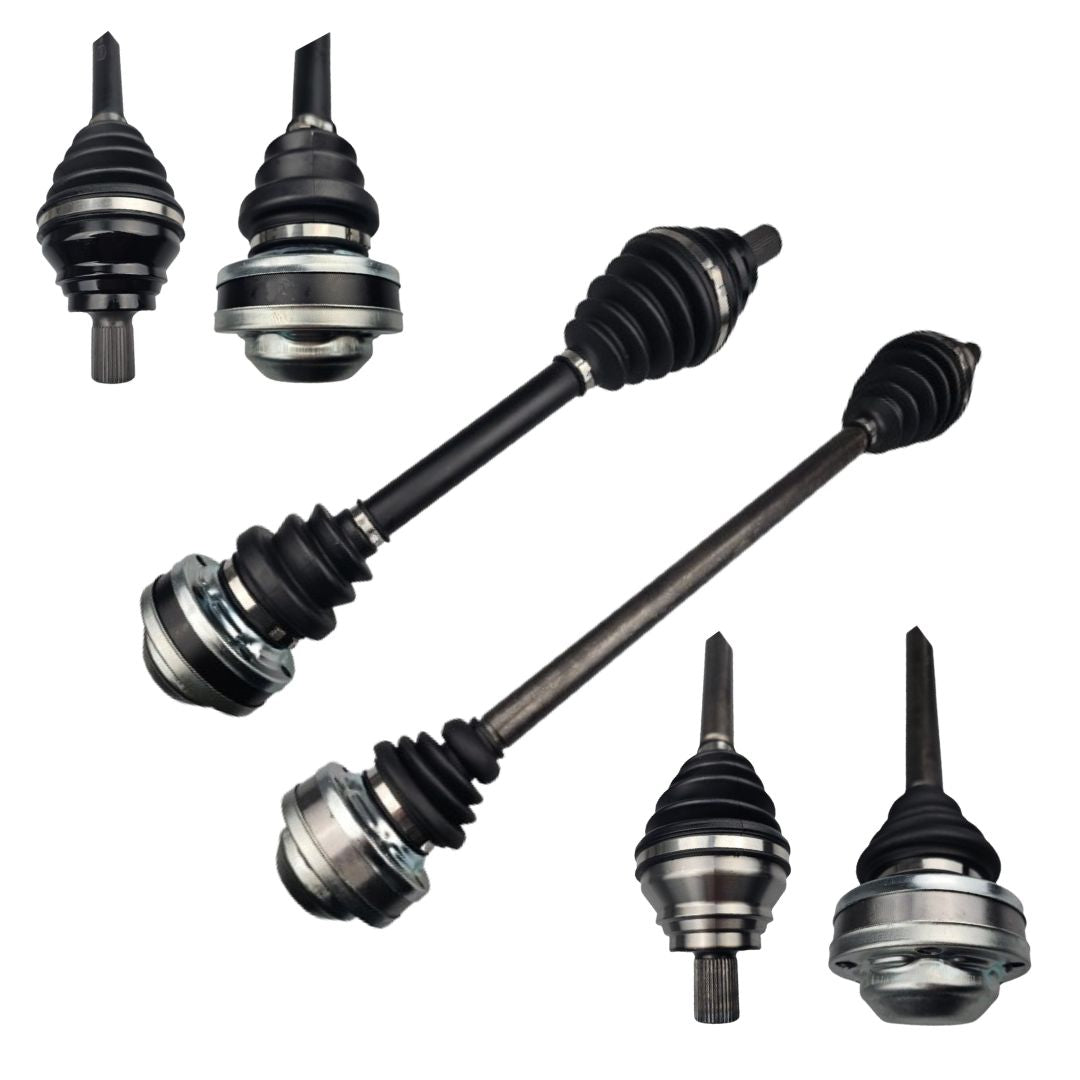

CV Axle Drive Shaft - Left and Right Hand Side DCT Bolt-on Round Type
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
***PLEASE CHECK THE ENGINE CODE OF YOUR VEHICLE***
Vehicle Fitment
- Volkswagen Golf MK6 1.4L CAVD, CTHD (03/2009-01/2015) DCT
Sub-Models Include 118 TSI COMFORTLINE, 118 TSI
- Volkswagen Golf MK6 1K 1.4L CAXA FWD MT (11/2008 - 05/2011) 7 Speed DCT
Includes Sub-models 90 TSI Trendline
- Volkswagen Golf MK6 1.4L CAXA (02/2010-05/2011) DCT
- Skoda Octavia 1Z 1.4L CAXA FWD MT (09/2010 - 06/2013) DCT
Includes Sub-models 90 TSI Comfortline
Sizing and Specifications
Left
- Length (Compressed): 525mm
- Spline Count - Outer/Wheel Side: 36T
- Inboard Joint Type: Bolt On - 94mm Centre to Centre
- Outboard Joint Type: Ball
- Inboard Joint Type: Ball
- Hub Bolt Style: M16 x 1.5
Right
- Length (Compressed): 786mm
- Spline Count - Outer/Wheel Side: 36T
- Inboard Joint Type Ball On: 94mm Centre to Centre
- Outboard Joint Type: Ball
- Inboard Joint Type: Ball
- Hub Bolt Style: M16 x 1.5
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
