Description

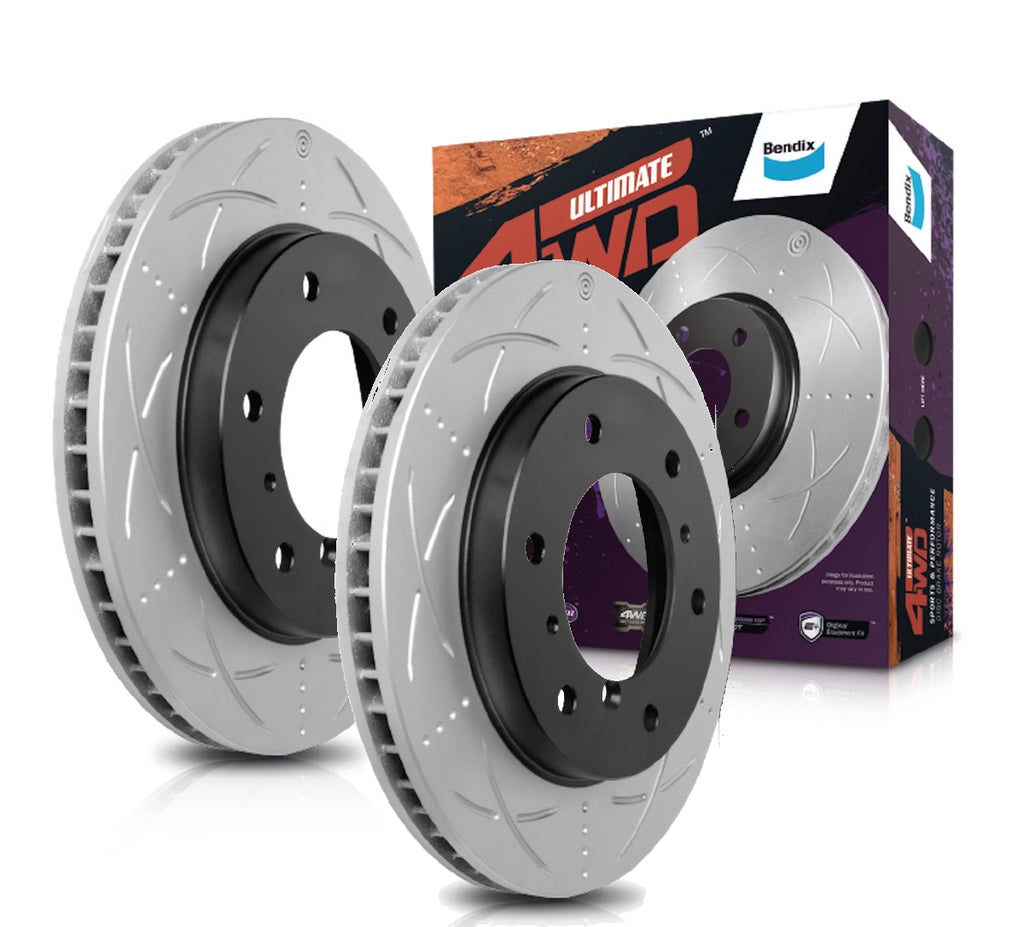

Two Bendix Ultimate 4WD Dimpled & Slotted Rotors
Bendix Ultimate 4WD™ Disc Brake Rotors incorporate improved noise dampening characteristics and heat dissipation by utilising 4WD Metallurgy™.
The formulation increases rotor strength at elevated temperatures, while the high wear resistance from this increased strength increases rotor durability, reducing the chance of warping when very hot.
Fits
- Toyota Hilux YN106R YN106 03/1988~?/1992 2.2L Petrol 4Y *** Check OD
- Toyota Hilux LN106R LN106 09/1988~11/1997 2.8L Diesel 3L *** Check OD
- Toyota Hilux RN105R RN104/RN105 10/1988~11/1997 2.4L Petrol 22R *** Check OD
- Toyota Landcruiser HJ47R HJ47/HJ60R HJ60/LWB HJ75R HJ75 10/1980~04/1990 4.0L Diesel 2H
- Toyota Landcruiser FJ60R FJ60/FJ61R FJ61 11/1980~03/1984 4.2L Petrol 2F
- Toyota Landcruiser SWB BJ42R BJ42 10/1980~10/1984 3.4L Diesel 3B
- Toyota Landcruiser BJ60R BJ60/BJ61R BJ61/BJ73R BJ73/BJ75R BJ75 08/1980~12/1989 3.4L Diesel 3B
- Toyota Landcruiser Turbo BJ74R BJ74 10/1985~01/1990 3.4L Diesel 13BT
- Toyota Landcruiser HJ61R HJ61 02/1986~04/1990 4.0L Diesel 12HT
- Toyota Landcruiser FJ73R FJ73/FJ75R FJ75 1985~10/1992 4.0L Petrol 3F
- Toyota Landcruiser Resin Top PZJ73R PZJ73 03/1990~02/1991 3.5L Diesel 1PZ
- Toyota Landcruiser HZJ73R HZJ73/HZJ75R HZJ75 01/1990~08/1999 4.2L Diesel 1HZ
- Toyota Landcruiser FZJ75R FZJ75 11/1992~11/1999 4.5L Petrol 1FZFE
Specifications and Sizing
- Outer Diameter: 302mm
- Height: 48mm
- Thickness (Max): 20mm
- Thickness (Min): 19mm
- Centre Diameter: 100mm
- Studs & PCD: 6 x 139.7
- Weight: 6.4kg
- Coating: SwiftFit™
Diamond Tip Slot
Specifically designed slots and V-shaped dimples to more efficiently expel gasses, dirt and water.
The balanced pattern has evolved from racing, and allows you to feel absolute control in hard braking situations.
The specifically aligned slots and V-shaped dimples keep your brakes primed and ready for the next corner. Bendix Ultimate 4WD™ Disc Brake Rotors use dimples, rather than holes, at the precise depth to give greater braking power, while still retaining the strength of a solid rotor.
SwiftFit™ Coating
Bendix Ultimate 4WD™ Disc Brake Rotors feature SwiftFit™ surface protection that allows the rotor to be fitted immediately without the need to clean anti-rust oil or coating from the surface. SwiftFit™ surface protection prevents corrosion of the rotor resulting in an unlimited shelf life, longer fault free service and a rust free rotor hat which is often visible behind open alloy wheels. Frequently with uncoated conventional rotors, corrosion can impact the rotor mating with the wheel hub face over time and create a vibration that will feel like a wheel imbalance.
SwiftCheck™
A market-first innovation for Australia and New Zealand, SwiftCheck™ provides a fast and convenient visual indicator of rotor wear, letting motor trade professionals estimate remaining rotor life without the need to measure rotor thickness, allowing them to decide on part replacement. The feature also provides added convenience and peace of mind for vehicle owners, who can inspect the rotors themselves and take appropriate action if needed, such as when preparing for an extended driving holiday or similar.
SwiftCheck™ is a machined feature that creates circular grooves on the rotor surface that narrow and disappear progressively as the rotor wears. Once the wear indicator displays a singular dot in the centre, this indicates it’s time for the rotor to be changed.
