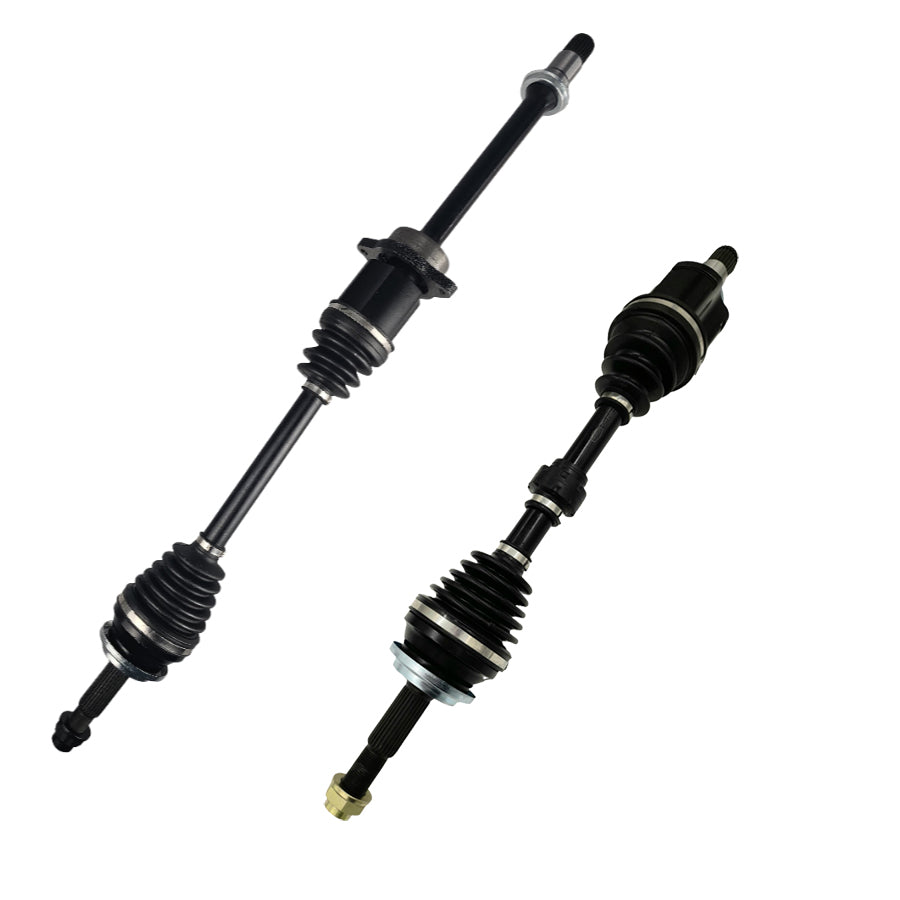

Two New CV Joint Axle Shafts - Right- and Left-Hand Side - ****AUTOMATIC ONLY ****
SPECIFICATIONS
Left Hand Side
- Spline Count (Wheel Side): 26 T
- Spline Count (Diff Side): 24T
- Length (Compressed): 656 MM
- Inboard Joint Type: Tripod
- Hub Nut: M22 x 1.5
Right Hand Side
- Spline Count (Wheel Side): 26 T
- Spline Count (Diff Side): 24 T
- Length Compressed: 977 MM
- Outboard Joint Type: Ball
- Hub Nut: Tripod
- Extension Shaft Mount Holes: M10 X 1.25 @113.8 MM Centre to Centre
- Extension Shaft Length from Inside: 364 MM
- Inner Joint Seal: 40 MM
- Extension Shaft Seal Dust Cover: 62.5 MM
- Extension Shaft Inside of Dust Cover: 83 MM
What You Get
2 x CV Shafts
Built tough to OEM specifications using heat-treated chrome steel, maximising product life. High-quality Neoprene dust boots and stainless-steel clamps help to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
What You Really Get
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty.
