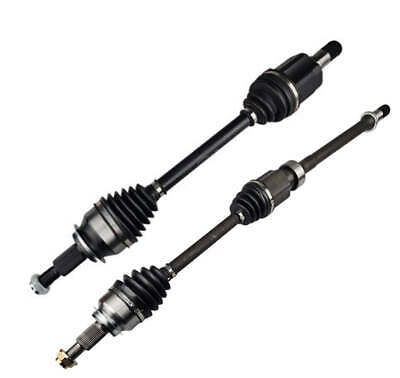

Pair CV Axle Drive Shaft - Front Left and Right Hand Side Automatic Manual FWD
Pair kit
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Mazda CX-5 KE KF KEEFW KF2W7 KEEAW 2.0L PE-VPS FWD (02/2012 - 2024) 2.0L Models Only
Includes Sub Models MAXX, MAXX SAFETY, MAXX SPORT, MAXX SPORT SAFETY
GLX, GSX, GRAND TOURING
Sizing and Specifications
Left CV Shaft
- Length (Compressed) : 652mm
- Spline Count Outer/Wheel Side : 31
- Spline Count Inner/Diff Side : 31
Right CV Shaft
- Length (Compressed) : 1020mm
- Spline Count Outer/Wheel Side : 31
- Spline Count Inner/Diff Side : 31
- Extension Shaft Bearing OD: 70mm
- Extension Shaft Bearing Width: 25mm
- Extension Shaft Length From Outside of Bearing: 415mm
- Ext Shaft Length, Outside of Tin Dust Cover to End: 88mm
- Outboard Joint Type: Ball
- Inboard Joint Type: Tripod
- Hub Nut Style: M22 x 1.5
What's Included
- 2 x CV Shaft (Left and Right)
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
