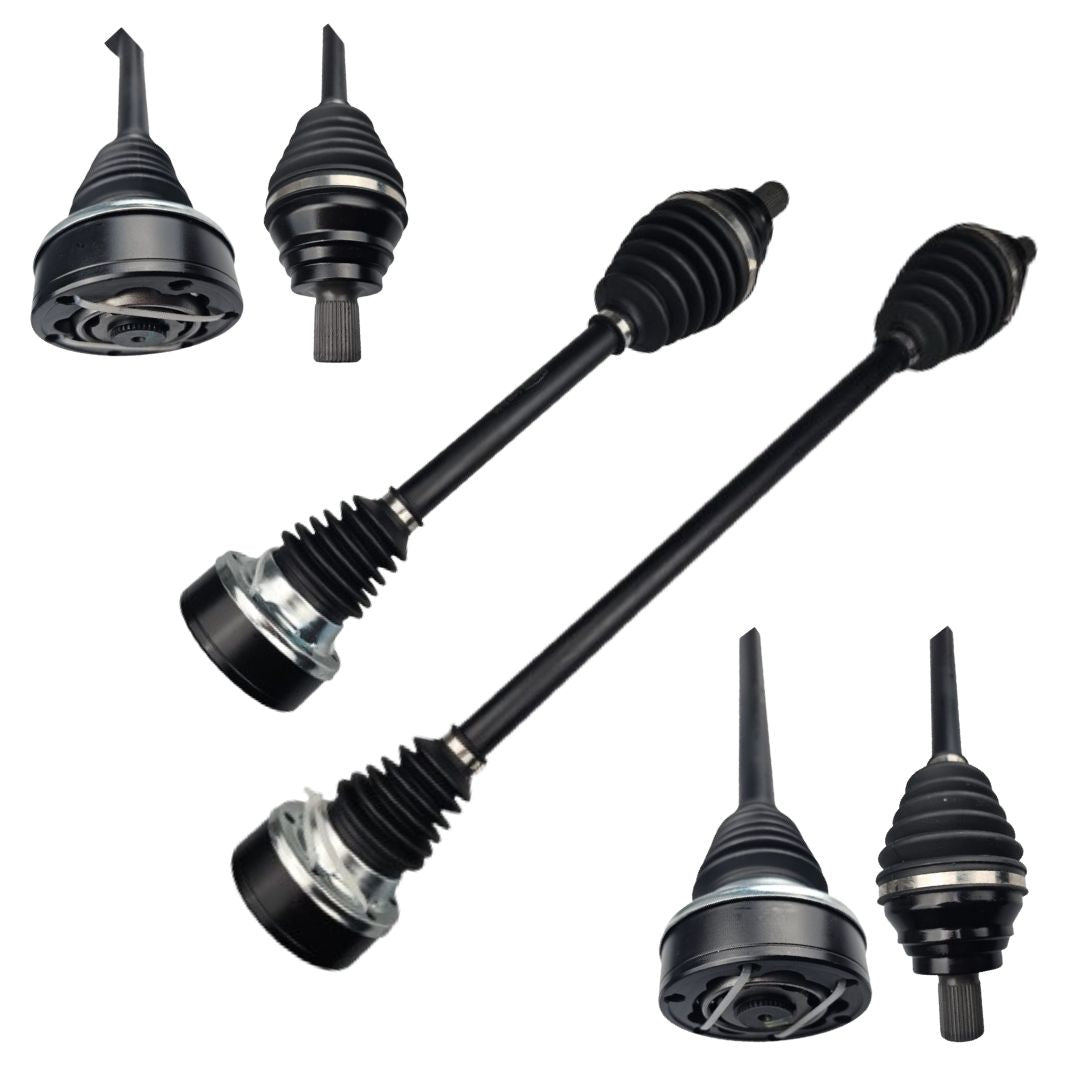

CV Axle Drive Shaft - Left and Right Hand Side DCT Manual Bolt-on Round Type
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
***PLEASE CHECK THE ENGINE CODE OF YOUR VEHICLE***
Vehicle Fitment
- Audi A3 8P 1.4L CAXC FWD DCT (06/2011 - 05/2013) DCT, Vin: 8P9A000001
Includes Sub-models Sportback 1.4 TFSI Attraction
-
Volkswagen Golf MK6 1K 1.4L CAXA FWD MT DCT (05/2007 - 03/2013) **Hatchback** Up to-11/2008 Manual // 06/2011-Onwards 7 Speed DCT
Includes Sub-models 90 TSI Trendline
-
Volkswagen Golf MK6 1K 1.4L CAVD CTHD FWD MT DCT (03/2009 - 01/2015) Manual
Includes Sub-models 118 TSI, 118 TSI Comfortline
-
Volkswagen Golf MK6 1K 1.2L CBZB FWD MT DCT (06/2009 - 11/2012) 7 Speed DCT or 6 Speed Manual
Includes Sub-models 77 TSI
-
Volkswagen Jetta 1K 1.4L CAVD FWD MT DCT (02/2009 - 10/2010) 6 Speed Manual
- Skoda Octavia 1Z 1.4L CAXA FWD MT DCT (09/2010 - 06/2013) Manual
Includes Sub-models 90 TSI
- Skoda Yeti 5L 1.2L CBZB FWD MT DCT (10/2011 - 06/2015) Manual & DCT
Includes Sub-models 77 TSI, Active
Sizing and Specifications
Left
- Length (Compressed): 535mm
- Spline Count - Outer/Wheel Side: 36T
- Inboard Joint Type: Bolt On - 86mm Centre to Centre
- Hub Bolt Style: M16 x 1.5
Right
- Length (Compressed): 801mm
- Spline Count - Outer/Wheel Side: 36T
- Inboard Joint Type: Bolt On - 86mm Centre to Centre
- Hub Bolt Style: M16 x 1.5
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
