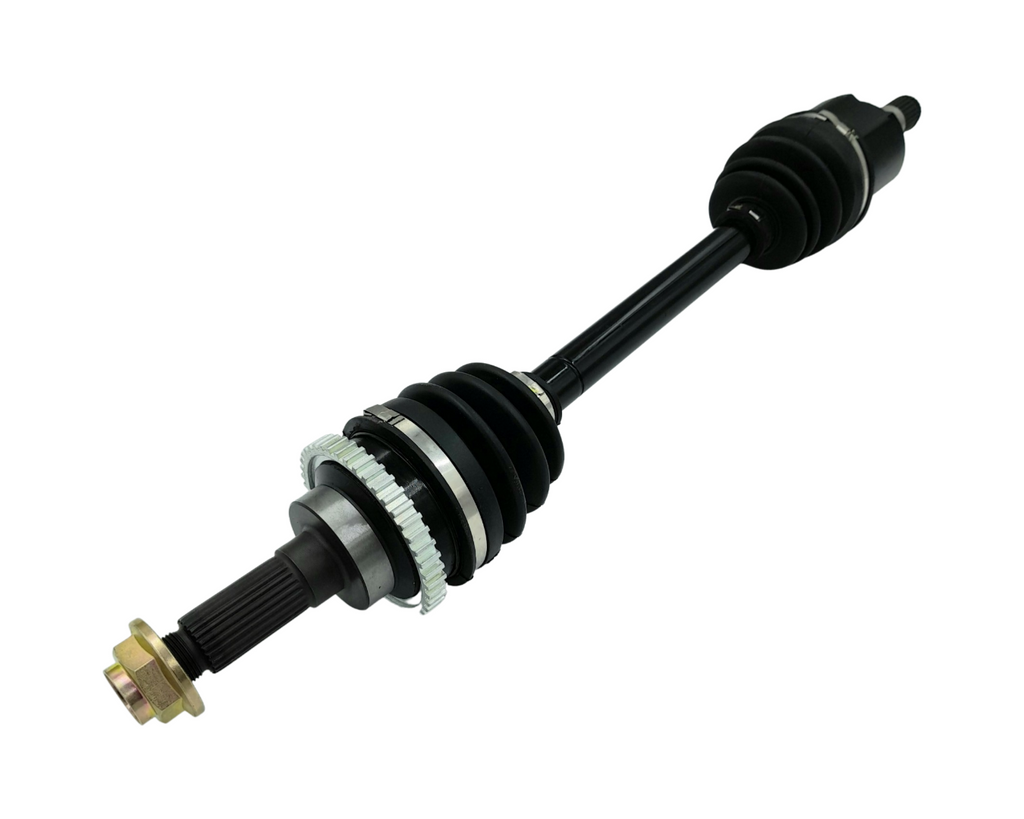

CV Axle Drive Shaft - Left Hand Side Manual & Automatic Transmission FWD
***Note: Please Check the corresponding note per Vehicle, Ford Laser KJ suits both Manual and Automatic Transmission***
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Mazda 323 BJ 1.6L ZM FWD MT (09/1998 - 05/2002) Manual
Sub-Models Include PROTEGE, PROTEGE SHADES, ASTINA, ASTINA SHADES
- Mazda 323 BA 1.8L BPZE FWD AT (07/1994 - 09/1998) Auto
Sub-Models Include PROTEGE, PROTEGE SHADES, ASTINA, ASTINA SHADES
- Mazda 323 BJ 1.8L FPDE FWD MT (09/1998 - 12/2003) Manual
Sub-Models Include PROTEGE, PROTEGE 2000 LIMITED EDITION, PROTEGE PLATINUM EDITION, PROTEGE SHADES, ASTINA, ASTINA 40TH ANNIVERSARY, ASTINA SHADES
- Mazda 323 BJ 2.0L FSDE FWD MT (02/2001 - 12/2003) Manual
Sub-Models Include PROTEGE SP20, PROTEGE SPORTS EDITION, ASTINA, ASTINA SP20
- Mazda Familia BJ 2.0L FSZE FWD MT (08/1999 - 03/2004) Manual
Sub-Models Include WAGON SPORT 2.0, SPORT 20
- Mazda Premacy CP 1.8L FP FWD MT (1999 - 05/2002) Manual
- Mazda Premacy CP 2.0L FSDE FWD MT ( 04/2002 - 06/2003) Manual
- Ford Laser KN, KQ 1.6L ZM FWD MT (09/1999 - 08/2002) Manual
Sub-Models Include LXI, R
- Ford Laser KN, KQ 1.8L FP FWD MT (03/1999 - 08/2002) Manual
Sub-Models Include GLXI, SR
- Ford Laser KQ 2.0L FSDE FWD MT (04/2001 - 08/2002) Manual
Sub-Models Include SR2
- Ford Laser KJ, KL 1.6L B6 FWD MT AT (10/1994 - 03/1999) Suits Both
Sub-Models Include LXI, LXI LIATA, LYNX
- Ford Laser KJ 1.8L BPZE FWD MT AT (10/1994 - 12/1998) Suits Both
Sub-Models Include GHIA, GLXI, LXI, LYNX, GHIA LIATA, GLXI LIATA, LXI LIATA
- Eunos 30X 1.8L K8 FWD AT (11/1992 - 05/1996) Auto
Sub-Models Include LEATHER, LUXURY, SPORT
Sizing and Specifications
- Length (Compressed): 633mm
- Spline Count - Outer/Wheel Side: 26T
- Spline Count - Inner/Diff Side: 24T

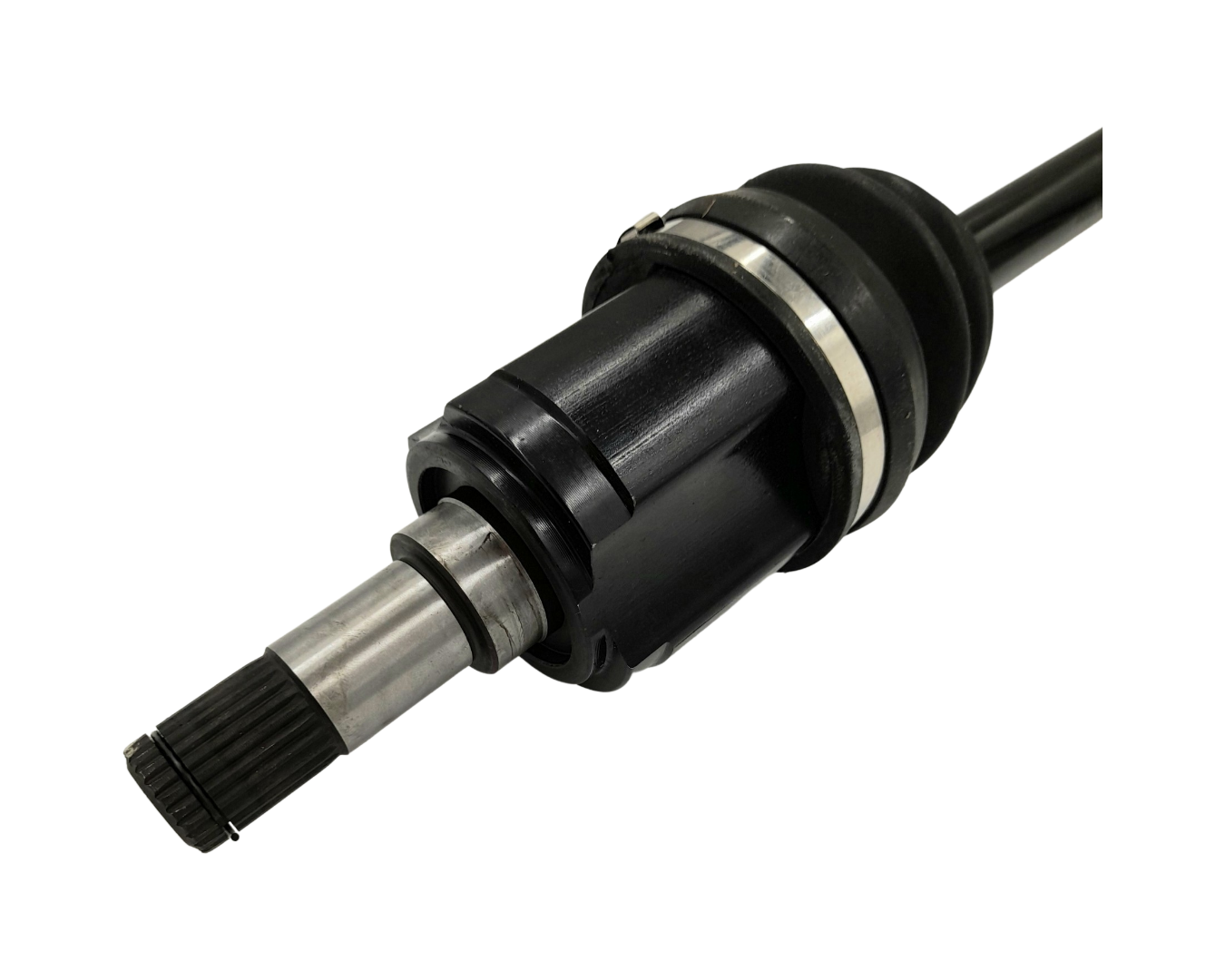

- Inboard Joint Type: Tripod

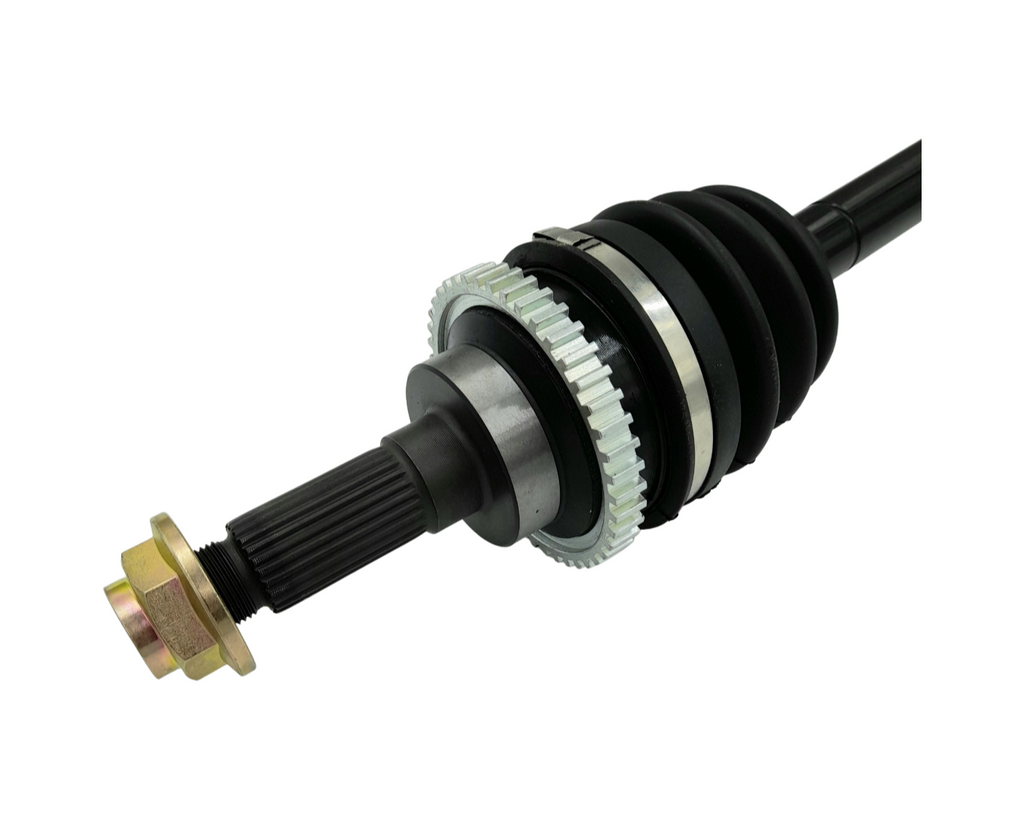

- Outboard Joint Type: Ball
- ABS Ring Teeth: 44
- Hub Nut: M22 x 1.5
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
