TCKWP199
POWERGRIP KIT + WATERPUMP
Water Pump & Timing Belt Kit
Thanks to Gates Timing Component Kits with Water Pumps, you have all the elements necessary for a complete overhaul in one package, fit for the application.
- Timing belt driven water pumps should always be replaced at the same time as the timing belt.
- Water pumps are highly efficient and durable. All pumps are engineered to OE specifications for look, fit and performance.
- No need to order loose parts any more: the metal components, timing belt(s), water pump and installation instructions come in one handy and compact package.
Product Specifications
Timing Belt
| Material |
HNBR (hydrogenated nitrile butadiene rubber)
|
|
Number of Teeth
|
163
|
|
Width [mm]
|
26,7
|
|
Tooth Pitch [mm]
|
9,525
|
|
Length [mm]
|
1553
|
PowerGrip Guide Pulley
|
Surface
|
Smooth
|
|
Material
|
Metal
|
|
Outer Diameter [mm]
|
58
|
|
Inner Diameter [mm]
|
12
|
|
Width [mm]
|
29
|
Water Pump
|
Housing Type
|
without housing
|
|
Material
|
Aluminium Cast
|
|
Engine Timing
|
Timing Belt
|

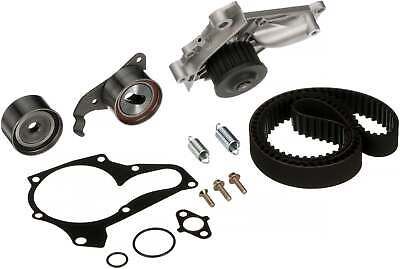

Kit contains
| T199 |
Timing Belt
|
1
|
|
T41067
|
Tensioner, timing belt
|
1
|
|
T42025
|
Deflection/Guide Pulley, timing belt
|
1
|
|
GOSK199
|
Shaft Seal Set, engine
|
1
|
|
9010510032
|
Bolt
|
1
|
|
GG120
|
Shaft Seal Set, engine
|
1
|
|
GWP3047
|
Water Pump, engine cooling
|
1
|
|
SPG1992
|
Spring
|
1
|
