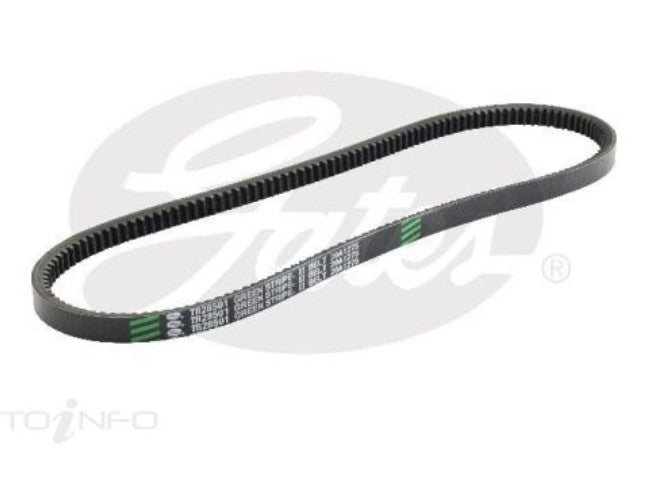

V-Belt
Specifically designed for heavy-duty truck, bus and off-road equipment applications. Absorbs normal shock loads without damage to belt. Its deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool. Special notch design resists cracking while providing tensile member support during operation.
- Special tensile cords give high stretch resistance.
- Oil and heat-resistant construction throughout.
- Meets SAE J636b and SAE J637 specifications.
Gates V-Belts Are Superior in Performance.
- Fibre loaded rubber material provides excellent heat and wear resistance.
- Molded notch construction provides reduced bending stresses around small pulleys.
- Form grinding provides a smooth contact point between the belt surface and the pulleys.
Product Specifications
| Article status |
Normal |
| Tensile Cord Material |
Polyester |
| Belt Material |
EPDM(ethylene propylene diene Monomer (M-class) rubber) |
| Colour |
black |
| Width [mm] |
20 |
| Length [mm] |
1276 |
| Outer Length [mm] |
1291 |
| Rotation angle [°] |
36 |
