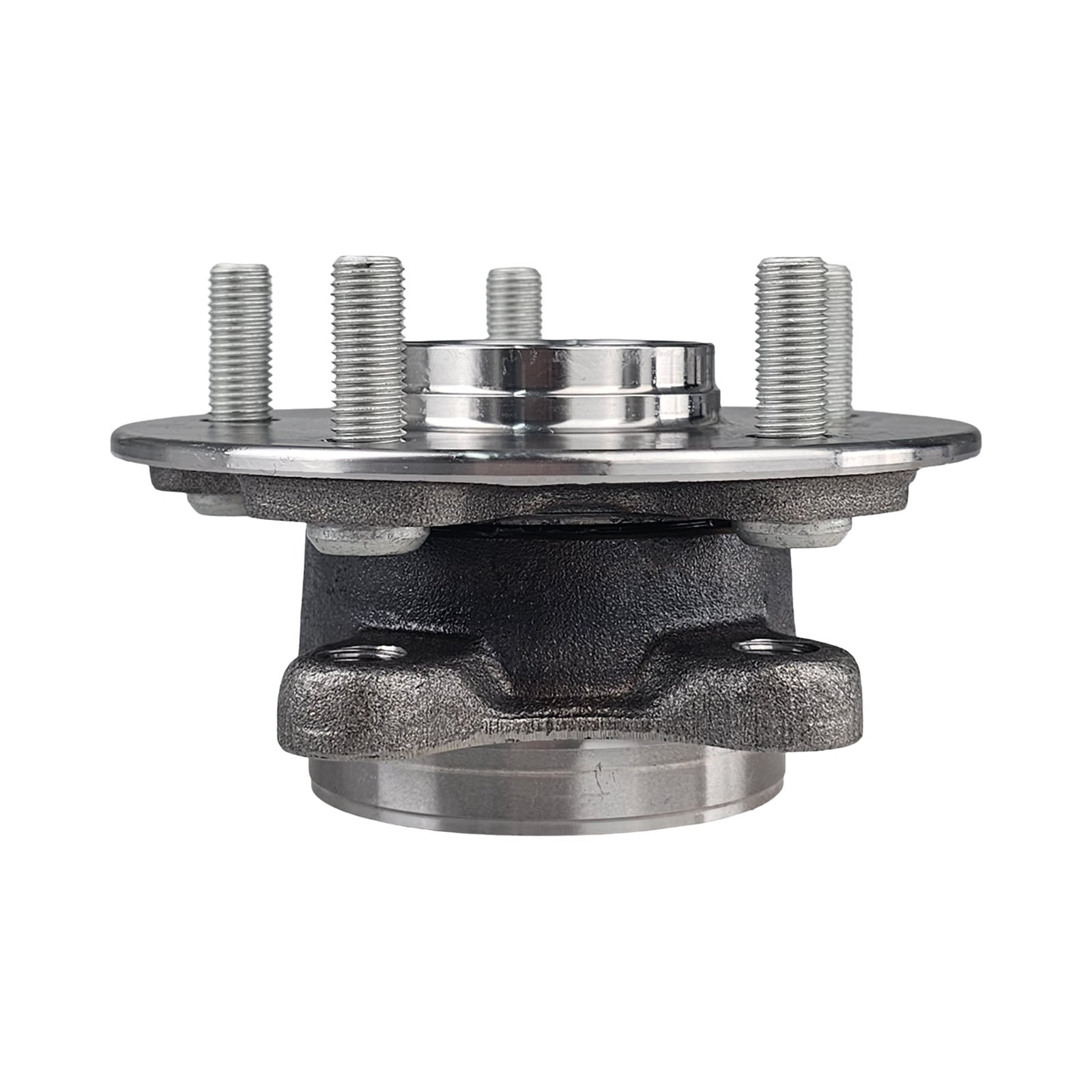

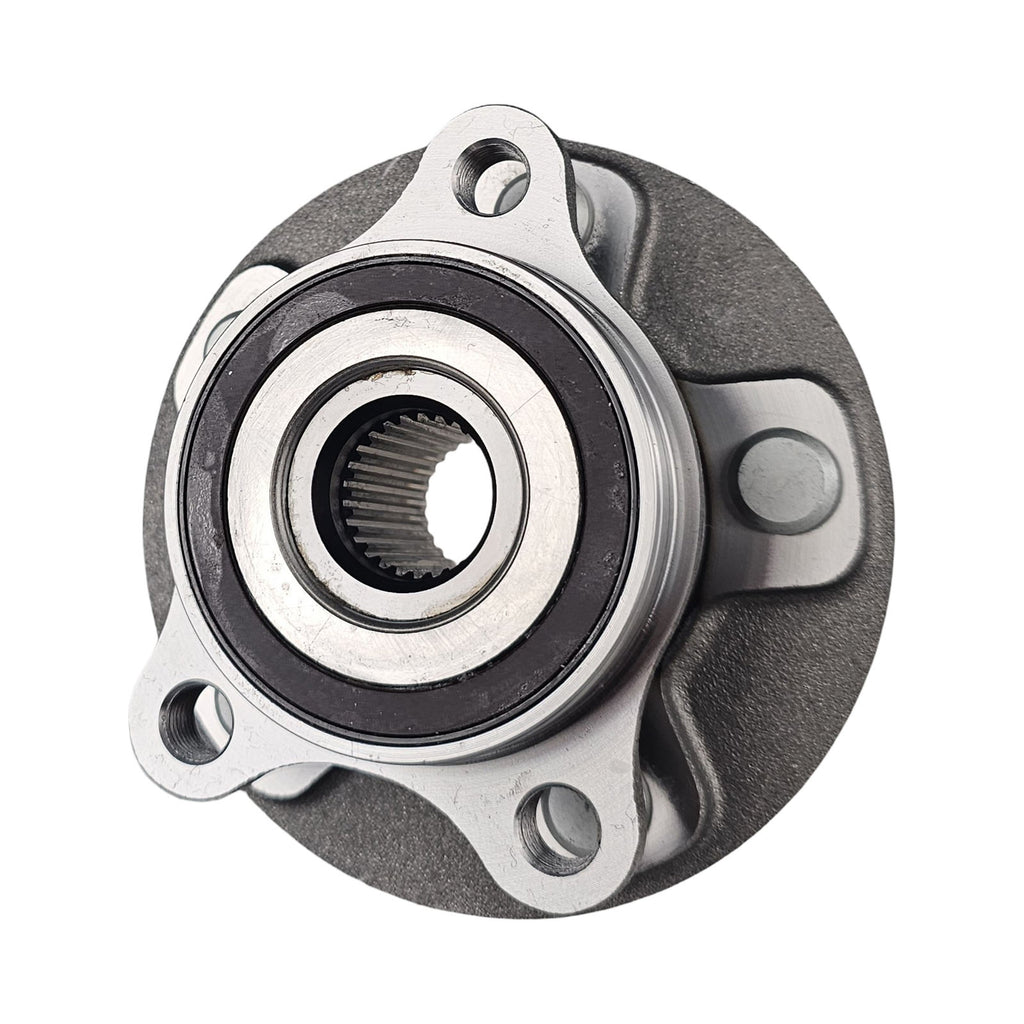

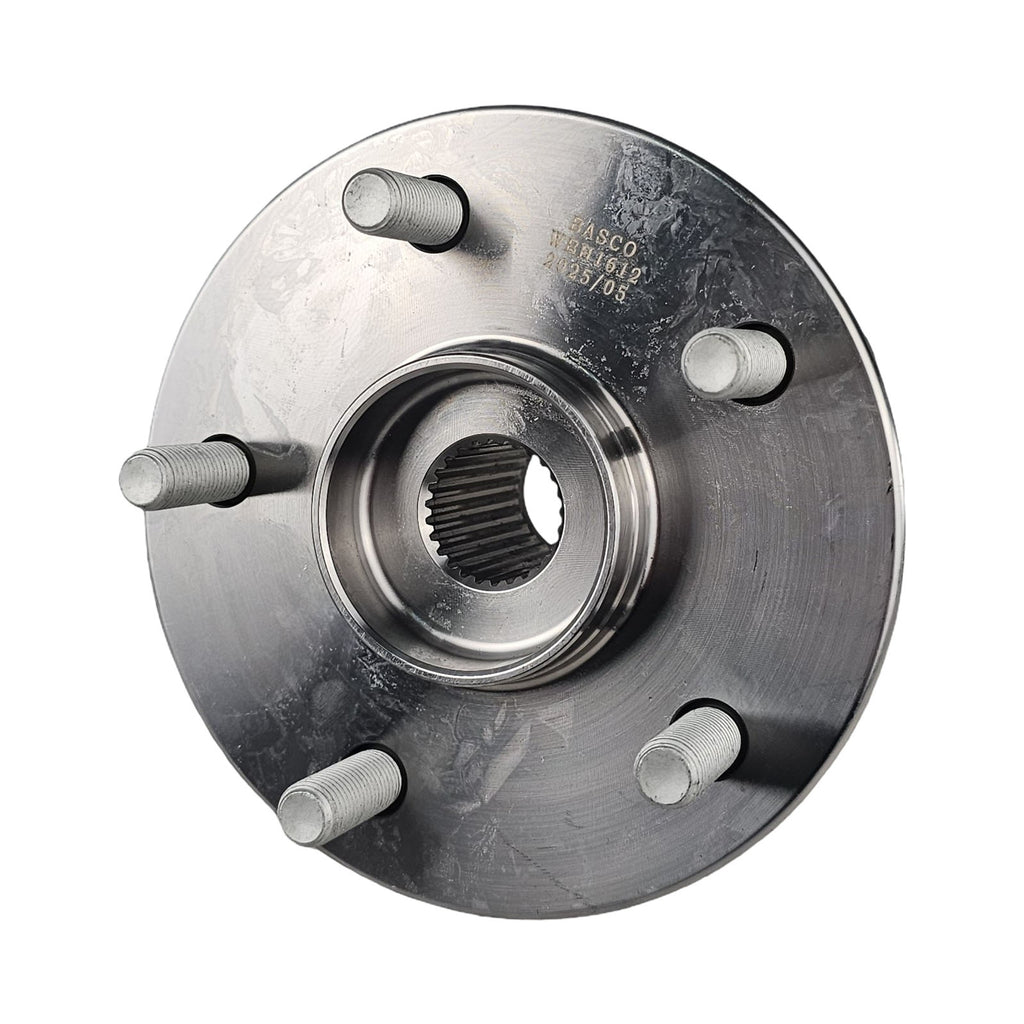

One Brand New Front Wheel Hub
******
Premium wheel end components engineered to OE specifications for reliability and long life.
Vehicle Fitment
- Toyota GR Yaris GXPA16R 1.6L G16E-GTS AWD (08/2020 - On)
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
- ABS: Yes
- Spline Quantity: 30
- Bolt Circle Diameter: 114.3 mm
- Wheel Stud Quantity: 5 x M12 x 1.5
- Hub Pilot Diameter: 85 mm
- Brake Pilot Diameter: 62 mm
- Wheel Pilot Diameter: 60 mm
- Flange Offset: 47.5 mm
- Flange Diameter: 152 mm
- Flange Bolt Hole Qty: 3 x M14x1.5
What's Included
All components include a 12 month/20,000km warranty and support from our specialist team.
