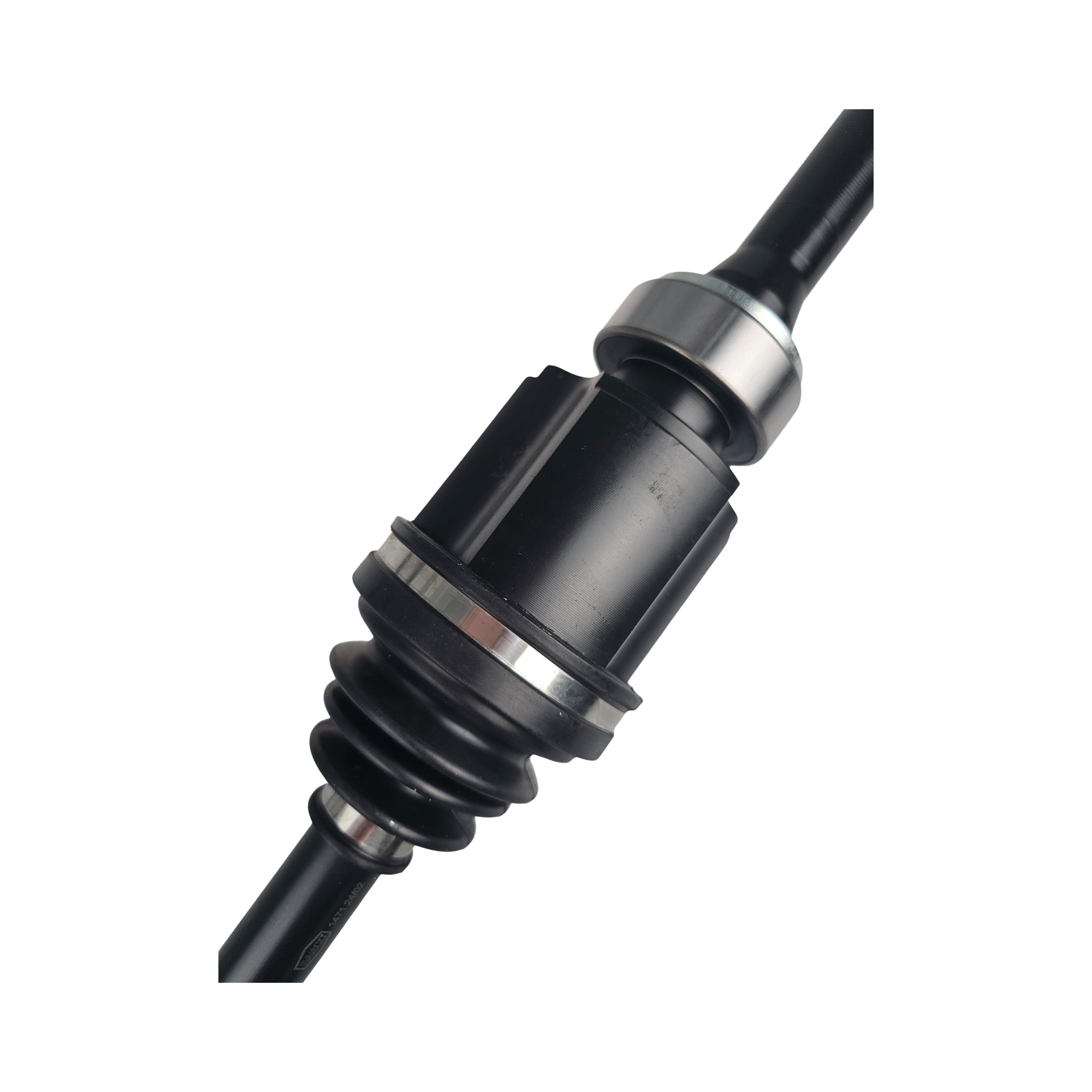

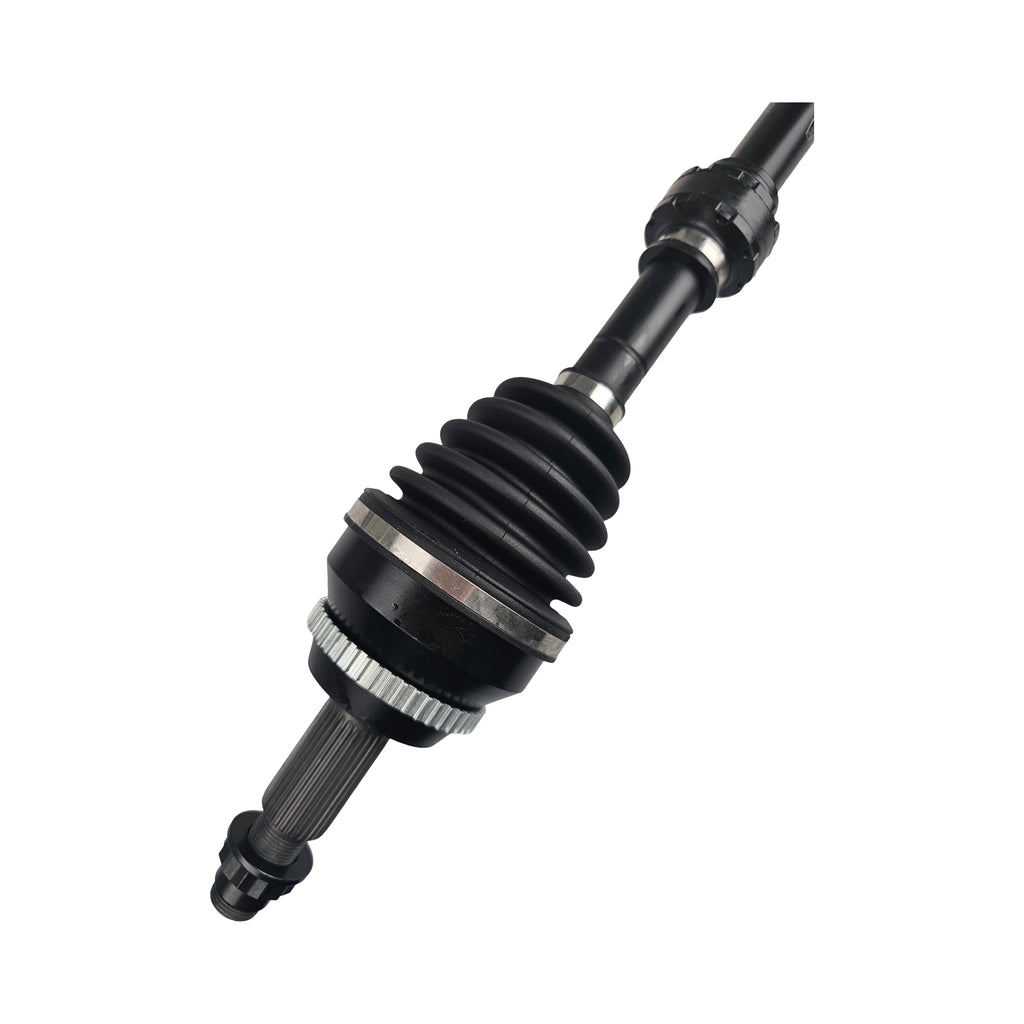

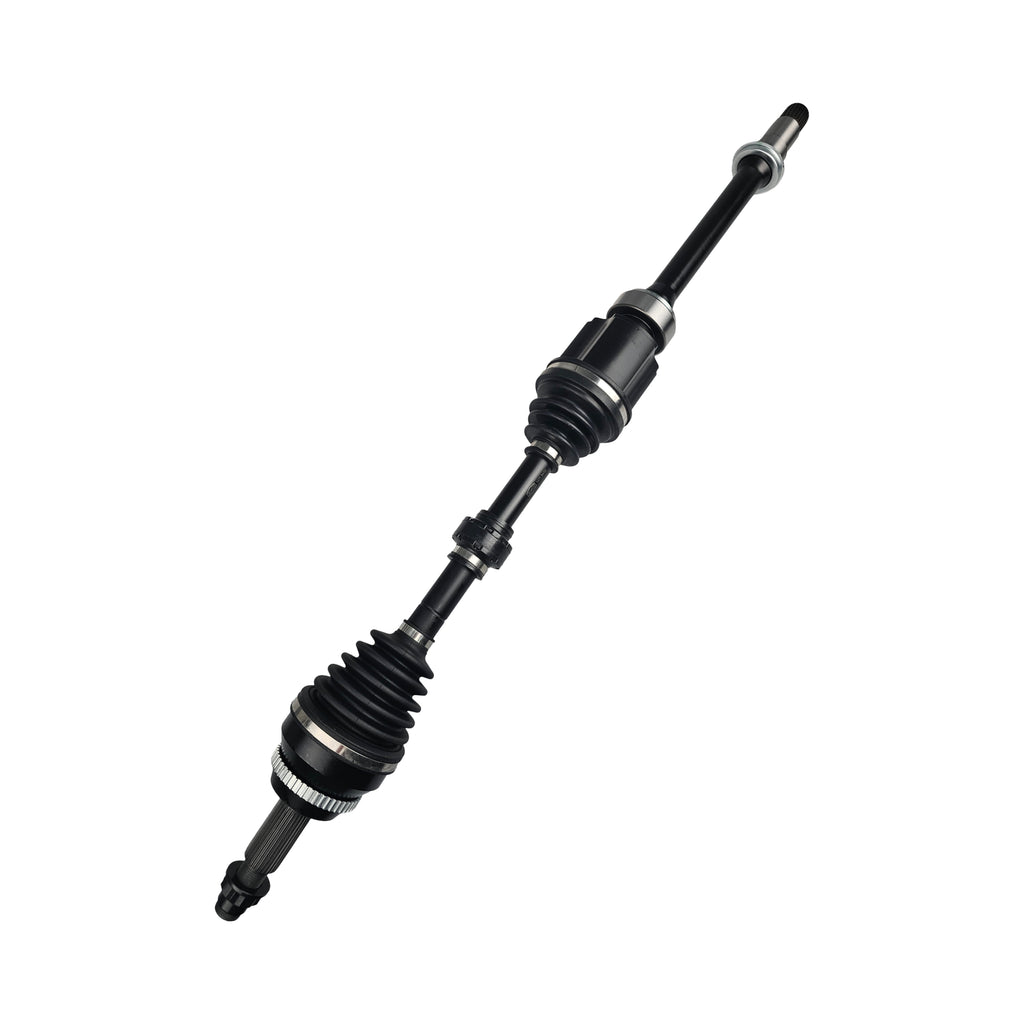

CV Axle Drive Shaft - Right Hand Side Automatic FWD AWD
Front right hand side, does not fit VIN# 5TDDZ3FH and 5TDBZ3FH
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Toyota Kluger GSU40 GSU50 GSU55 3.5L FWD AWD AT (08/2007 - 03/2021) Right
Includes Sub-models Altitude, KX-R, KX-S, GX, GXL, Grande
- Toyota Highlander GSU55 GSU55R 3.5L AWD AT (03/2014 - 10/2016) Right
Includes Sub-models GX, GXL, Limited, Limited ZR
Sizing and Specifications
- Length (Compressed): 992mm
- Spline Count - Outer/Wheel Side: 30T
- Spline Count - Inner/Diff Side: 24T
- ABS Ring Teeth: 48
- Outboard Joint Type: Ball
- Inboard Joint Type: Tripod
- Bearing Outer Diameter on Extension Shaft: 72mm
- Extension Shaft Length From Inside of Bearing Face: 354mm
- Extension Shaft Bearing Width: 23mm
- Hub Nut Style: M22 x 1.5
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
