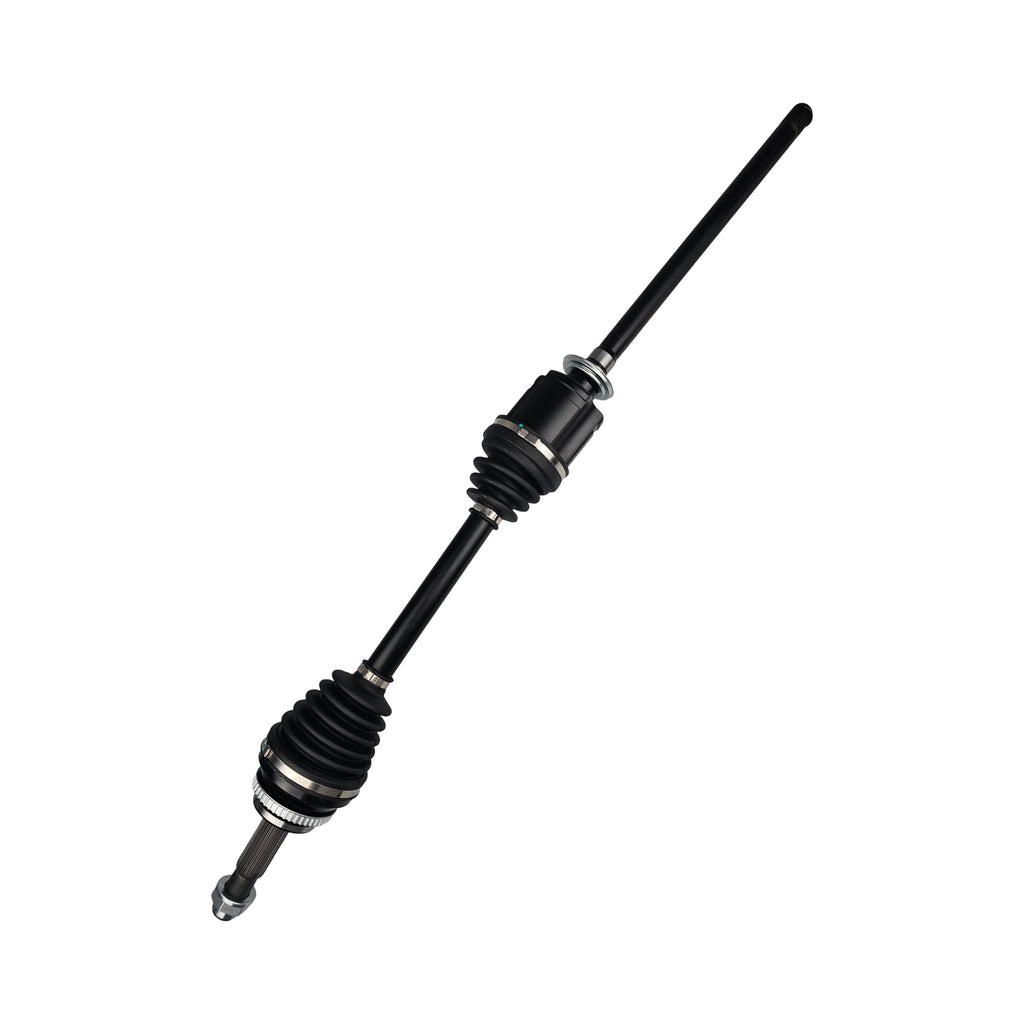

CV Axle Drive Shaft -
Front Right Hand Side Automatic & Manual
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
Models Including Sub Models:
- Toyota RAV4 07/2000-09/2003 ACA20 ACA20R
- Toyota RAV4 05/2000-11/2005 ACA20 ACA20R
- Toyota RAV4 (RAV-4) 2000~2005 ACA21R
- Toyota RAV4 2003~2006 ACA22R ACA23R
Sizing and Specifications
- Length (Compressed): 988mm
- Spline Count - Outer/Wheel Side: 26T
- Spline Count - Inner/Diff Side: 23T

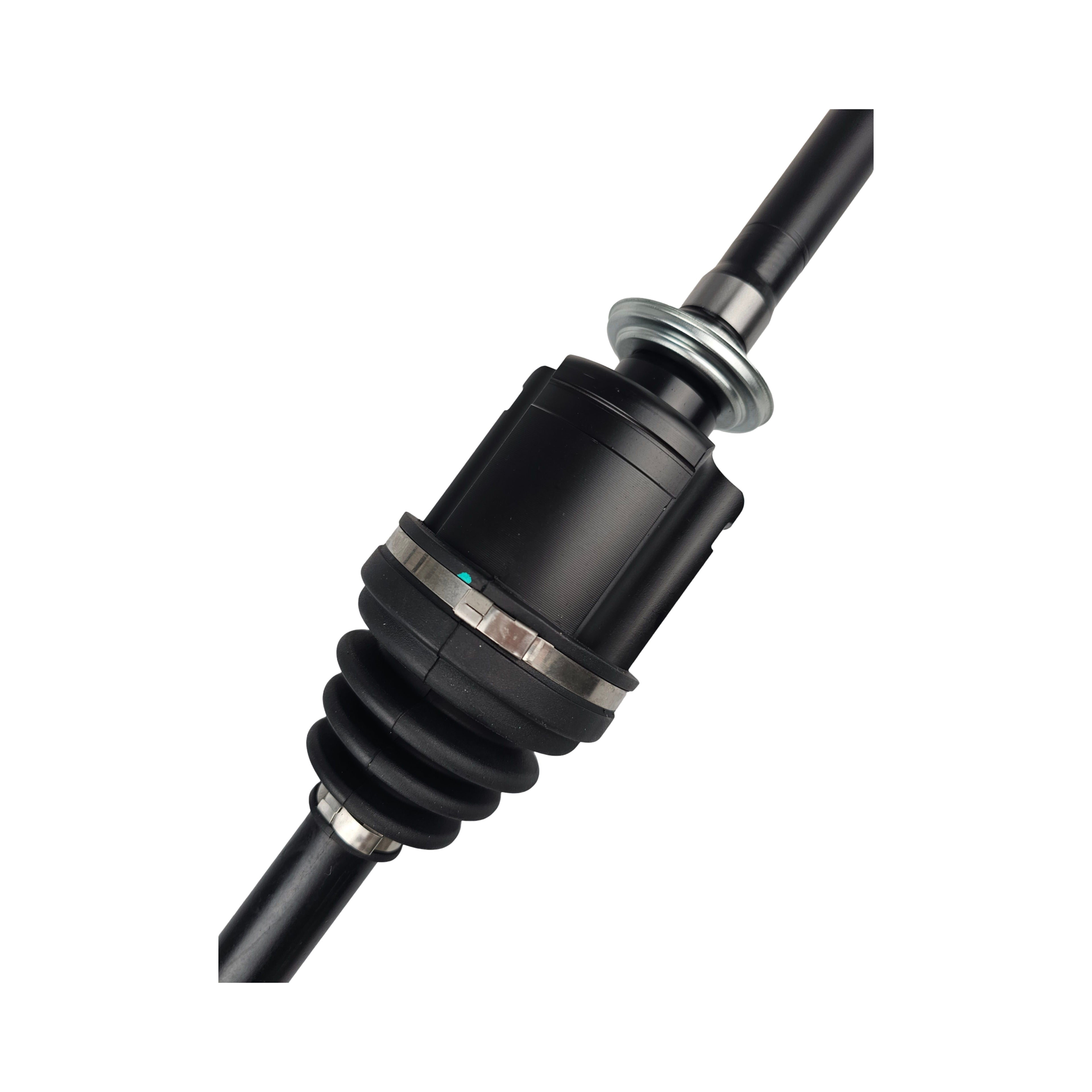

- Inboard Joint Type: Tripod

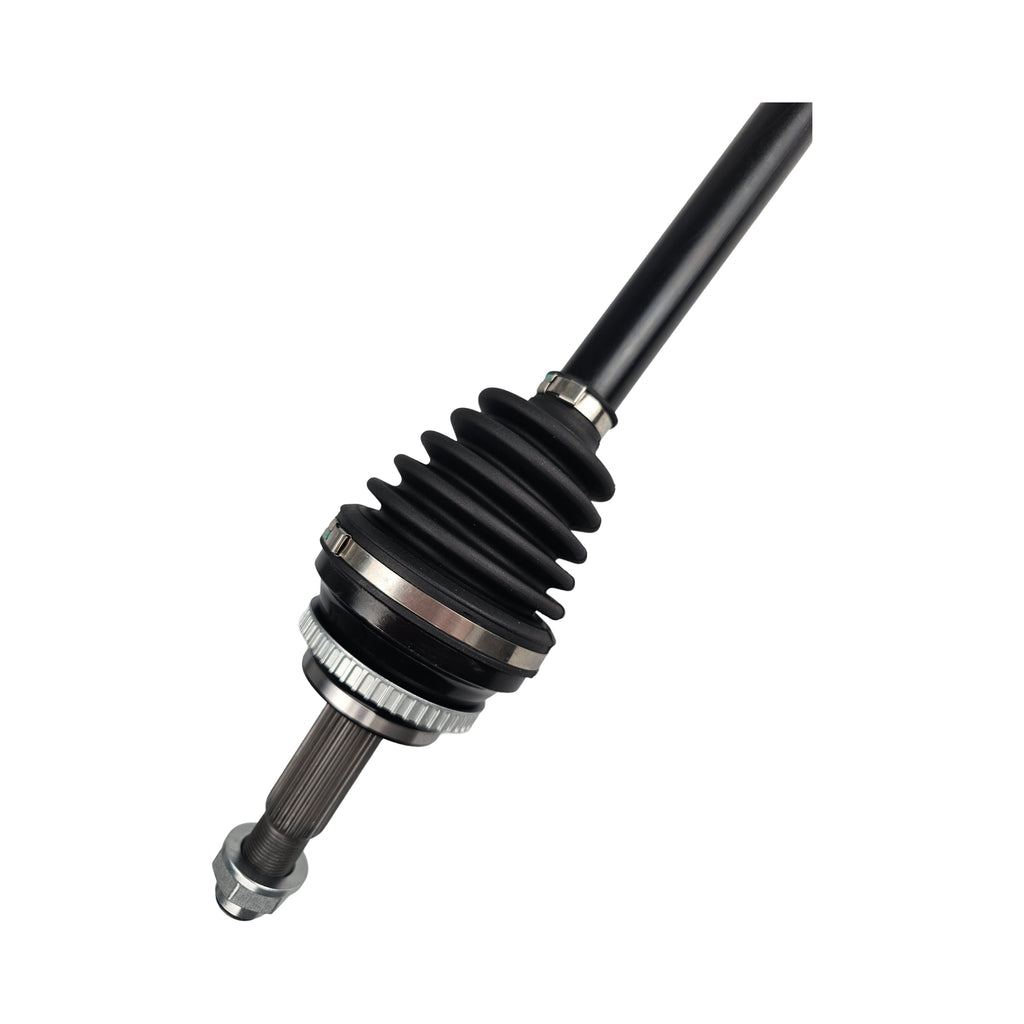

- Outboard Joint Type: Ball
- ABS Ring Teeth: 48T
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
