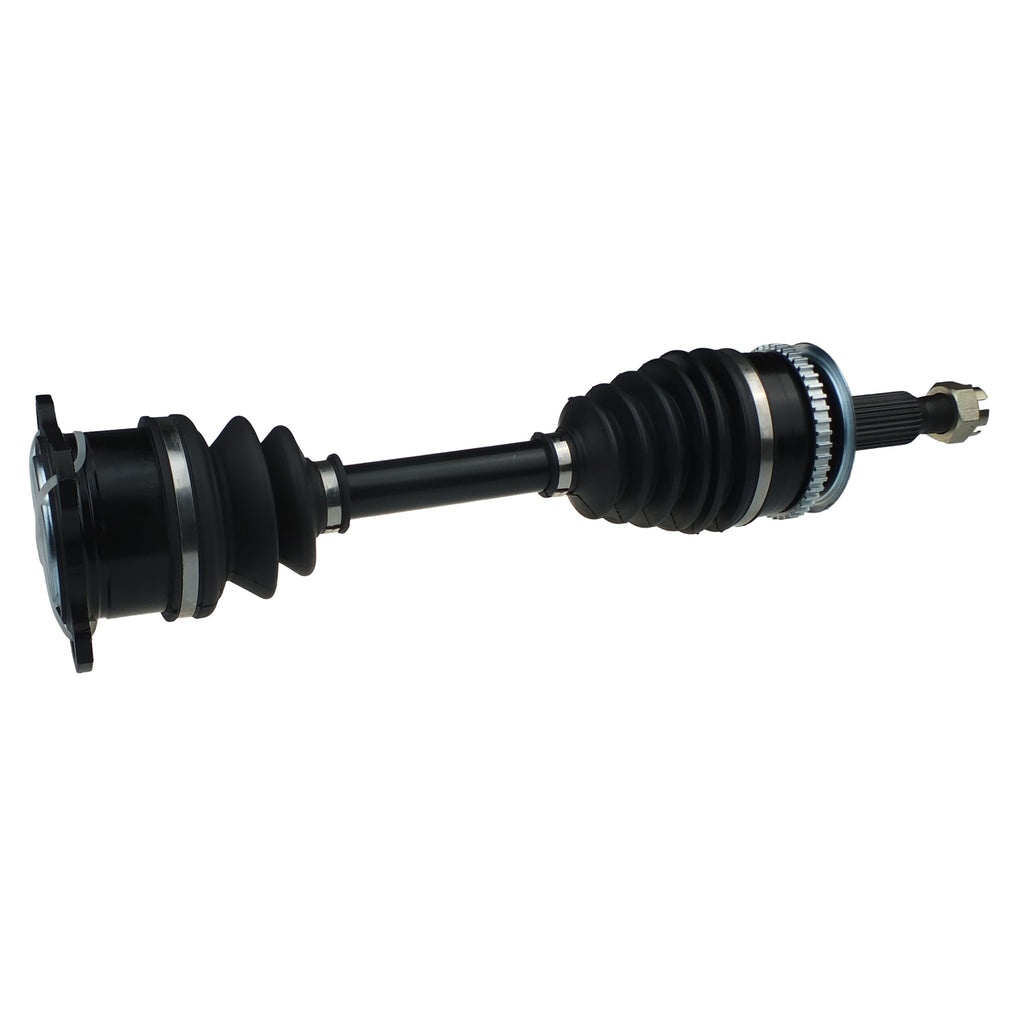

CV Axle Drive Shaft - Front Right Hand Side Automatic Manual 4WD
***Note: Length 486.5mm, for longer 593mm shafts please see CVA1484***
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Mitsubishi Triton MQ MR ML MN 4WD (03/2006 - Onwards)
Includes Sub-models GLX, GLX Club, GLX+, GLX Adas, GLS, Exceed, GL-R, GLX-R, Activ, VR
- Mitsubishi Pajero Sport QE QF KS1W 4WD (01/2015 - Onwards)
Includes Sub-models Black Edition, Exceed, GLS, GLX, GSR
- Mitsubishi Challenger PB PC KH4 KG4 4WD RWD (12/2009 - 12/2015)
Includes Sub-models 30th Anniversary, LS, XLS
Sizing and Specifications
- Length (Compressed): 486.5mm
- Spline Count - Outer/Wheel Side: 30T
- Inboard Joint Type: Bolt on 4-Bolt
- Inboard Joint Type: Ball
- ABS Ring Teeth: 487
- Nut Type: M22 x 1.5
- PCD Mounting Bolt Holes (Inner Joint): 110.5mm
- Flange Outer Diameter:132mm
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
