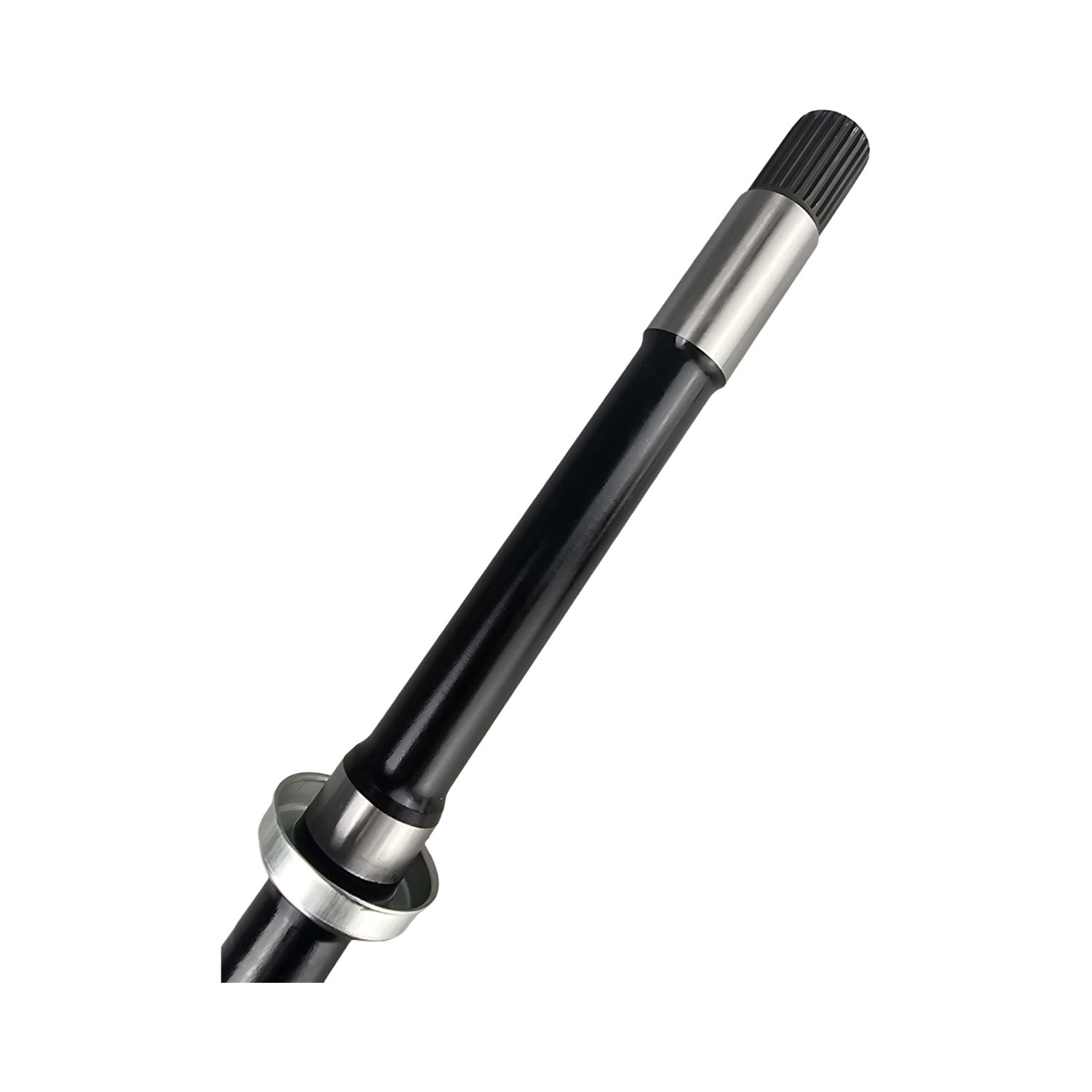

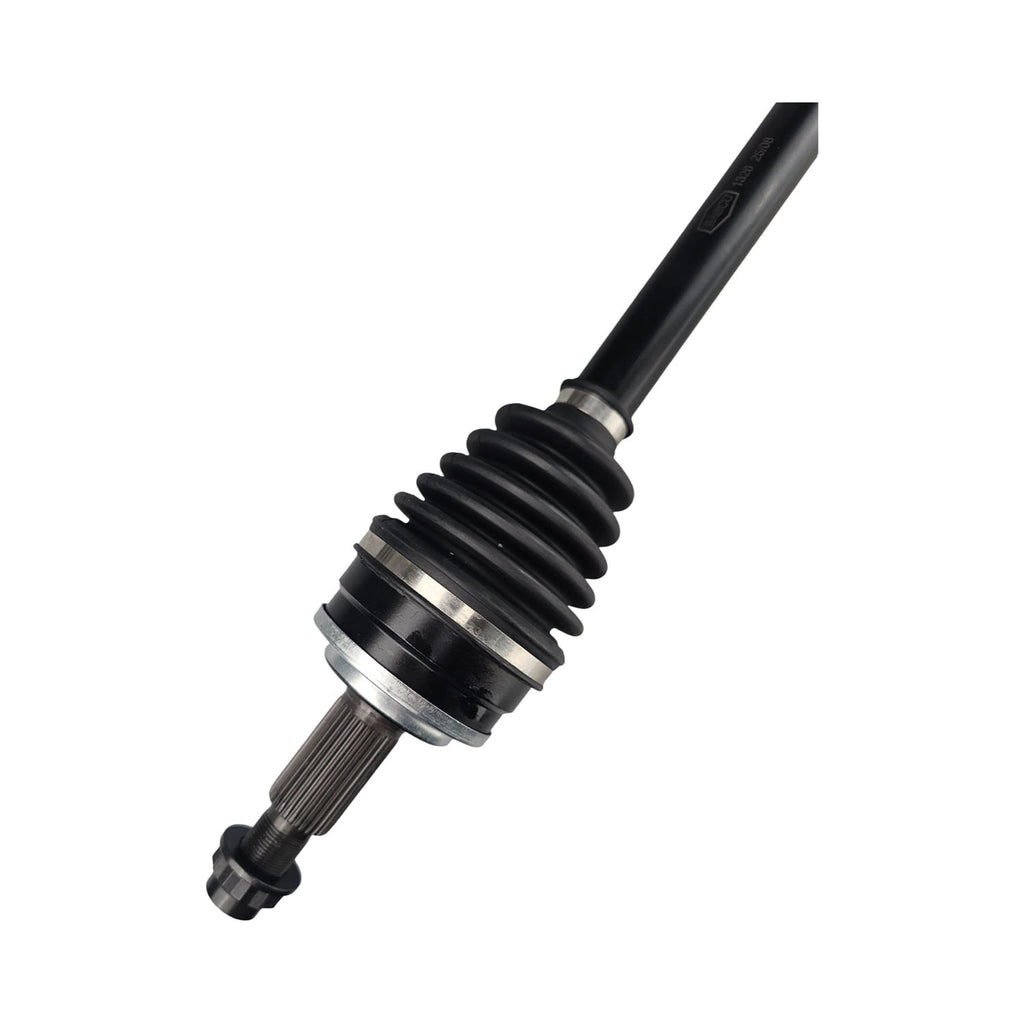

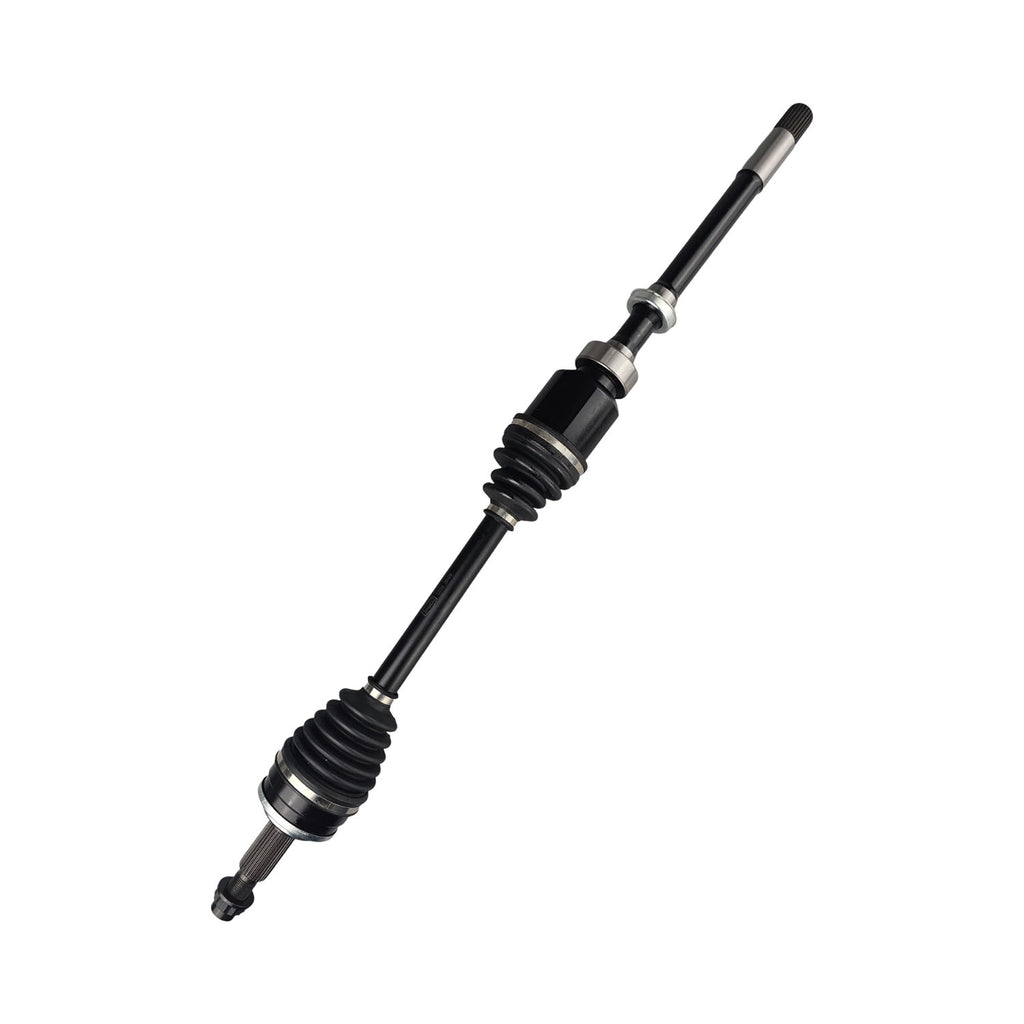

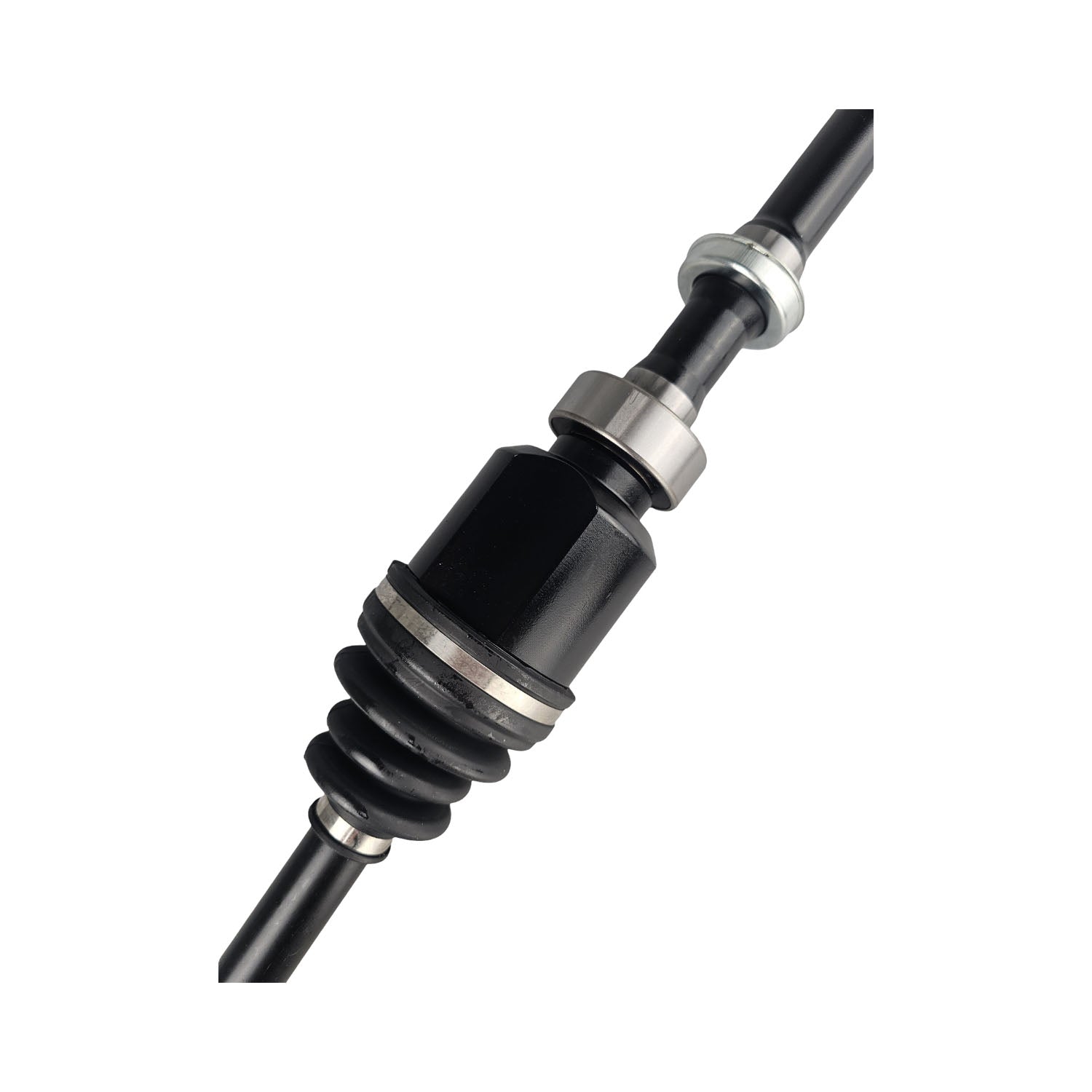

CV Axle Drive Shaft - Front Right Hand Side Automatic/Manual AWD 4WD
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Toyota RAV4 ALA49 2.2L 2ADFTV AWD MN AT (02/2013 - 11/2015)
Sub-Models Include GXL, CRUISER, GX
- Toyota RAV4 ALA49 2.2L 2ADFHV AWD AT (12/2015 - 02/2019)
Sub-Models Include GX, CRUISER, GXL
- Toyota RAV4 ALA49 2.2L 2ADFHV AWD MN (12/2015 - 02/2019)
Sub-Models Include GX, GXL
- Toyota RAV4 ASA44 2.5L 2ARFE AWD MN AT (02/2013 - 02/2019)
Sub-Models Include GXL, CRUISER, GX
- Toyota RAV4 GSA33 3.5L 2GRFE 4WD AT (10/2007 - 01/2013)
Sub-Models Include CV6, SX6, ZR6
Sizing and Specifications
- Length (Compressed): 993mm
- Spline Count - Outer/Wheel Side: 30T
- Spline Count - Inner/Diff Side: 24T
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
