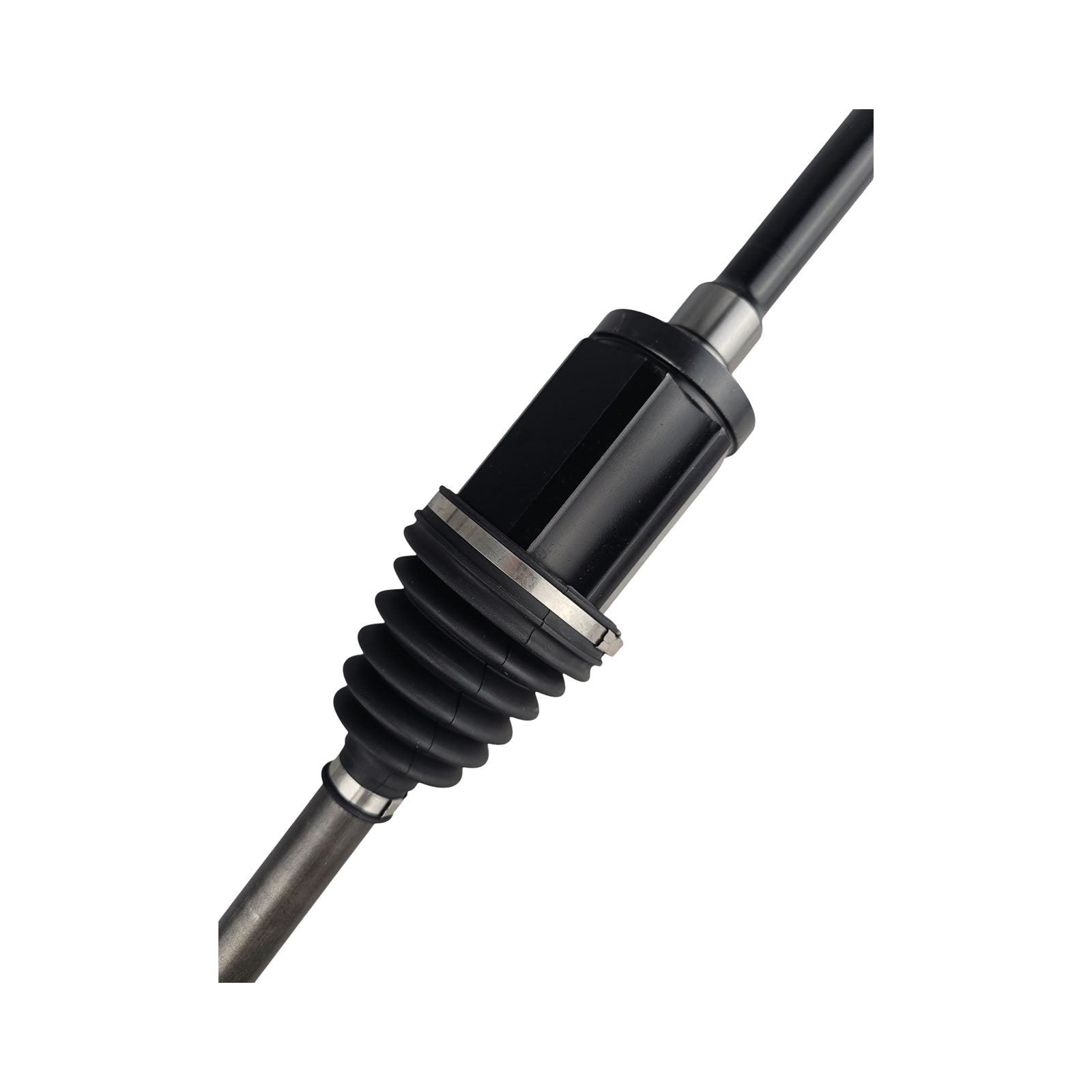

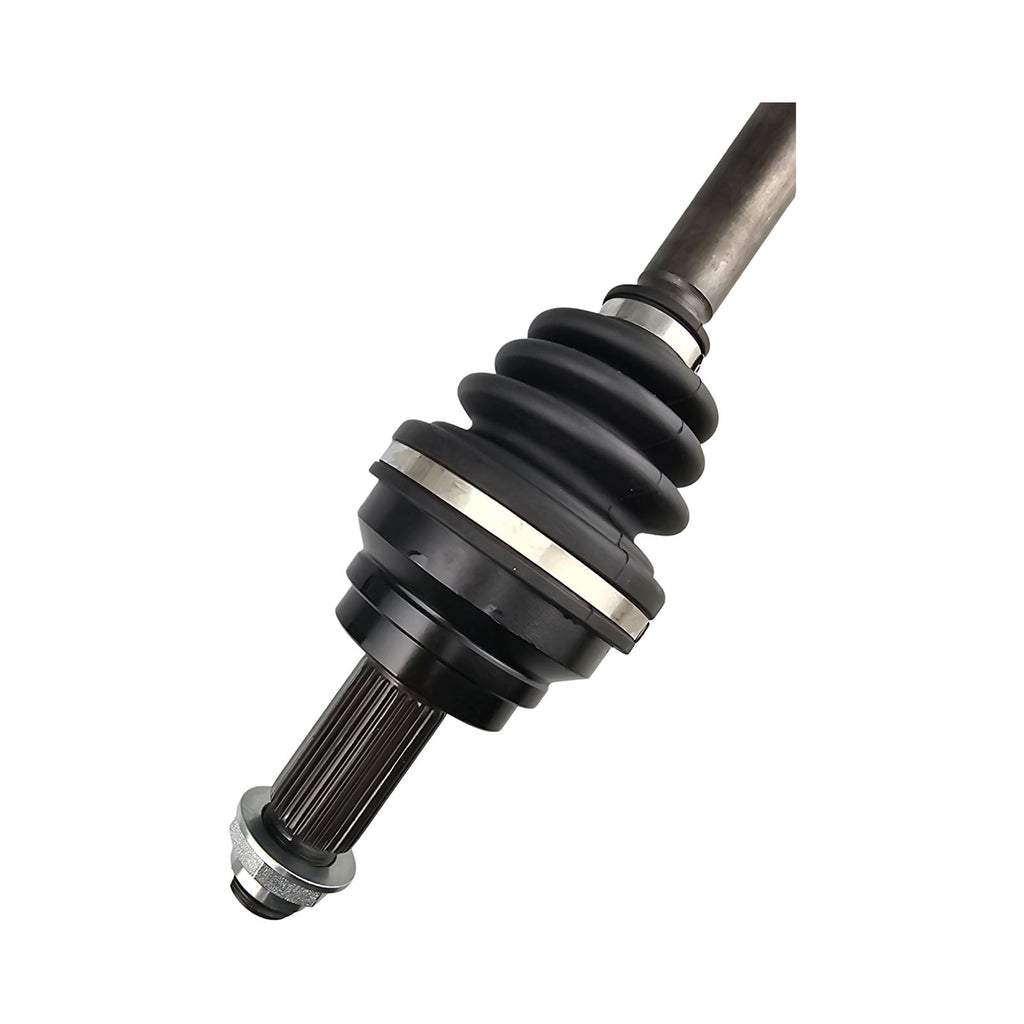

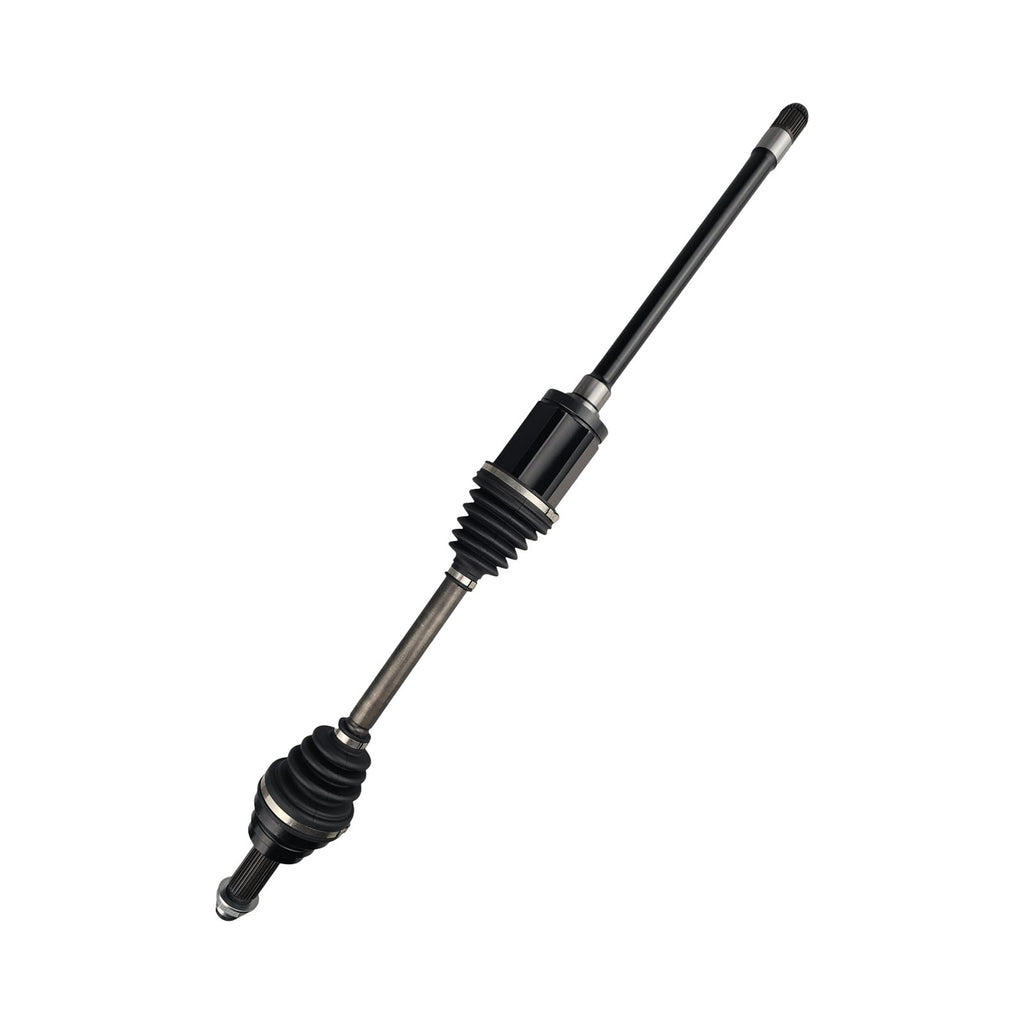

Brand New Right Front CV Drive Shaft
***Note: This is Front Right, AWD Automatic Only.***
Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.
Vehicle Fitment Information for:
- BMW X5 3.0d, 3.0sd, xDrive 30d, xDrive 35d E70 (03/2007~09/2013) 3.0L Diesel M57D30TU, M57D30TUTOP, M57D30T2UTD, M57D30T2UTOP, N57D30A, N57D30B
- BMW X5 M50d E70, F15 (06/2012~11/2018) 3.0L Diesel N57D30C
- BMW X5 xDrive 25d F15 (11/2013~11/2018) 2.0L Diesel N47D20D, B47D20B
- BMW X5 xDrive 30d F15 (10/2013~11/2018) 3.0L Diesel N57D30A
- BMW X5 xDrive 35i F15 (11/2013~01/2018) 3.0L Petrol N55B30A
- BMW X5 xDrive 40d F15 (11/2013~11/2018) 3.0L Diesel N57D30B
- BMW X5 xDrive 40e F15 (06/2016~11/2018) 2.0L Petrol-HEV N20B20A
- BMW X6 xDrive 30i, 35d, 30d, 50i E71 (07/2008~12/2014) 3.0L Diesel M57D30T2UTOP, M57D30TU2, N57D30A, N57D30B / 4.4L Petrol N63B44A
- BMW X6 M E71, F86 (12/2009~09/2018) 4.4L Petrol S63B44, S63B44B
- BMW X6 M50d E71, F16 (06/2012~07/2019) 3.0L Diesel N57D30C
- BMW X6 xDrive 30d, 35i, 40d, 50i F16 (01/2015~07/2019) 3.0L Diesel N57D30A, N57D30B / 3.0L Petrol N55B30 / 4.4L Petrol N63B44B
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
- Length (Compressed): 979 mm
- Spline Count - Outer/Wheel Side: 30
- Spline Count - Inner/Diff Side: 27
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Drive Shaft Seal (Inner) ID: 44 mm
- Hub Nut: M27 x 1.5
- Extension Shaft Length from Tin Seal: 371.5 mm
What's Included
All components include a 12 month/20,000km warranty and support from our specialist team.
