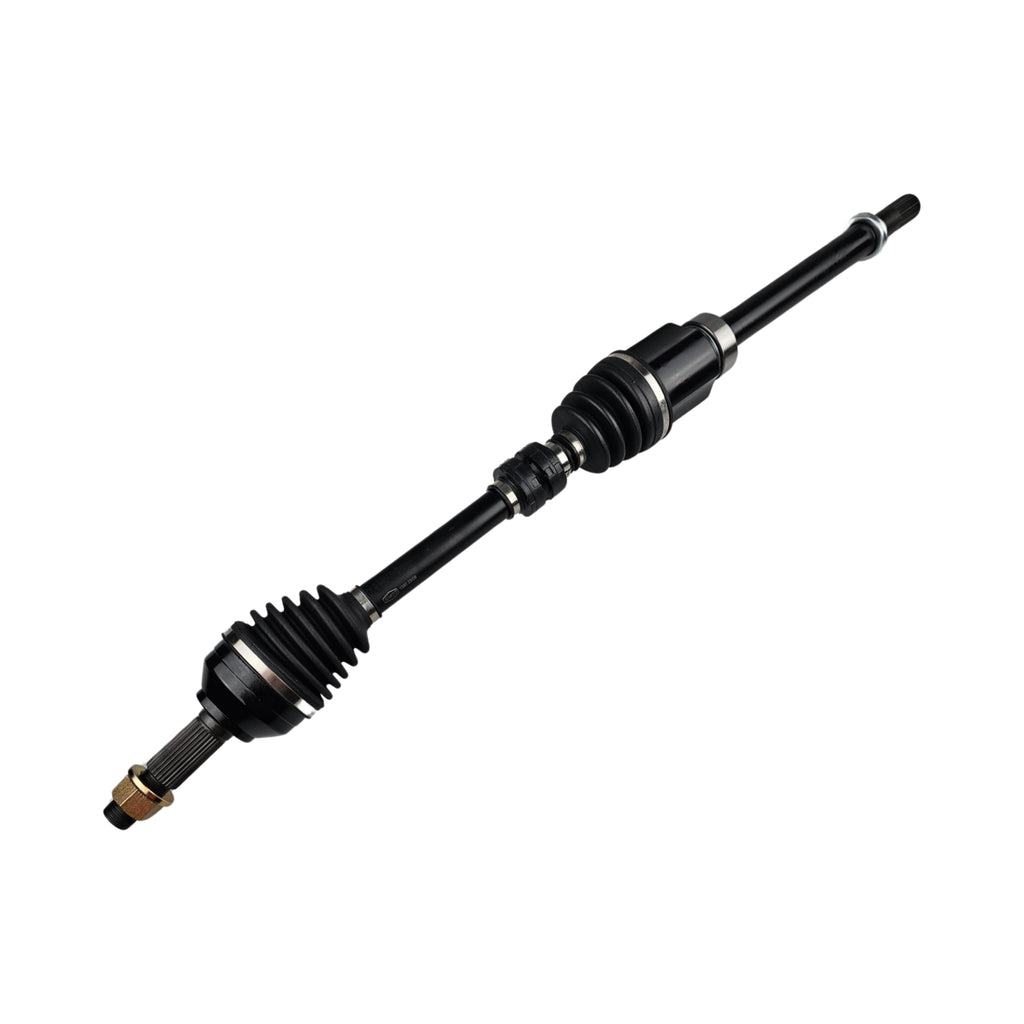

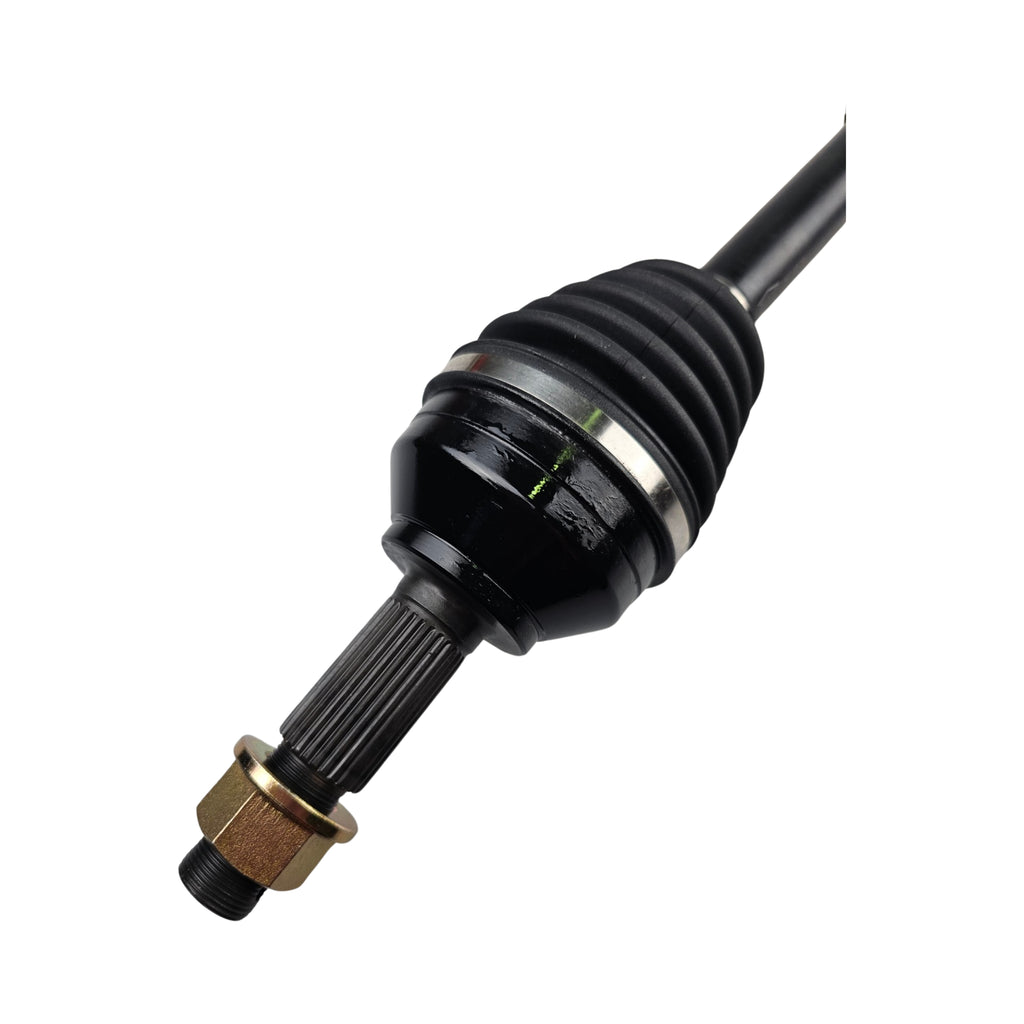

Right CV Axle Drive Shaft For Nissan X-Trail T31 Dualis J10 Qashqai J10 2.0L CVT

CV Axle Drive Shaft - Right Hand Side CVT Transmission FWD AWD/4WD

Please double check as the Dualis/Qashqai has many versions of CV shafts, extension shaft length from inside of bearing face 301.5mm

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Nissan Dualis J10, Chassis: FBAJ10, JBAJ10 (Great Britain Built) - J10, KJ10 (Japan Built) 2.0 MR20DE DOHC VVT FWD CVT (05/2007 - 01/2016) FWD, CVT Only, FBAJ10 04/2010 onwards only
  Includes Sub-models Ti, Ti-L, ST, 20G, 20S, Cross Rider
• Nissan Dualis J10, Chassis: FBNJ10, JBNJ10 (Great Britain Built) 2.0 MR20DE DOHC VVT AWD CVT (05/2007 - 01/2016) AWD, CVT Only, FBNJ10 04/2010 onwards only
  Includes Sub-models Ti, Ti-L, S
• Nissan Qashqai J10, Chassis: FBAJ10 (Great Britain Built, Japan Built) JBAJ10 (Great Britain Built) 2.0 MR20DE DOHC VVT FWD CVT (04/2010 - 01/2016) CVT, models 04/2010 onwards only
• Nissan X-Trail T31, Chassis: T31, TBAT31 (Japan Built) 2.0L MR20DE DOHC VVT FWD CVT (08/2007 - 03/2015) FWD, CVT Only
  Includes Sub-models ST, ST Limited Edition, ST-L, 20S, 20X, 20XTT, Axis

• Nissan X-Trail T31, Chassis: NT31 (Japan Built) 2.0L MR20DE DOHC VVT 4WD CVT (08/2007 - 03/2015) 4WD, CVT Only
  Includes Sub-models 20S 4WD, 20ST 4WD, 20XT 4WD, 20XTT 4WD, Axis 4WD, Driving Gear 4WD


Sizing and Specifications

• Length (Compressed): 942.5MM
• Spline Count - Outer/Wheel Side: 29T
• Spline Count - Inner/Diff Side: 27T
• Bearing Outer Diameter on Extension Shaft: 62MM
• Extension Shaft Bearing Width: 20mm

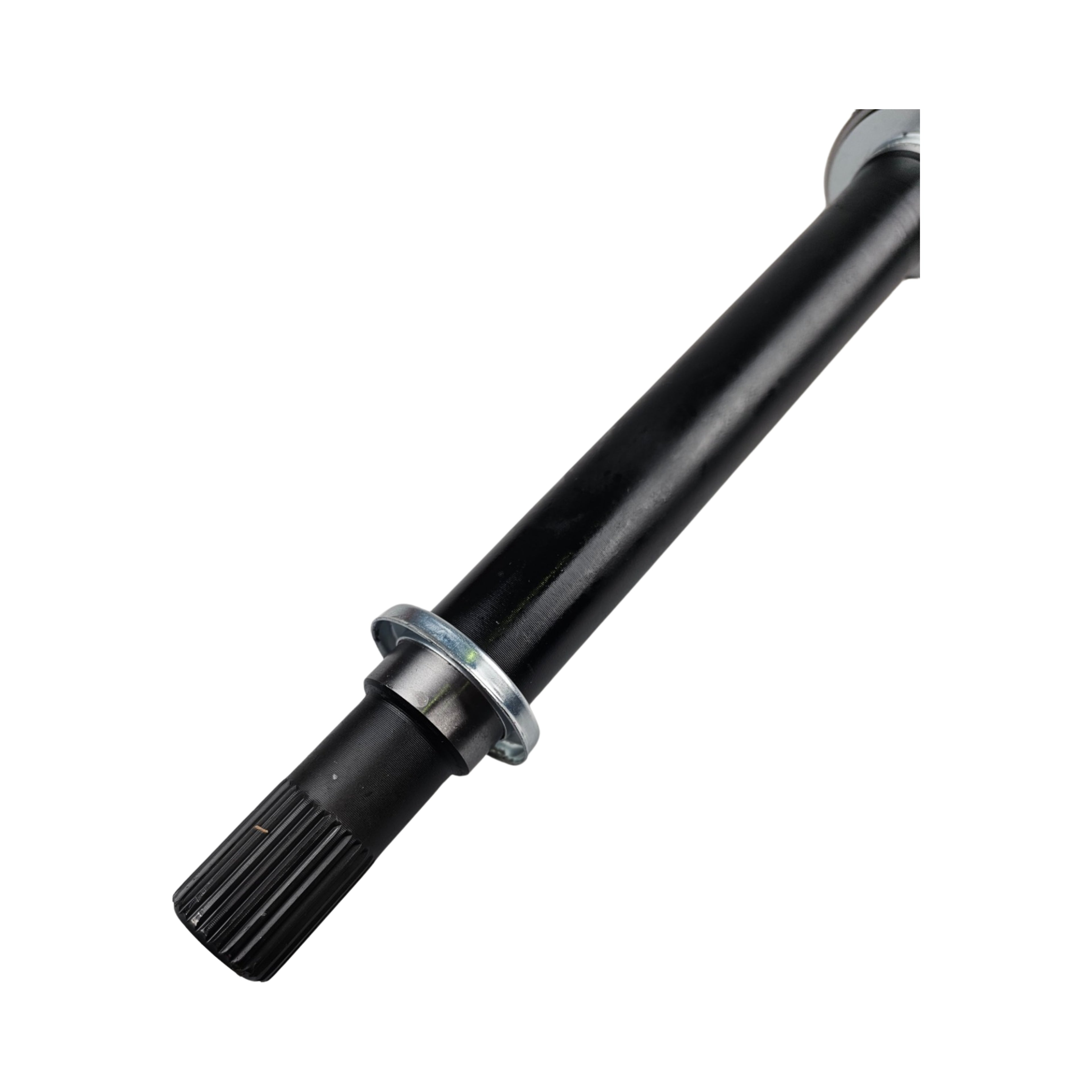

• Extension Shaft Length From Inside of Bearing Face: 301.5MM
• Outboard Joint Type: Ball
• Inboard Joint Type: Tripod
• Hub Nut Style: M24 x 1.5

What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
