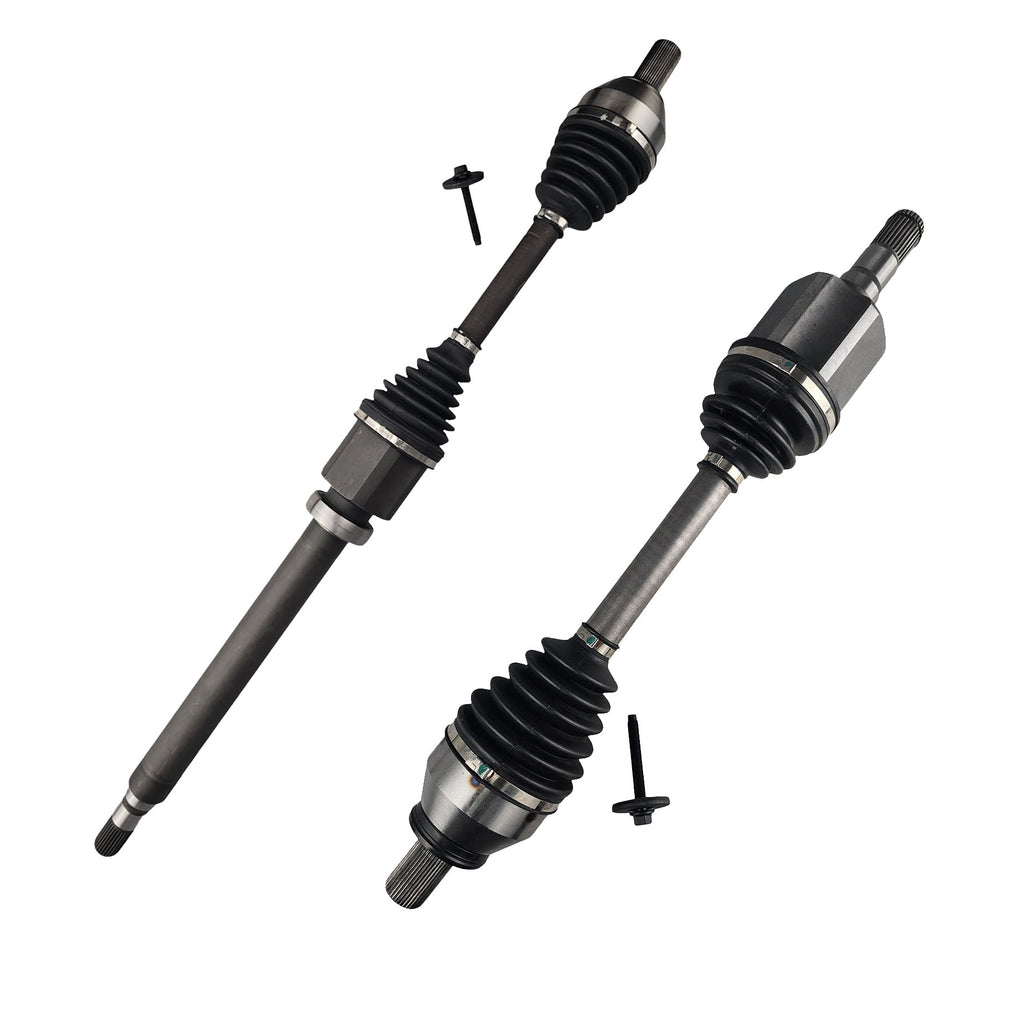

Brand New Left & Right Front CV Drive Shaft
***Pair Kit for FWD DCT | Please Check OE***
Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.
Vehicle Fitment
- Volvo S60 P3 (02/2011~05/2014) 2.0L Petrol B4204T7
- Volvo V60 P3 (03/2011~05/2014) 2.0L Petrol B4204T7
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
CVA1654 (Left)
- Length (Compressed): 590mm
- Spline Count - Outer/Wheel Side: 40 Teeth
- Spline Count - Inner/Diff Side 28: Teeth
- Outboard Joint Type: Ball
- Inboard Joint Type: Tripod
- Hub Bolt Style: M10 x 1.5
CVA1655 (Right)
- Length (Compressed): 955 mm
- Spline Count - Outer/Wheel Side: 40
- Spline Count - Inner/Diff Side: 28
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Bearing Outer Diameter on Extension Shaft: 75 mm
- Extension Shaft Bearing Width: 19 mm
- Drive Shaft Seal (Inner) ID: 33.8 mm
- Hub Bolt Style: M10 x 1.5
- Extension Shaft Length from Bearing: 430 mm
- Extension Shaft Length from Tin Seal: 77 mm
What's Included
- 1 x Left Front CV Shaft
- 1x Right Front CV Shaft
All components include a 12 month/20,000km warranty and support from our specialist team.
