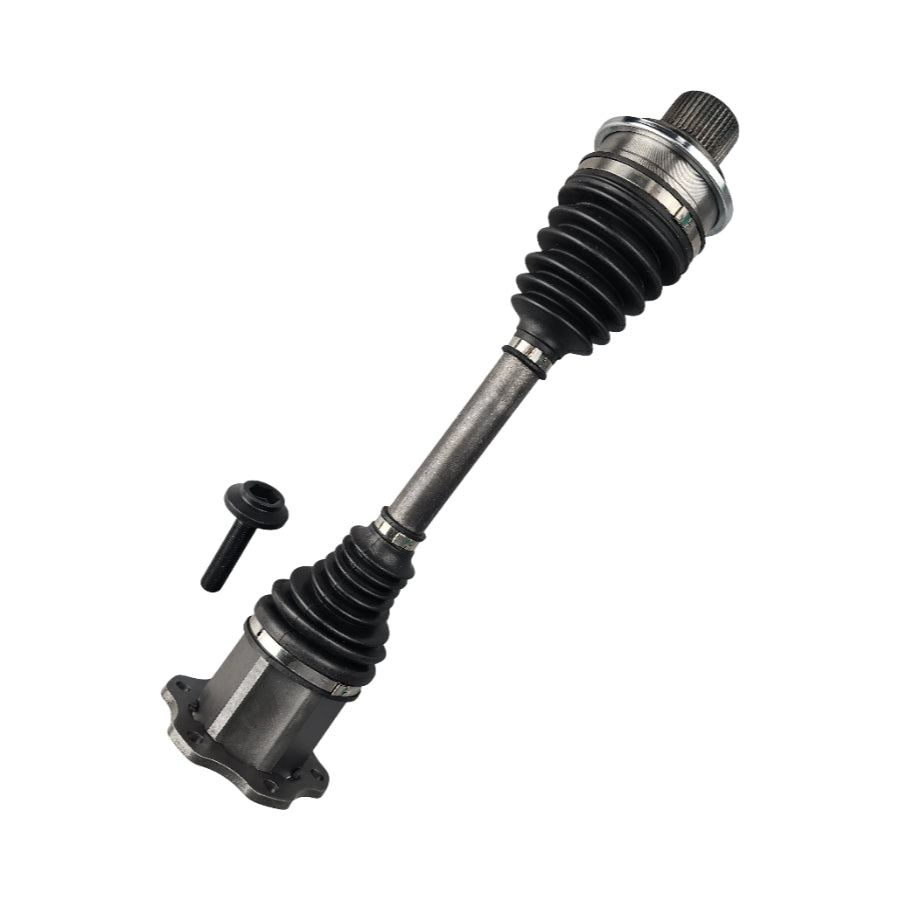

CV Axle Drive Shaft - Left or Right-Hand Side FWD AWD
Please Double Check Outer Joint Profile, Please Check Engine Codes to Match <--
6 Bolt Bolt-On Inner Joint
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- AUDI A4 Series: B9 Chassis: F4 - FWD AWD (10/2015 - Onwards)
-
1.4L Engine: CVNA
-
2.0L Engine: DETA, DTPA, CVKB, CYRB, DEMA, DDWB(Hybrid), DLVB(Hybrid)
Includes Sub-models Sport, 1.4 TFSI S Tronic S Line, 1.4 TFSI S Tronic Sport, 35 TFSI S Tronic, 35 TFSI S Tronic Sport, 2.0 TDI Quattro, S Tronic, S Line, Allroad 40 TDI Quattro, 45 TFSI Quattro S Tronic Sport, Avant 2.0 TFSI, 2.0 TFSI, Allroad 2.0 TFSI Quattro S Tronic, 45 TFSI Quattro S Line MHEV, MHEV, Dynamic Black, 35 TFSI MHEV
- AUDI A5 Series: F5 Chassis: F5 - FWD AWD DCT (03/2017 - Onwards)
-
2.0L Engine: DETA, DTPA, CVKB, CYRB, DEMA(Hybrid), DDWA(Hybrid)
Includes Sub-models 2.0 TDI Quattro Sport, 2.0 TFSI, 40 TFSI, S Tronic Sport, 45 TFSI Quattro Sport, 45 TFSI Quattro S Line MHEV, Dynamic Black, 40 TFSI S Line MHEV
- AUDI RS5 Series: F5 Chassis: F5 - AWD (12/2017 - Onwards)
-
2.9L Engine: DECA Twin Turbo I/C
Includes Sub-models 2.9 TFSI Quattro
- AUDI S4 Series: B9 Chassis: 8W - AWD (10/2016 - Onwards)
-
3.0L Engine: CWGD Turbo I/C
Includes Sub-models 3.0 TFSI Quattro, 3.0 TFSI Quattro Avant
- AUDI S5 Series: F5 Chassis: F5 - AWD (03/2017 - Onwards)
-
3.0L Engine: CWGD Turbo I/C
Includes Sub-models 3.0 TFSI Quattro, Sportback 3.0 TFSI Quattro
Sizing and Specifications
- Length (Compressed): 462mm

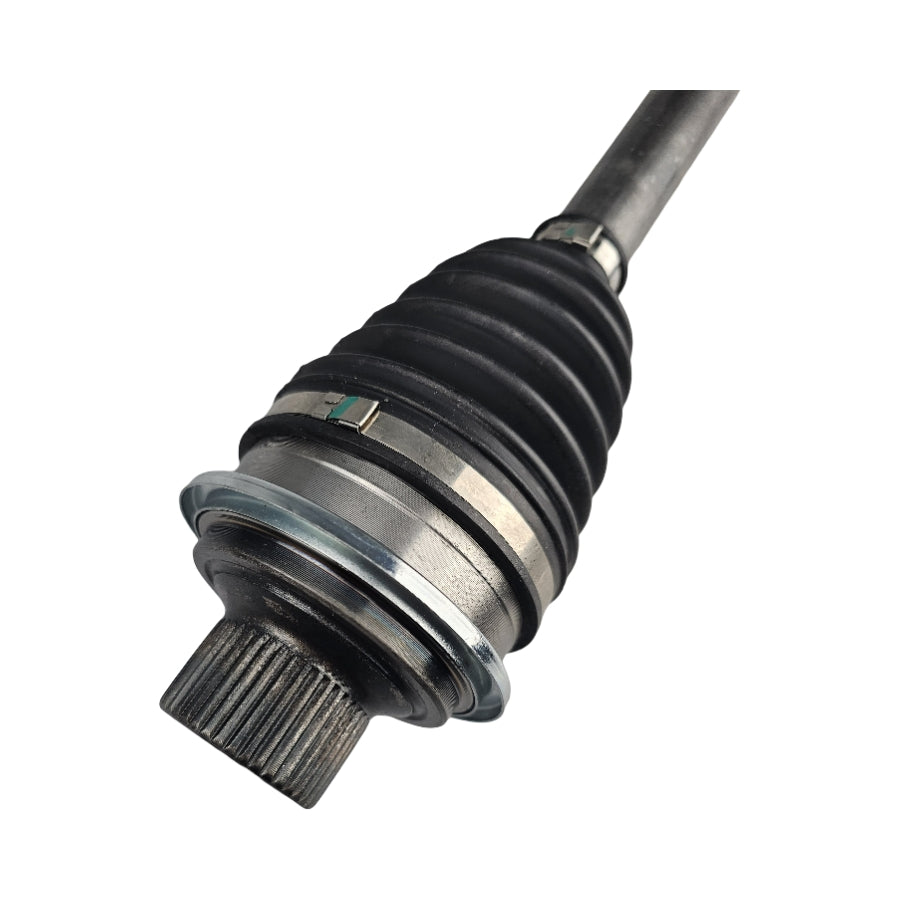

- Spline Count - Outer/Wheel Side: 42T

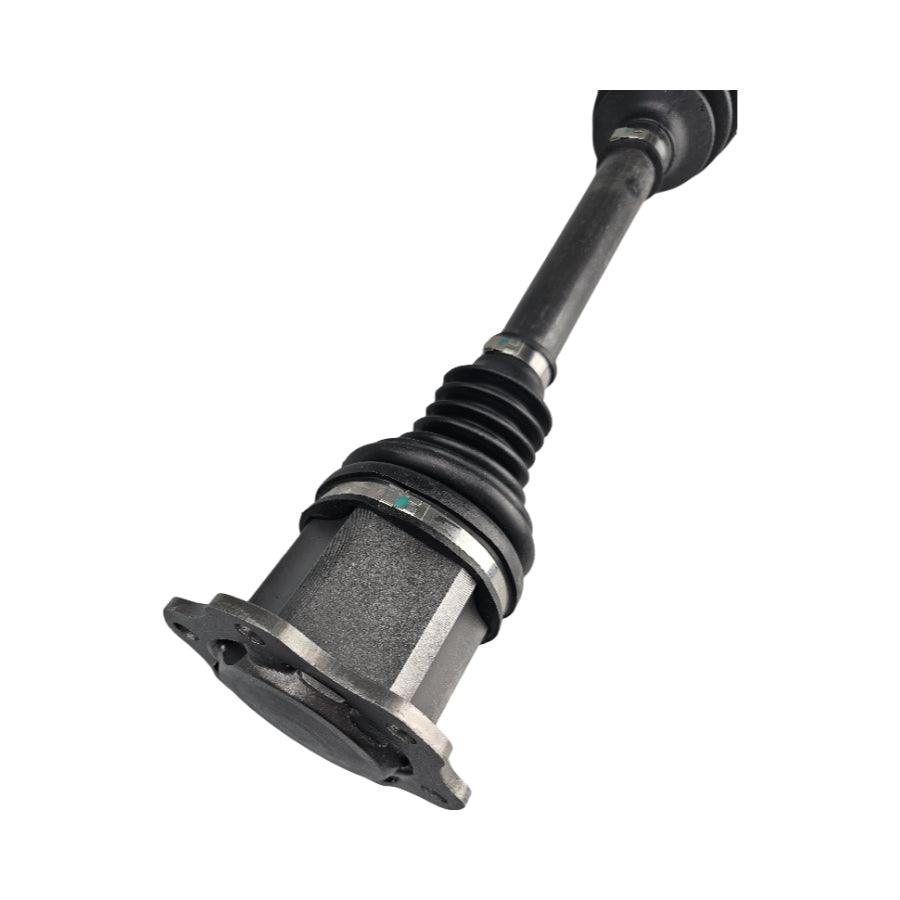

- Inboard Joint Type: Bolt On - 6 Bolts, Outside Diameter: 123mm
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
