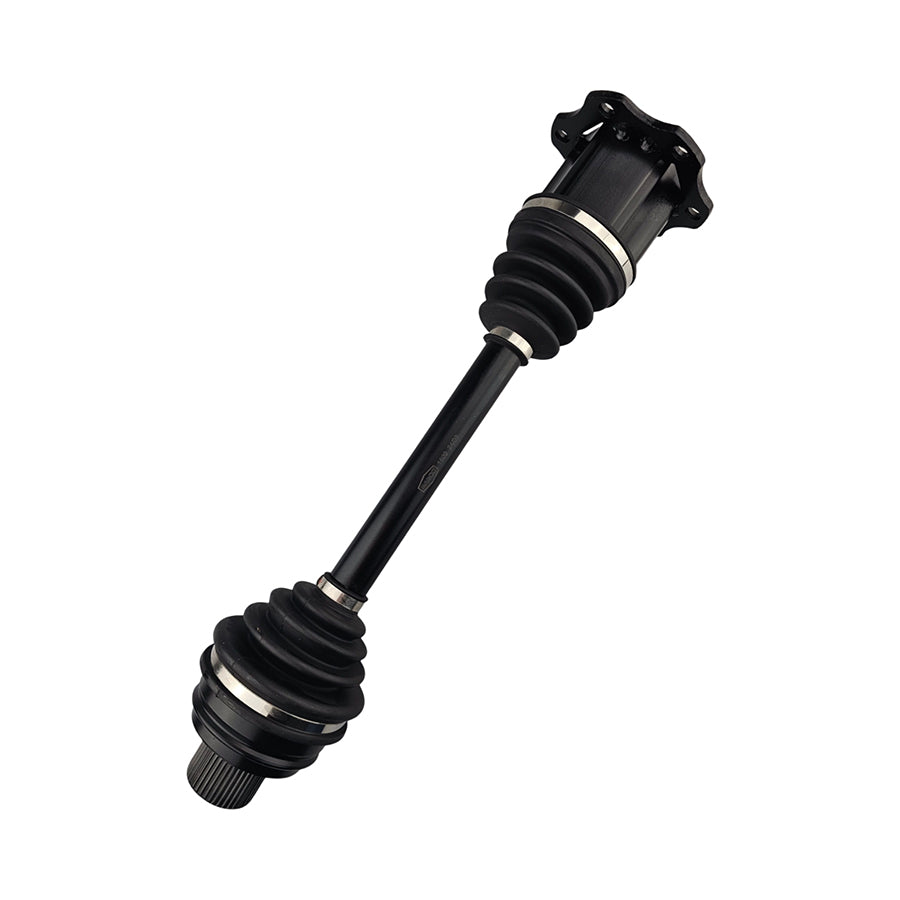

CV Axle Drive Shaft - Front Left or Right Hand Side CVT DCT Manual FWD AWD
***42 Spline Teeth, 6 Bolt Inner Joint - For Audi A4 B9, A4 F5 please check wheel side end of shaft if similar***
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment for:
- Audi A5 F5 2.0L AWD FWD DCT (03/2017 - Onward) 42 Teeth, 6 Bolt Inner Joint - Double Check Wheel Side Spline, Shape Might not Fit
Includes Sub-models 2.0 TFSI, 45 TFSI Quattro Sport, 45 Quattro S Line MHEV, 40 TFSI, 40 TFSI S Line MHEV, 45 TFSI Quattro S Line MHEV, 2.0 TDI Quattro Sport
- Audi A5 8T 3.2L 3.0L 2.0L 1.8L AWD FWD AT CVT DCT (10/2007 - 07/2017) 42 Teeth, 6 Bolt Inner Joint
Includes Sub-models 3.2 FSI, 3.2 FSI Quattro, 3.0 TDI Quattro, 2.0 TFSI Quattro, 2.0 TFSI, 3.2 FSI Quattro, 1.8 TFSI, Sportback 2.0 TFSI Quattro, Sportback 2.0 TDI, Sportback 2.0 TFSI, Sportback 1.8 TFSI, 2.0 TDI, 3.0 TFSI Quattro, Sportback 3.0 TFSI Quattro, Sportback 2.0 TFSI Quattro
Sizing and Specifications
- Length (Compressed): 465mm
- Mounting Bolt Centre to Centre: 104mm

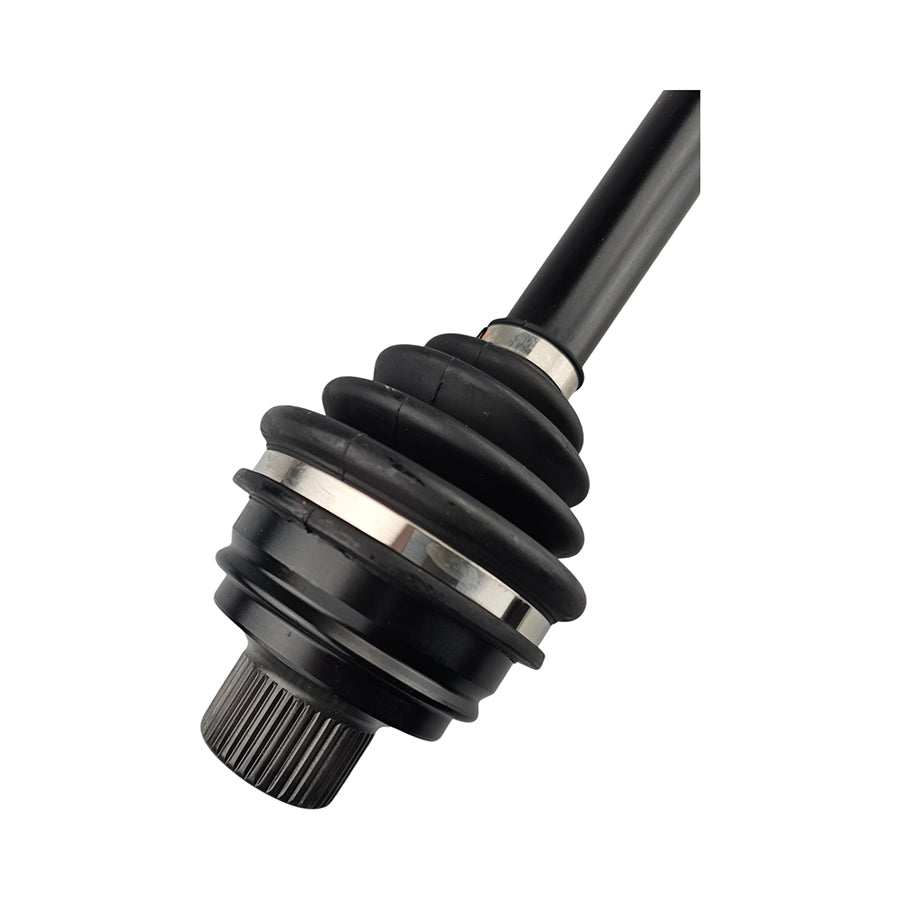

- Spline Count: 42T

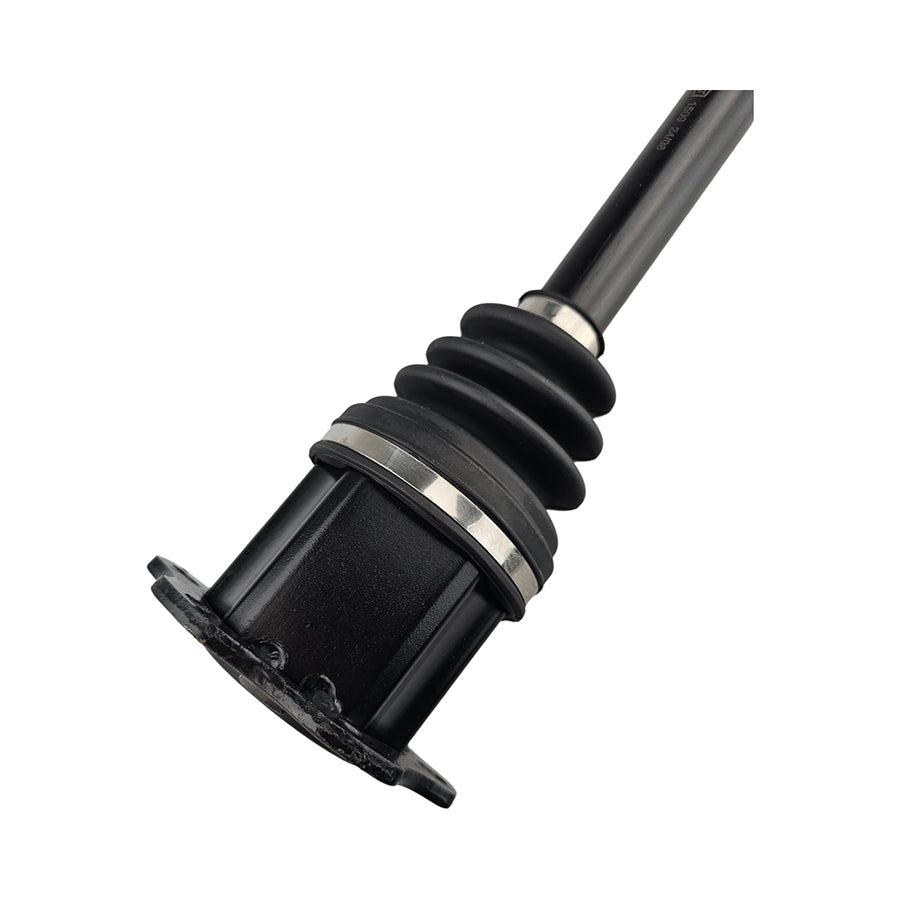

- Inboard Joint Type: Bolt On, 6 Bolts 10.5mm Diameter Hole
- Bolt On Flange Size: 123mm Outer Diameter
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
