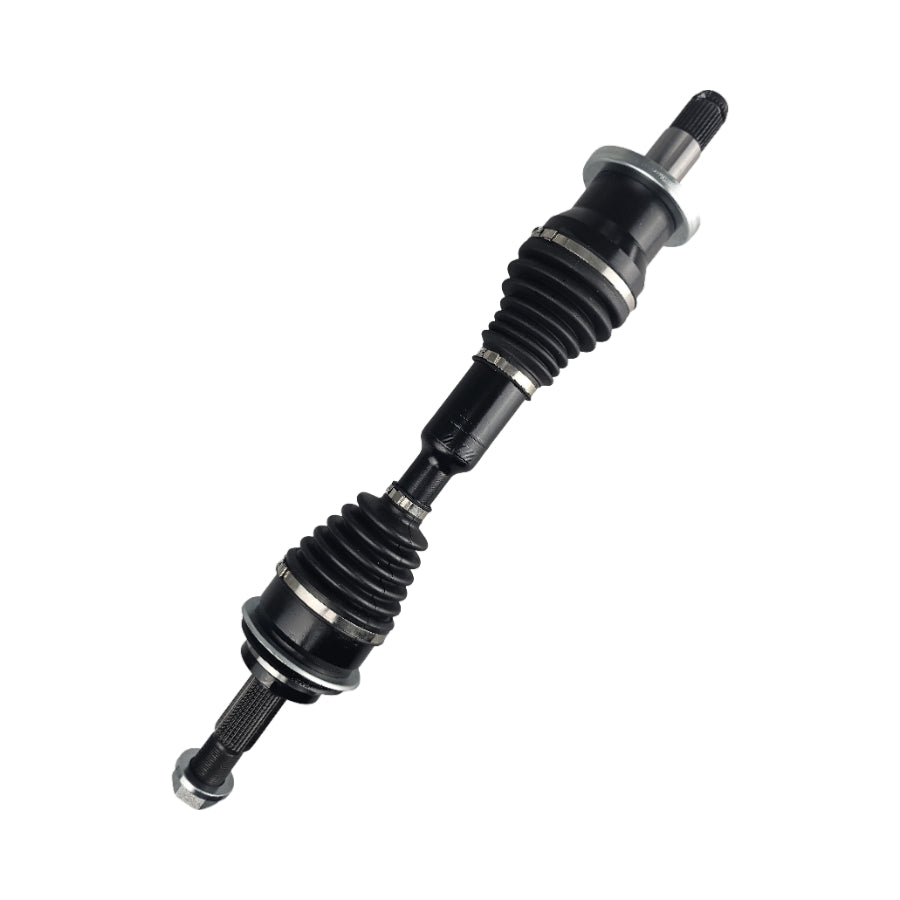

CV Axle Drive Shaft - Front Left- or Right-Hand Side 4WD Automatic/Manual
New Heavy Duty Telescopic Design - Sliding Extension Shaft with Roller Splines
For Lifted and Non-Lifted Vehicles, Compressed Length 630mm Extends to 687mm

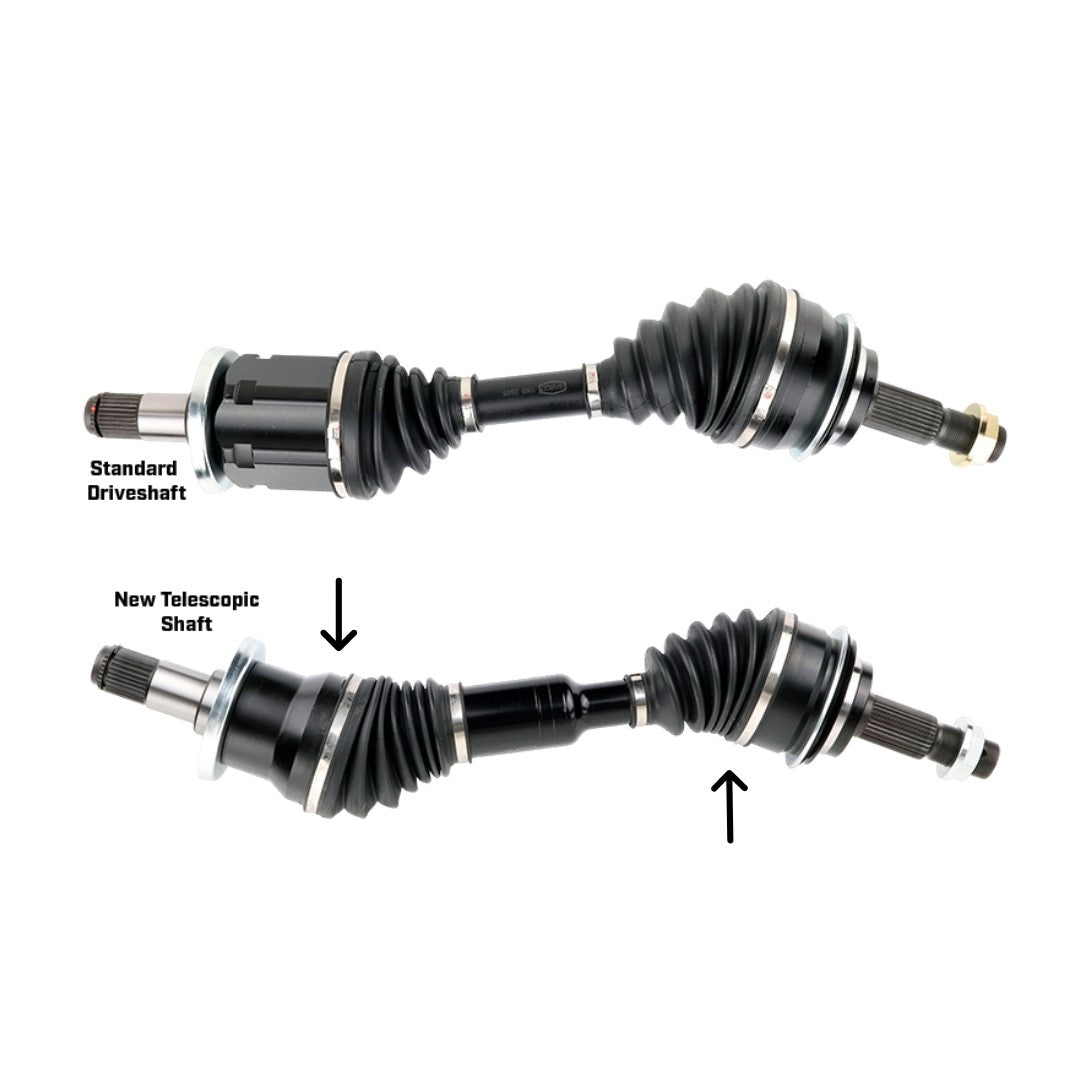

Telescopic CV shafts are designed to provide greater linear travel compared to standard CV shafts, allowing for more suspension articulation and reduced stress on components.
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Toyota Hilux GUN125 GUN125R 2.4L 2GDFTV 4WD MT AT (10/2015 - 04/2020)
Includes Sub-models Workmate, Workmate Extra Cab
- Toyota Hilux GUN126 GUN126R 2.8L 1GDFTV 4WD MT AT (10/2015 - Onward)
Includes Sub-models DR, SR5, SR5+, SR Extra Cab, Rugged, Rugged X, GR Sport, Cruiser
- Toyota Hilux GGN125 GGN125R 4.0L 1GRFE 4WD AT (07/2015 - 09/2017)
Includes Sub-models SR, SR5
- Toyota Fortuner GUN156 GUN156R 2.8L 1GDFTV 4WD MT AT (11/2015 - Onward)
Includes Sub-models GX, GXL, Crusade, GX Nav, Limited
Sizing and Specifications
- Length: 630mm (Compressed) - 687mm (Extended)
- Spline Count - Outer/Wheel Side: 30T
- Spline Count - Inner/Diff Side: 30T
- Inboard Joint Type: Ball
- Outboard Joint Type: Ball
- Inner Joint Oil Seal ID: 47mm
- Hub Nut Style: M28 x 1.5
- Telescopic Design: Centre Bar Housing Has an Extending Roller Spline
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
