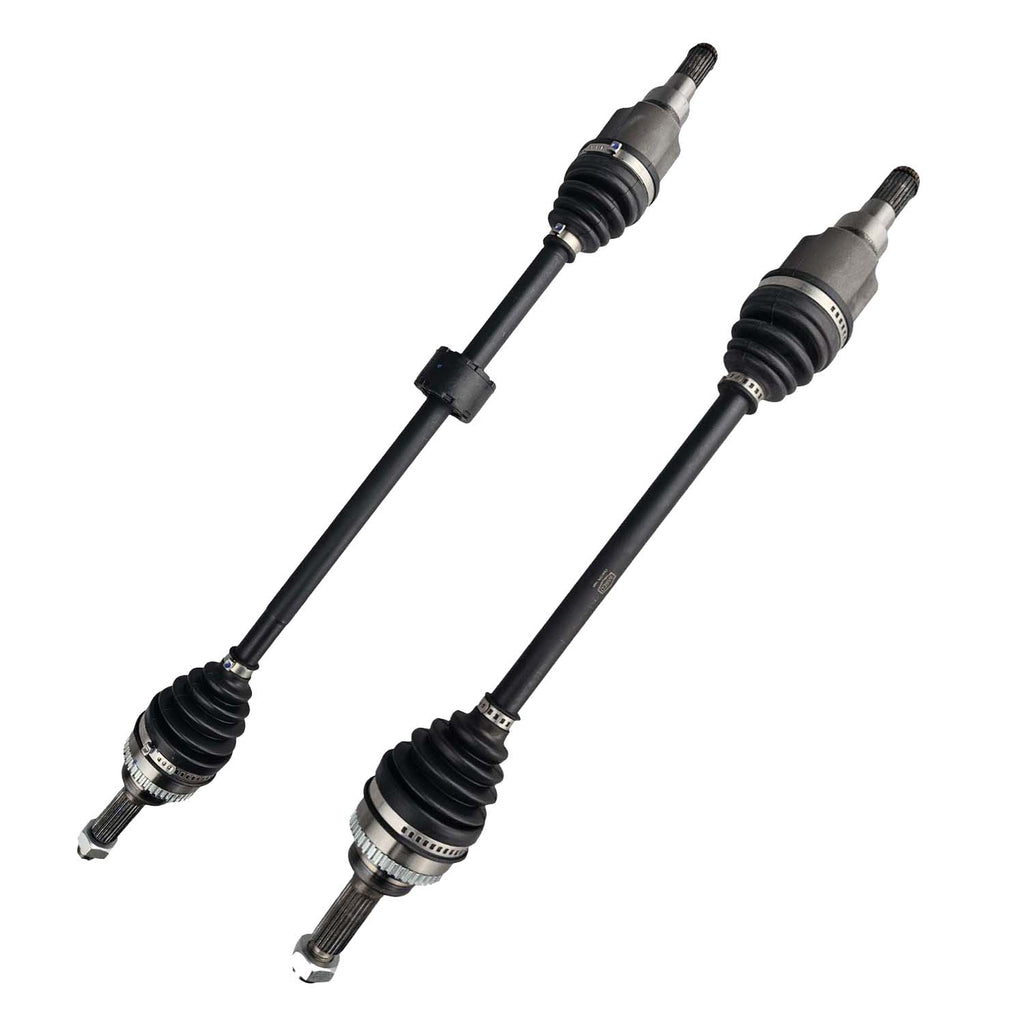

Brand New Pair CV Drive Shaft
***Pair | Suits Manual Transmission | Please Check OE Before Fitting***
Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.
Vehicle Fitment
- Suzuki Alto GF FC31S (07/2009~01/2015) 1.0L Petrol K10BN
- Suzuki Celerio LF LFE42S (02/2015~02/2018) 1.0L Petrol K10B
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
-
ABS: Yes
-
Length (Compressed): L: 660 / R: 816 mm
-
Spline Count - Outer/Wheel Side: 23
-
Spline Count - Inner/Diff Side: 22
-
Inboard Joint Type: Tripod
-
Outboard Joint Type: Ball
-
ABS Ring Teeth: 43
-
Drive Shaft Seal (Inner) ID: 40 mm
-
Hub Nut: M18 x 1.5
What's Included
All components include a 12 month/20,000km warranty and support from our specialist team.
