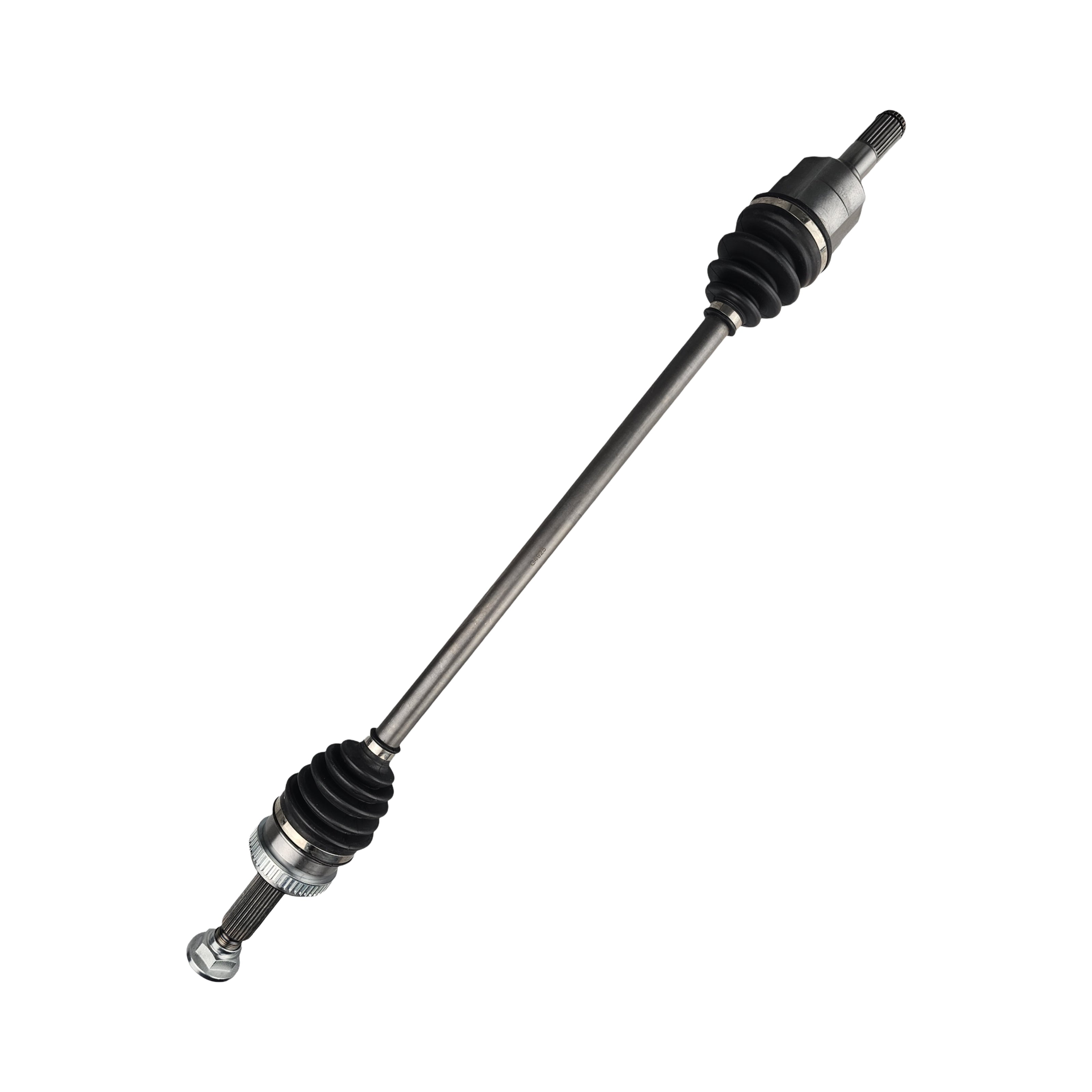

Brand New Left Rear CV Drive Shaft
***Rear Left Hand Side, ABS, 27T Wheel Side Splines***
Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.
Vehicle Fitment
- Hyundai iX35 LM (02/2010~06/2015) 2.0L Diesel D4HA
- Hyundai iX35 LM (02/2010~09/2013) 2.4L Petrol G4KE
- Hyundai iX35 LM (10/2013~06/2015) 2.4L Petrol G4KJ
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
-
Length (Compressed): 837 mm
-
Spline Count - Outer/Wheel Side: 27
-
Spline Count - Inner/Diff Side: 25
-

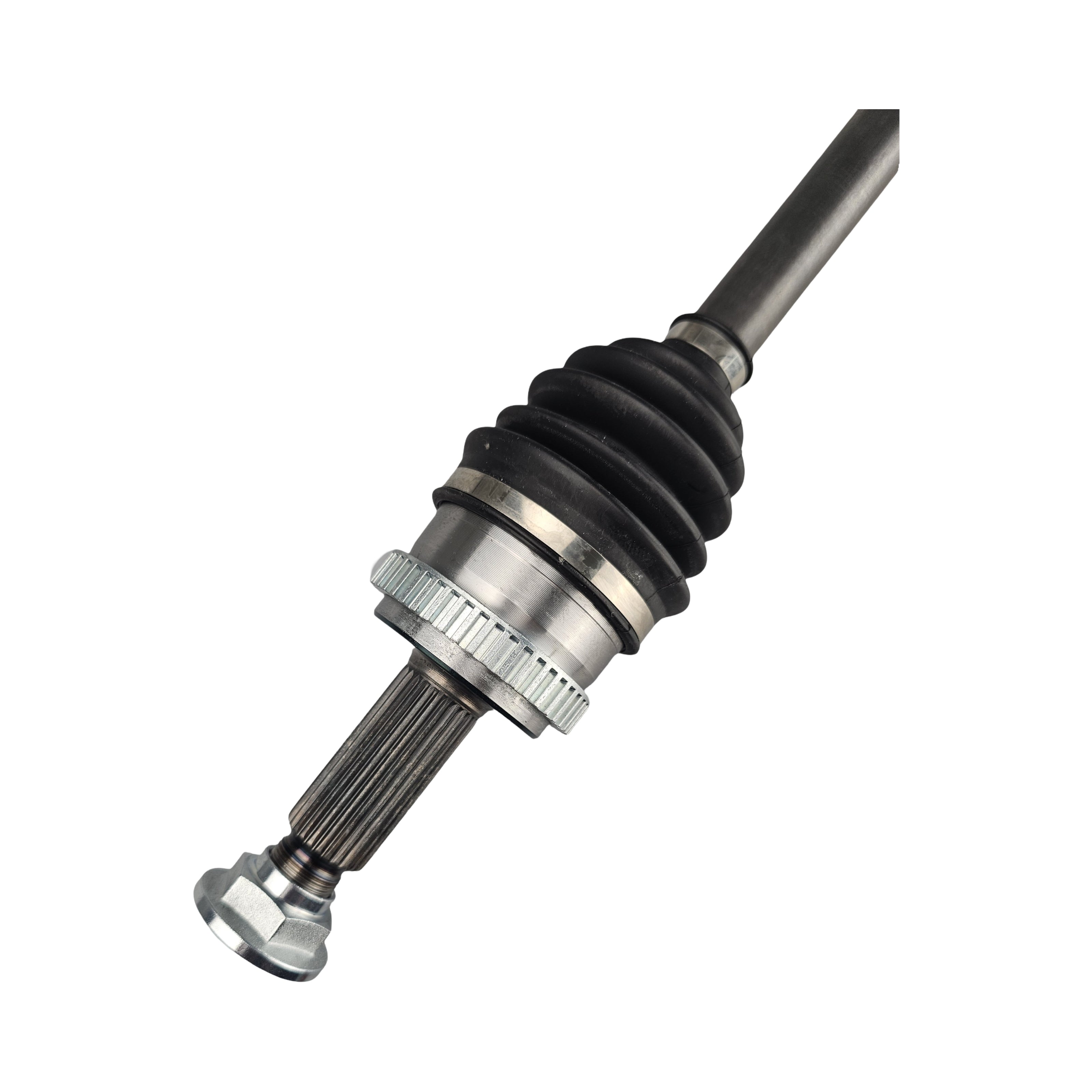

Outboard Joint Type: Ball
-

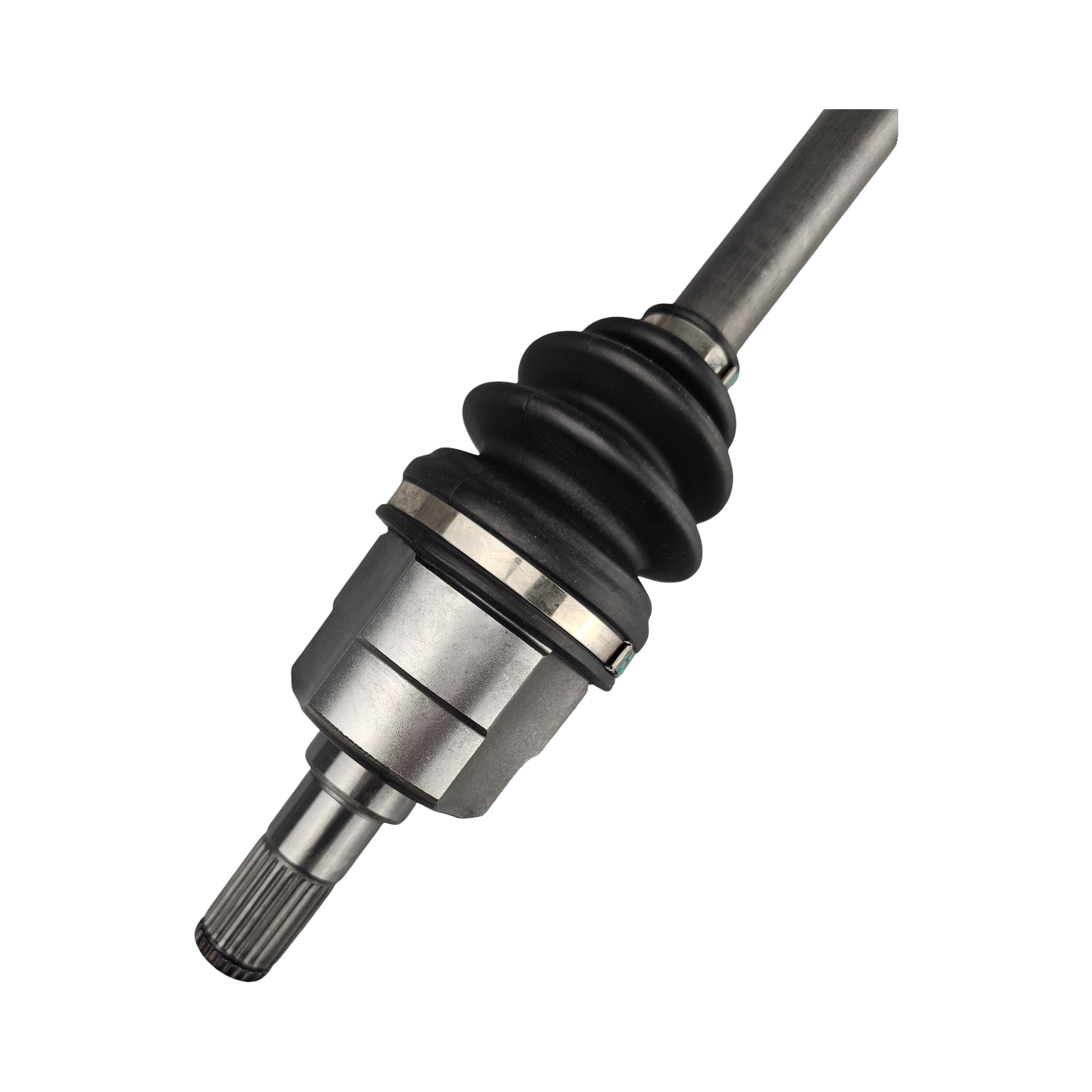

Inboard Joint Type: Tripod
-
ABS Ring Teeth: 48
-
Hub Nut: M22 x 1.5
-
ABS: Yes
What's Included
All components include a 12 month/20,000km warranty and support from our specialist team.
