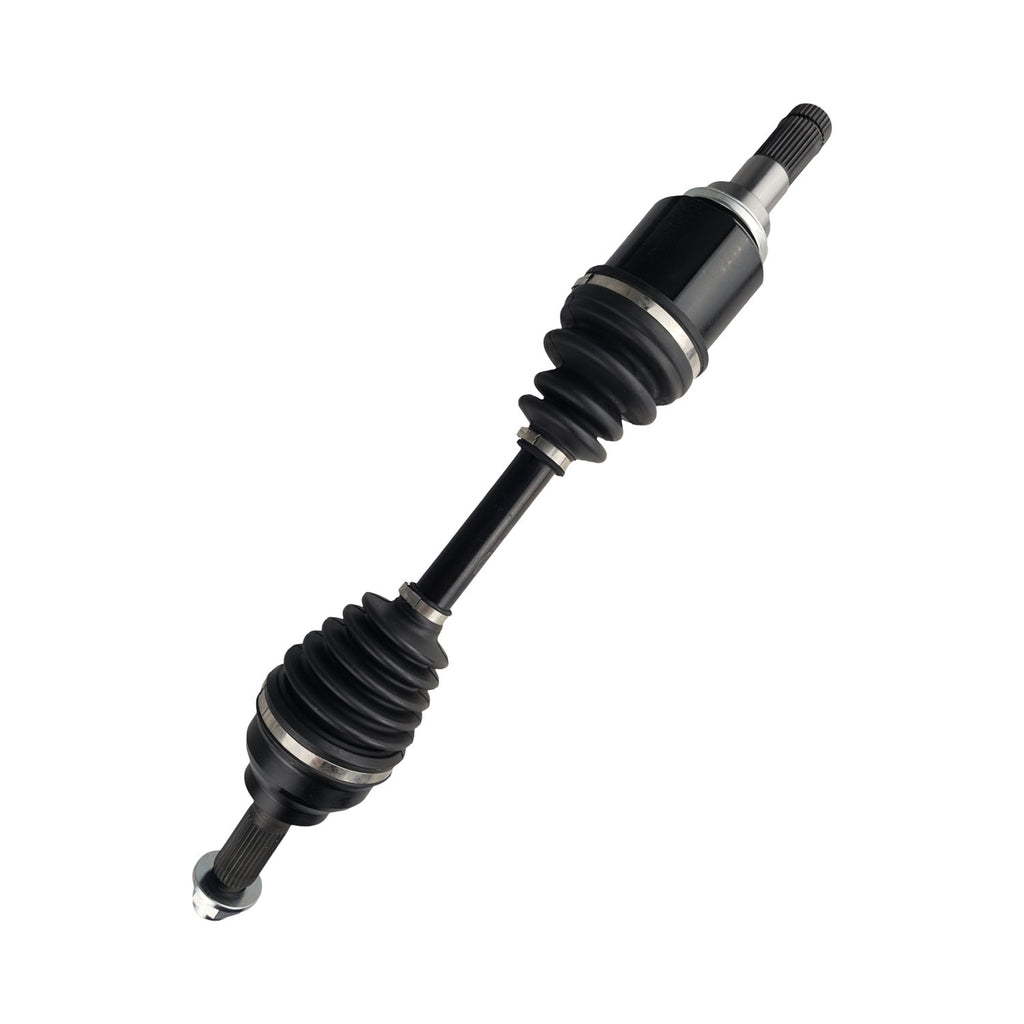

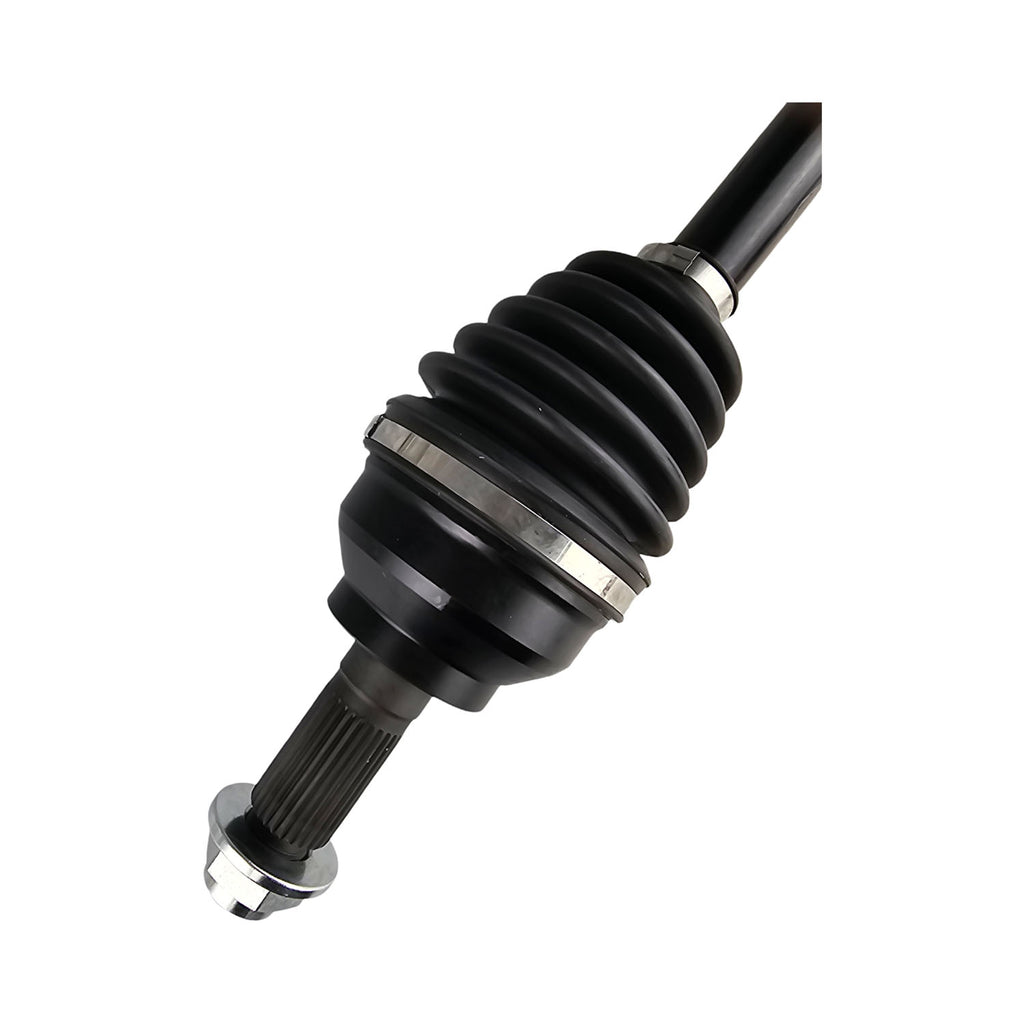

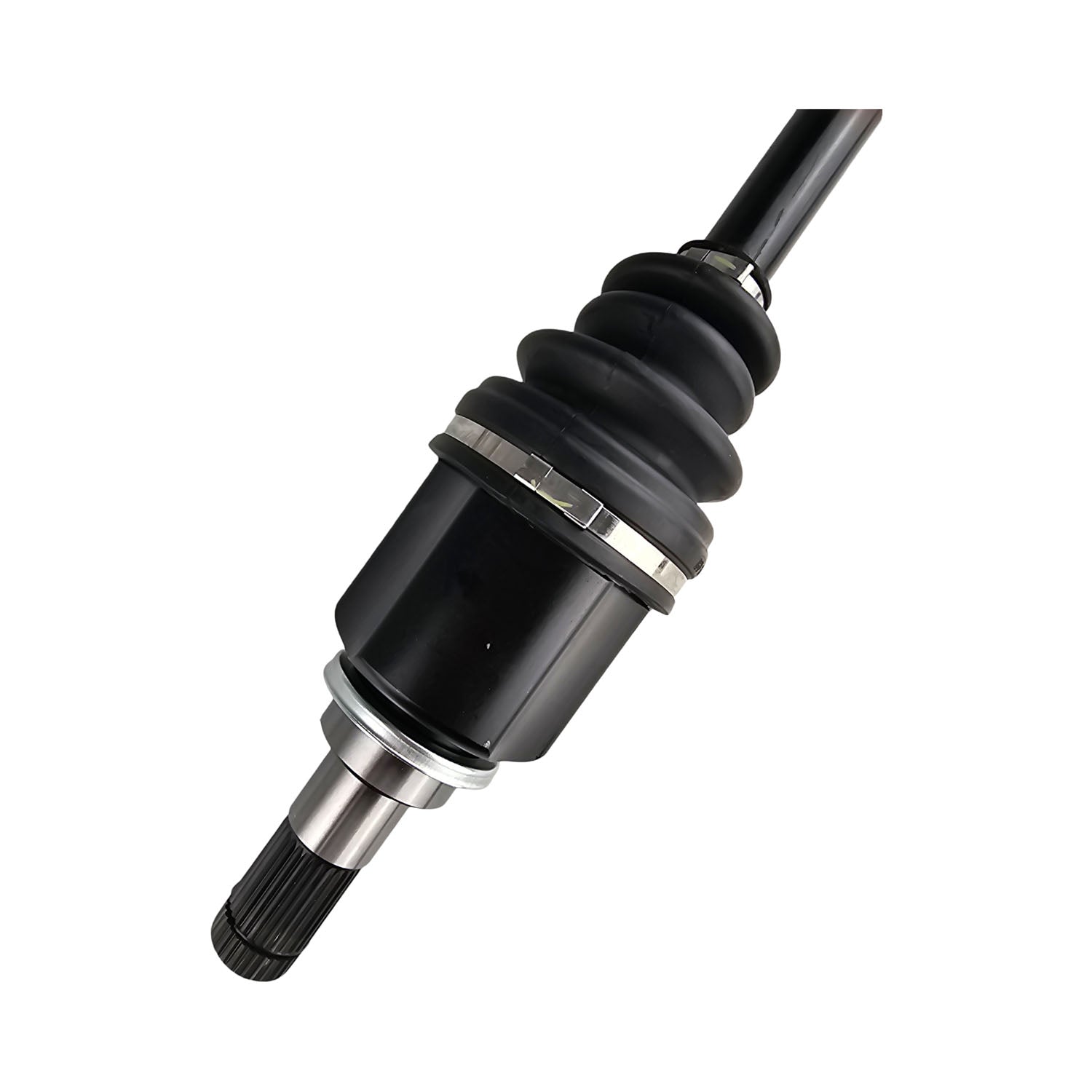

CV Axle Drive Shaft - Front Left Hand Side
Manual FWD - Hub Nut Style Outer Joint
***Manual, please check vehicle fitment info dates and measurements***
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Mazda Mazda3 MPS BK BK3S 05/2006~05/2009 2.3L Petrol L3VDT
- Mazda Mazda3 Diesel BL BLRS 11/2009~01/2014 2.2L Diesel R2T
- Mazda Mazda3 Diesel BL BLRP 11/2009~01/2014 2.2L Diesel R2T
- Mazda Mazda3 MPS BL BL3S 07/2009~01/2014 2.3L Petrol L3VDT
Sizing and Specifications
- Length (Compressed): 598mm
- Spline Count - Outer/Wheel Side: 28T
- Spline Count - Inner/Diff Side: 30T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Driver Shaft Seal - Inner ID: 50mm
- Hub Nut Style: M22 x 1.5
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
