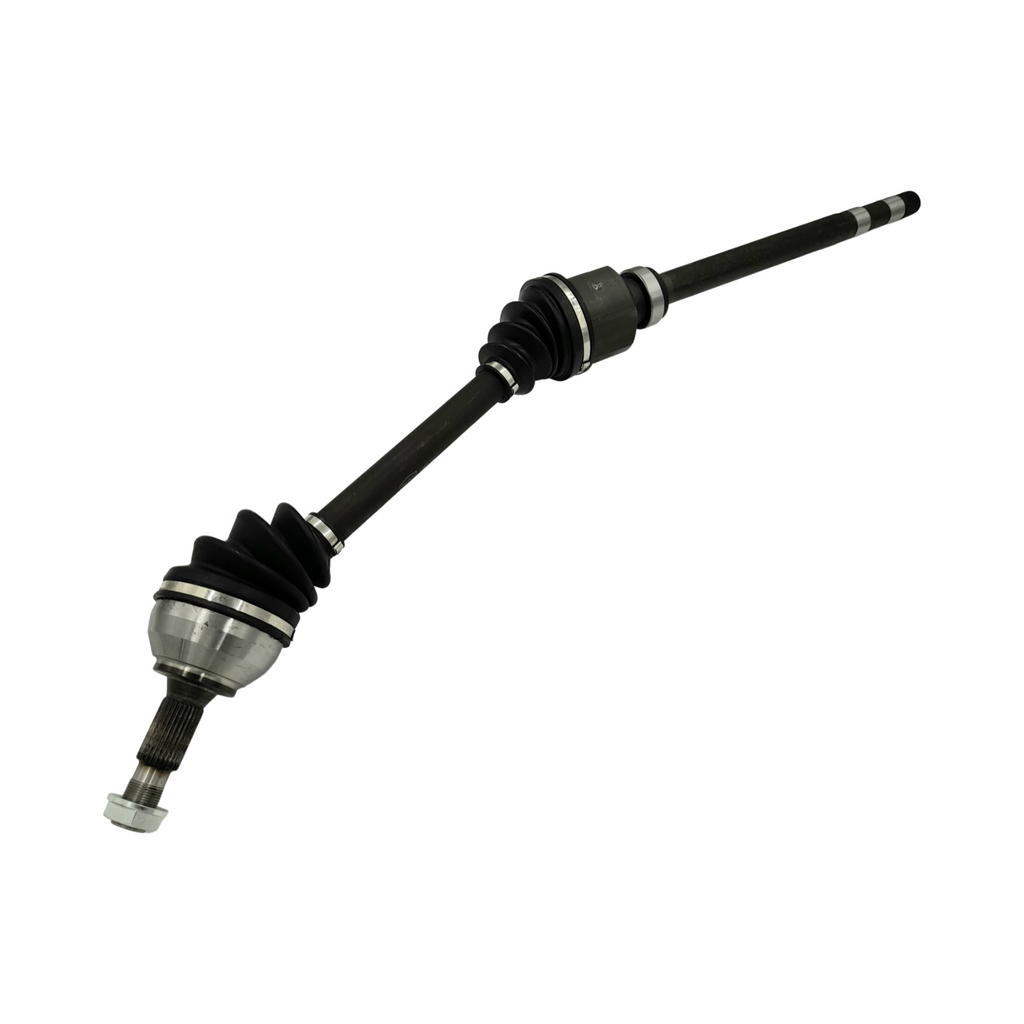

CV Axle Drive Shaft - Front Right Hand Side Manual Automatic FWD
Please check notes for transmission
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Peugeot 407 2.0L Diesel DW10BTED4 & DW10CTED4 (2005 - 2011)
Includes Submodels SR HDI, ST HDI, Comfort, Executive, Touring Executive
- Peugeot Expert 2.0L Diesel DW10BTED4, DW10CTED4 & DW10UTED4 (2008 - 2016) Manual Transmission Only
Includes Submodels HDi, SWB, HDi LWB, HDi Professional LWB
- Citroen C5 & Dispatch 2.0L Diesel DW10BTED4 & DW10UTED4 (2007 - 2012)
Includes Submodels 2.0 HDI, Comfort, Exclusive, 2.0 HDI Touring, SWB
-
Fiat Scudo 2.0L Diesel 120MULTI (2008 - 2016)
Includes Submodels
Sizing and Specifications
- Length (Compressed): 980mm
- Spline Count - Outer/Wheel Side: 28
- Spline Count - Inner/Diff Side: 37
- Extension Shaft Length From Outside of Bearing: 398.5mm
- Extension Shaft Bearing Width: 16mm
- Bearing Outer Diameter on Extension Shaft: 62mm
- Hub Nut: M24 x 1.5
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
