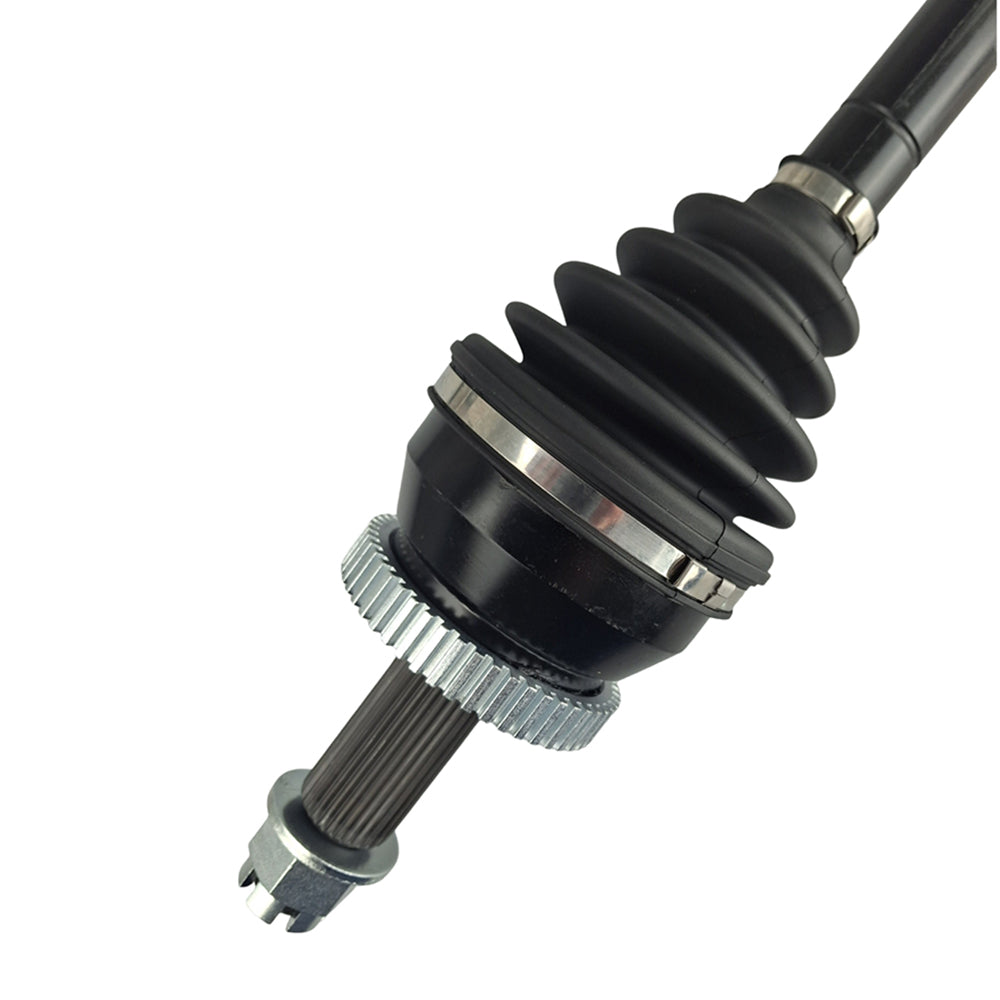

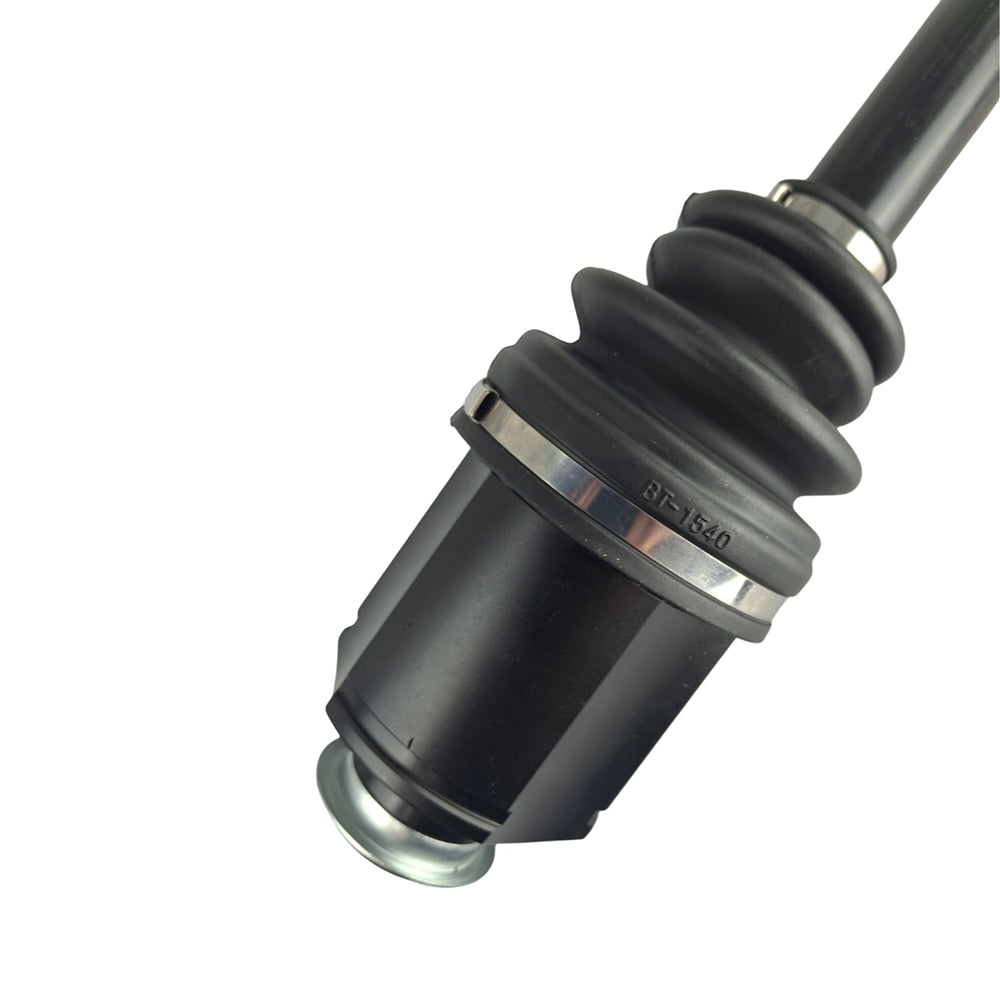

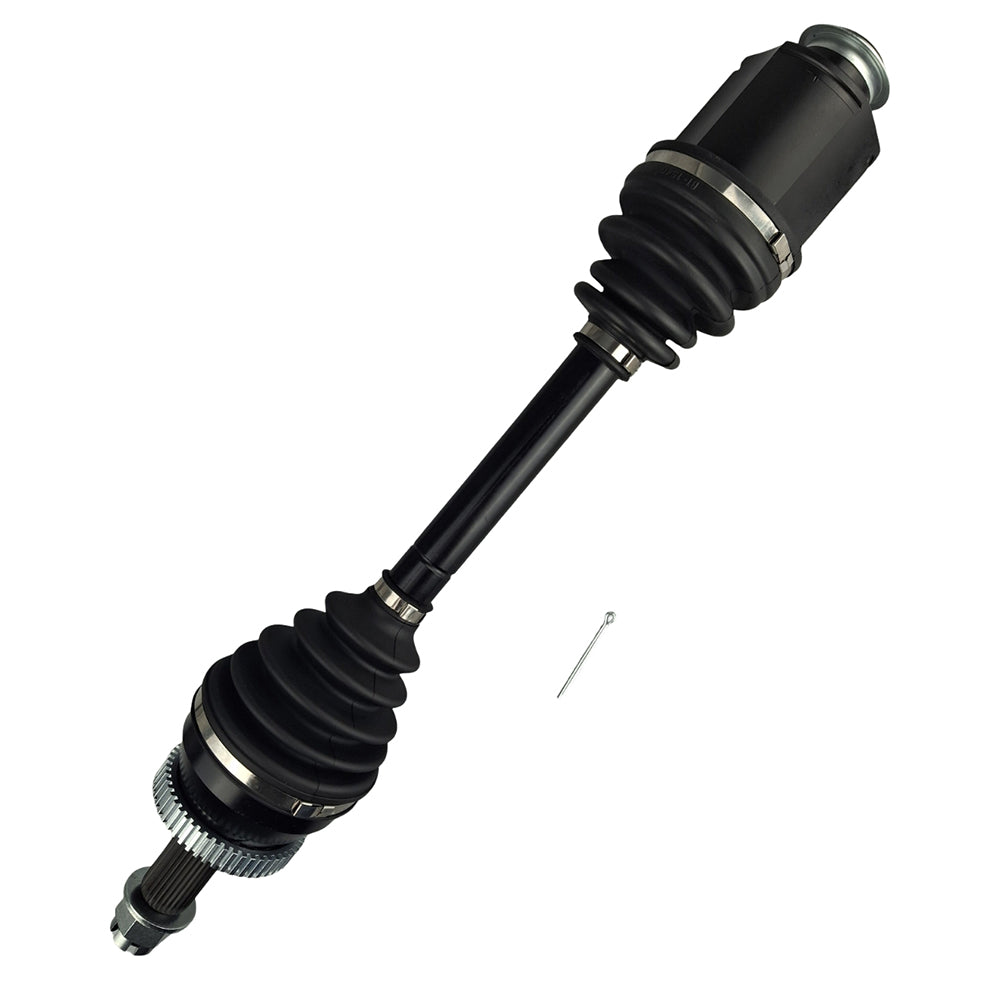

CV Axle Drive Shaft - Right Hand Side AWD 4WD
****Please note customer will need to RE-USE extension shaft****
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Hyundai Santa Fe CRDI CM SH81X 2.2L Diesel D4HB [11/2009~08/2012]
Sub Models Include Elite CRDI, Highlander,SLX CRDI, Trail CR
- Hyundai Santa Fe CRDI TM S381C/S281C 2.2L Diesel D4HB [06/2018~10/2020]
Sub Models Include Elite, Highlander CRD
Kia Sorento UM PHB1B 2.2L Diesel D4HB [06/2015~06/2020]
- Kia Sorento XM KU814/KT814 2.2L Diesel D4HB [10/2009~05/2015]
Sub Models Include AO Edition, Black Edition, GT-Line, Platinum,Si, Sui Fleet, SLI, Sport.
Sizing and Specifications
- Length(Compressed): 987.5mm
- Spline Count - Outer/Wheel Side: 30T
- Spline Count - Inner/Diff Side: 28 T
- ABS Ring Teeth : 52
- Nut: M22 x 1.5
- Inboard Joint Type: TBA
- Outboard Joint Type: TBA
What's Included
- 1 x CV Shaft RH Side YOU WILL NEED TO RE-USE YOUR EXTENSION SHAFT
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
