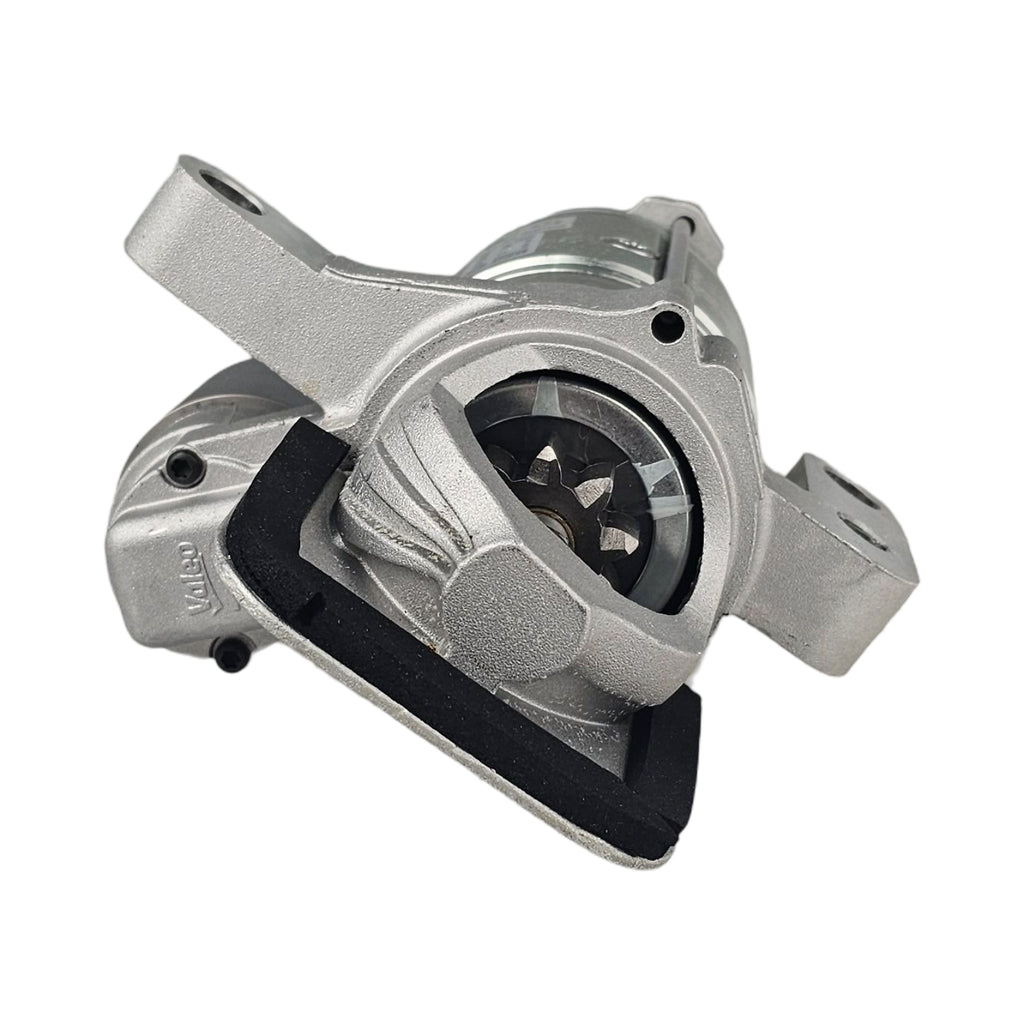

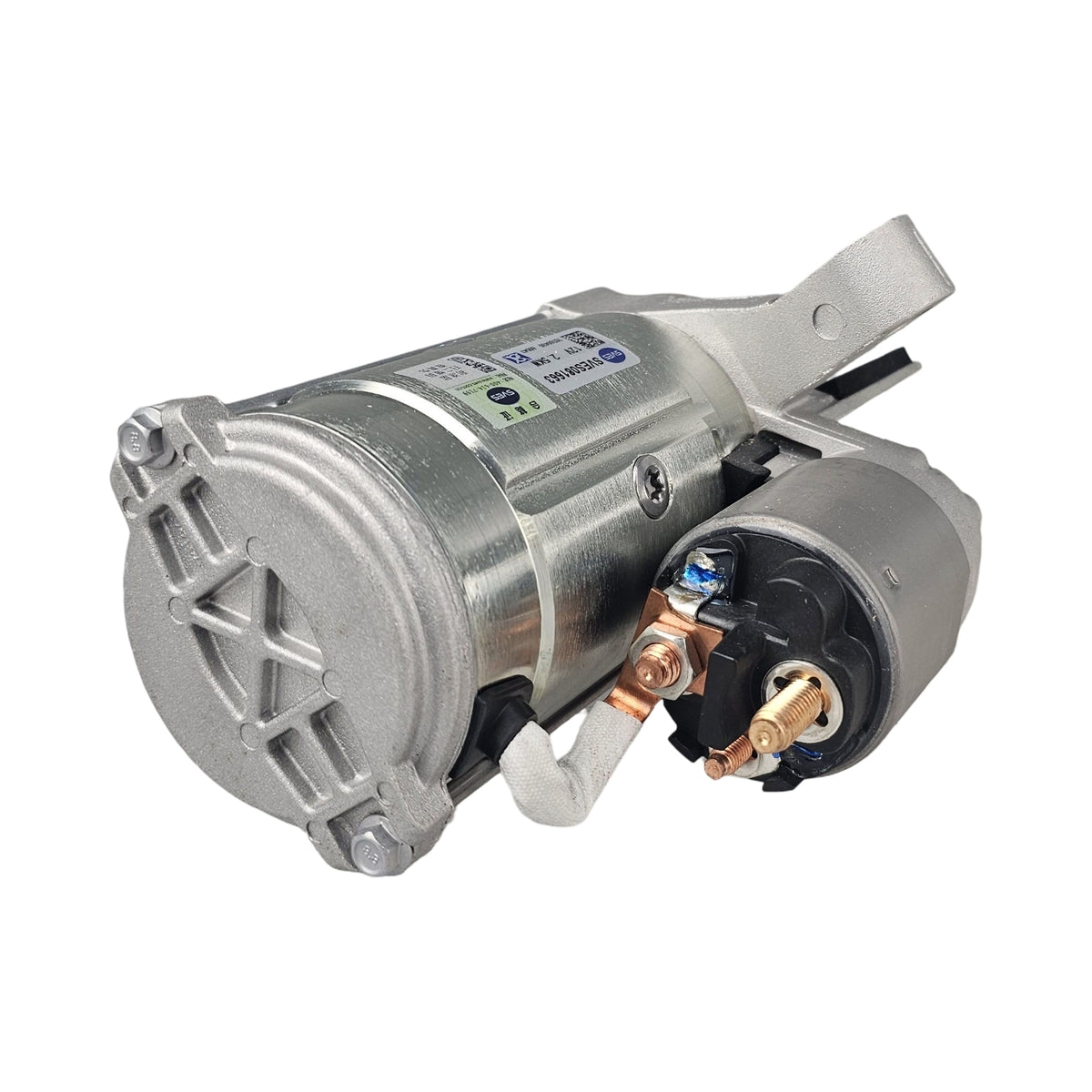

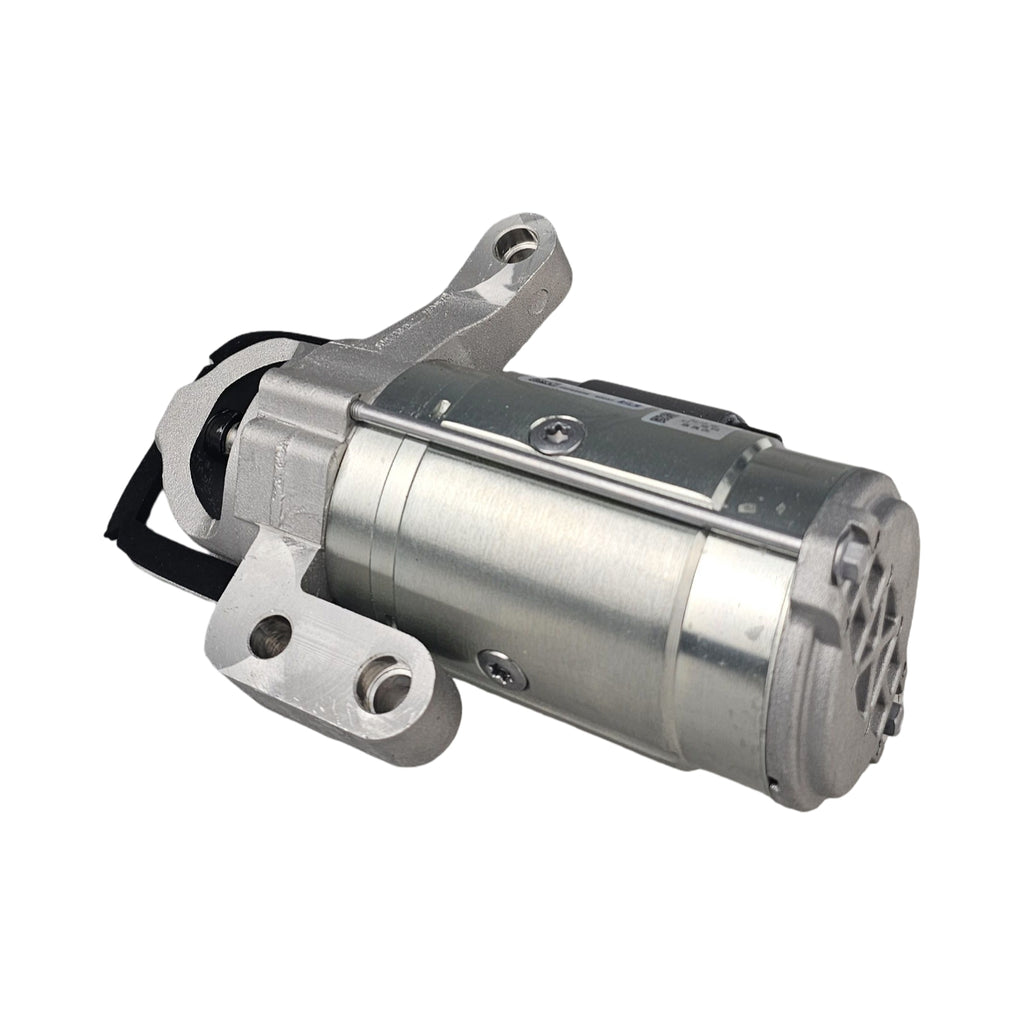

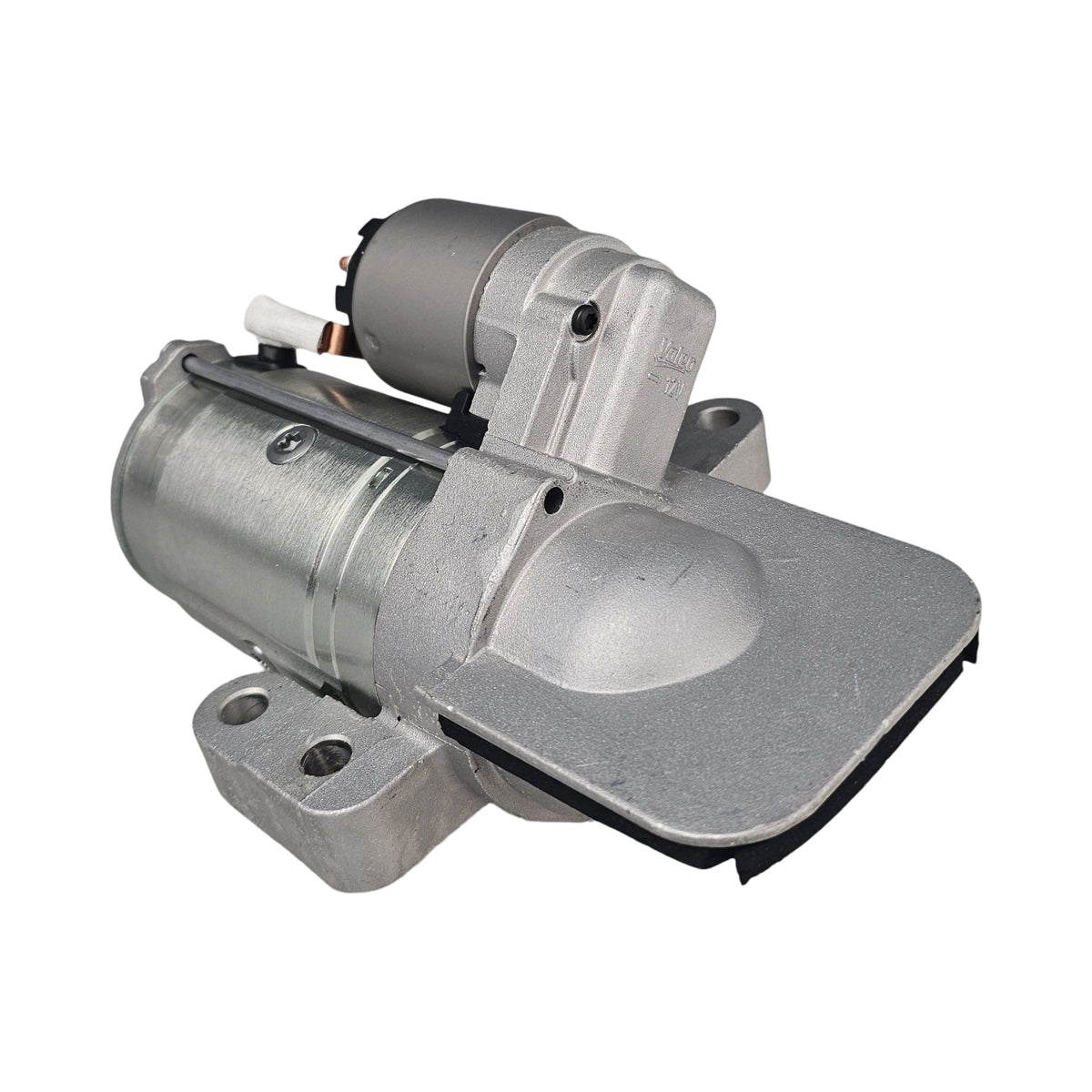

One Brand New Starter Motor
Starter motors that set the standard in automotive excellence. Our products are crafted in accordance with stringent
international quality standards (ISO/TS16949), ensuring reliability and superior performance for a wide range of
vehicles.
Vehicle Fitment
-
LDV
- D90 EXECUTIVE D20 (04/2020~2027 – SC20M – 2.0L Diesel): SV9A
- D90 (04/2020~2027 – SC20M218Q5 – 2.0L Diesel): SV9A
- DELIVER 9 (03/2019~2027 – SC20M – 2.0L Diesel)
- SV63B, SV63D – includes LWB, LWB MID/HIGH ROOF, MWB MID ROOF
- DELIVER 9 (01/2024~2027 – SC20M177Q6 – 2.0L Diesel): SV63D
- G10 (07/2021~2027 – SC20M163 – 2.0L Diesel): SV7A, SV7C
- G10 (07/2021~2027 – SC20M163Q5 – 2.0L Diesel): SV7A, SV7C
- T60 TRAILRIDER 2 (01/2020~08/2021 – SC20M163 – 2.0L Diesel)
- T60 (01/2020~2026 – SC20M163Q5 – 2.0L Diesel): SK8C – includes TRAILRIDER 2
- T60 (08/2021~2027 – SC20M218 – 2.0L Diesel)
- T60 (08/2021~2027 – SC20M218Q5 – 2.0L Diesel): SK8C – includes DTT 4WD
⚠️ Important Notes for You: We strongly advise using the Australian Number Plate lookup to confirm
fitment.
What's Included
Sizing and Specifications
-
Voltage: 12 V
-
KW: 2.5 kW
-
Rotation Direction: CW
-
Pinion Teeth: 9 T
-
Pinion at Rest: 10 mm
-
Pinion Diameter: 29 mm
-
Overall Length: 160 mm
-
Mounting Bolt Centre-Centre: 135 mm
-
Mounting Hole Diameter: 10 x 13 mm
-
Flange Diameter: 70 mm
Backed by our 12 month/20,000km warranty and technical support.
