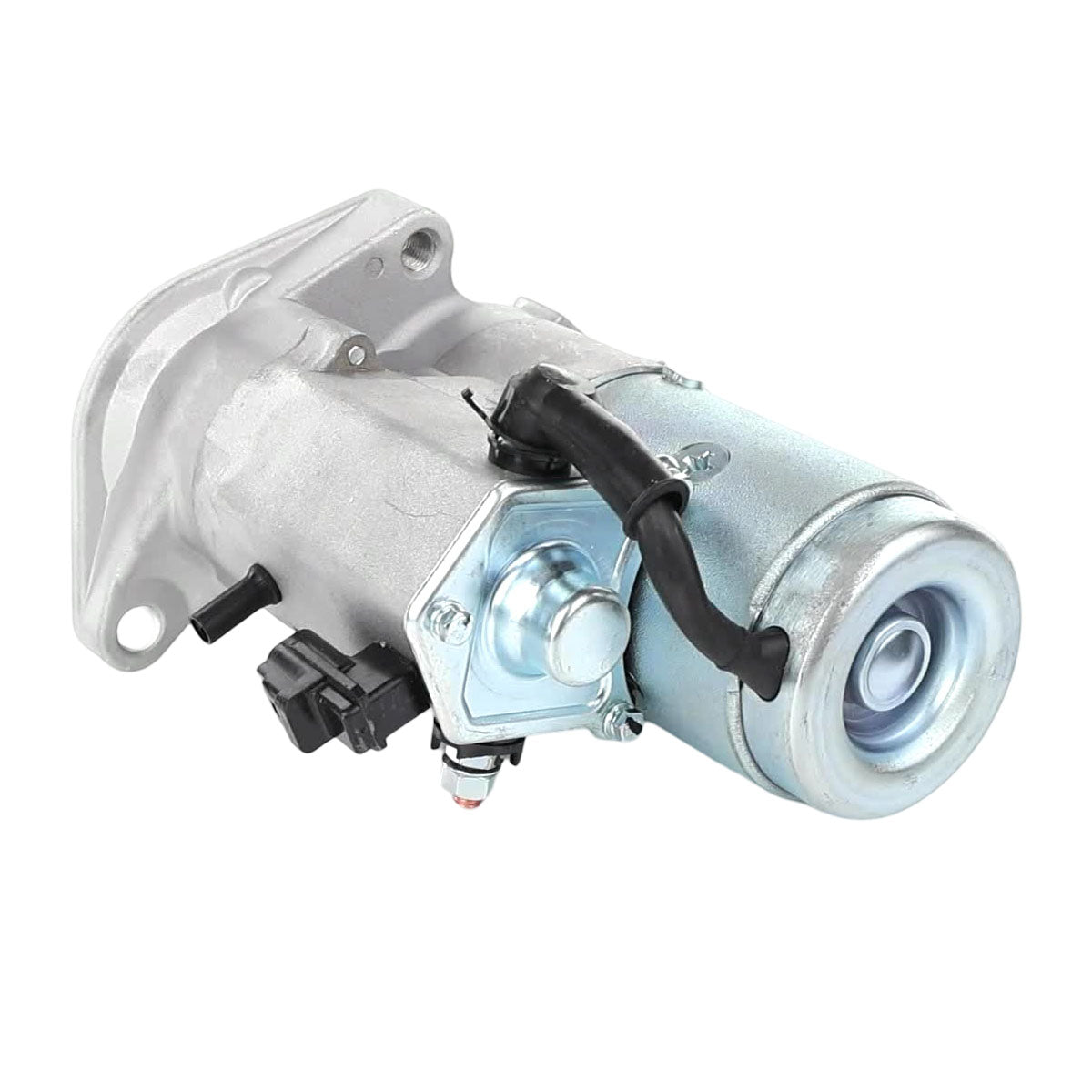

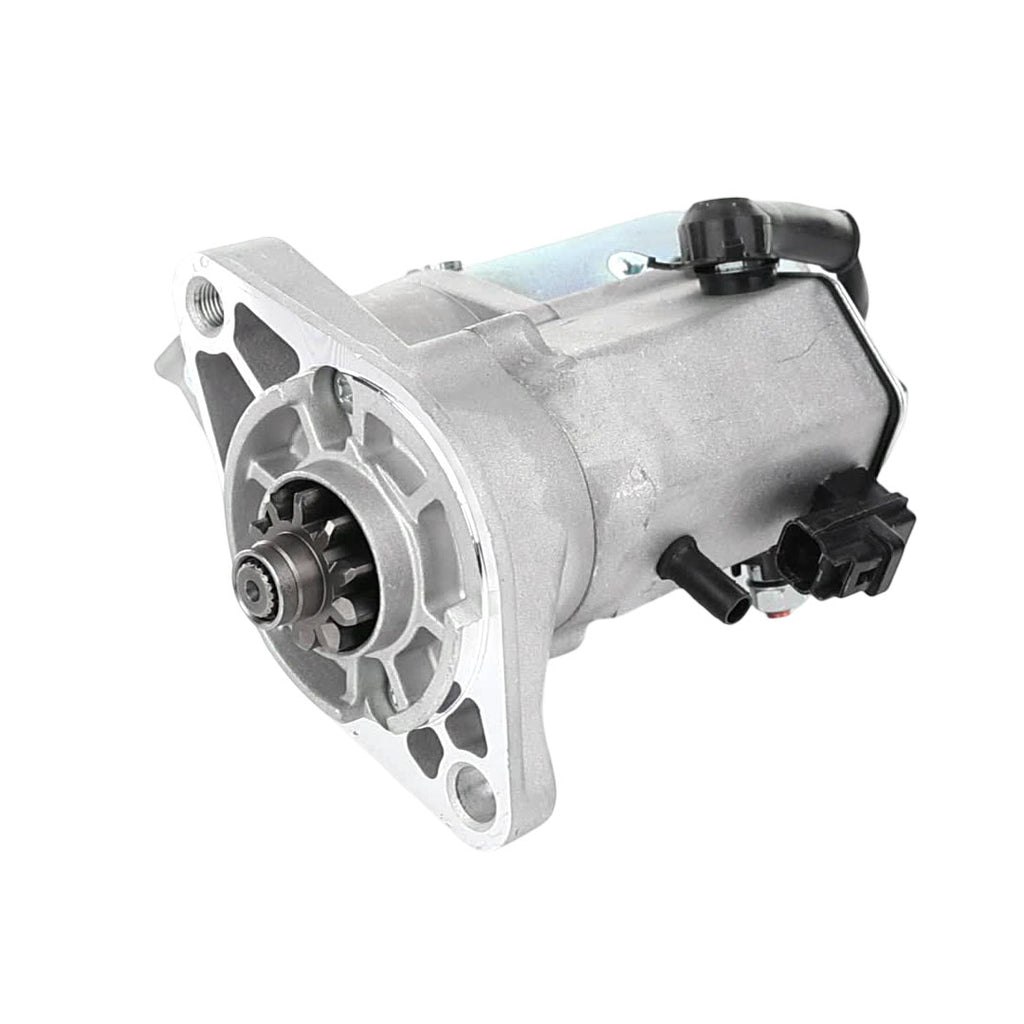

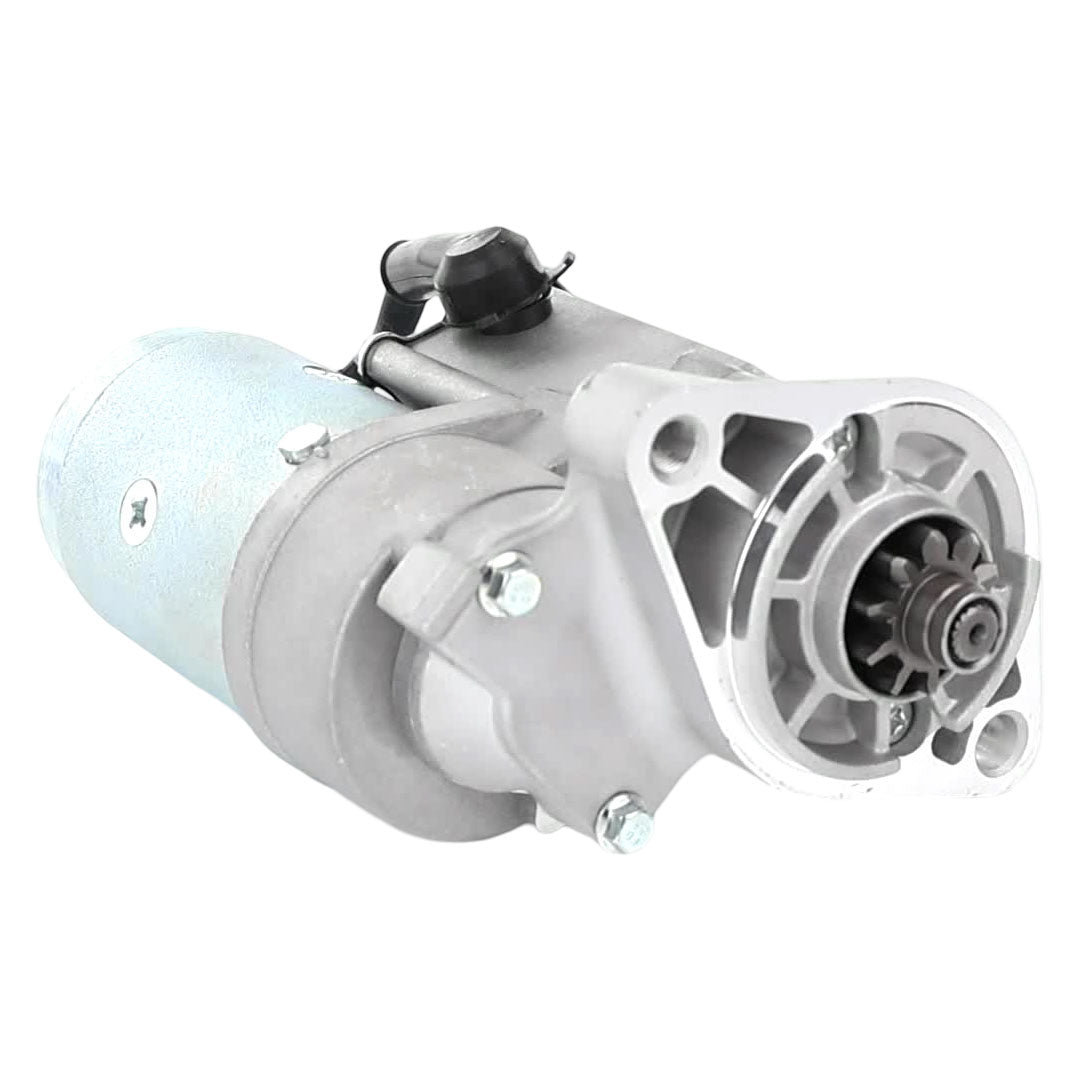

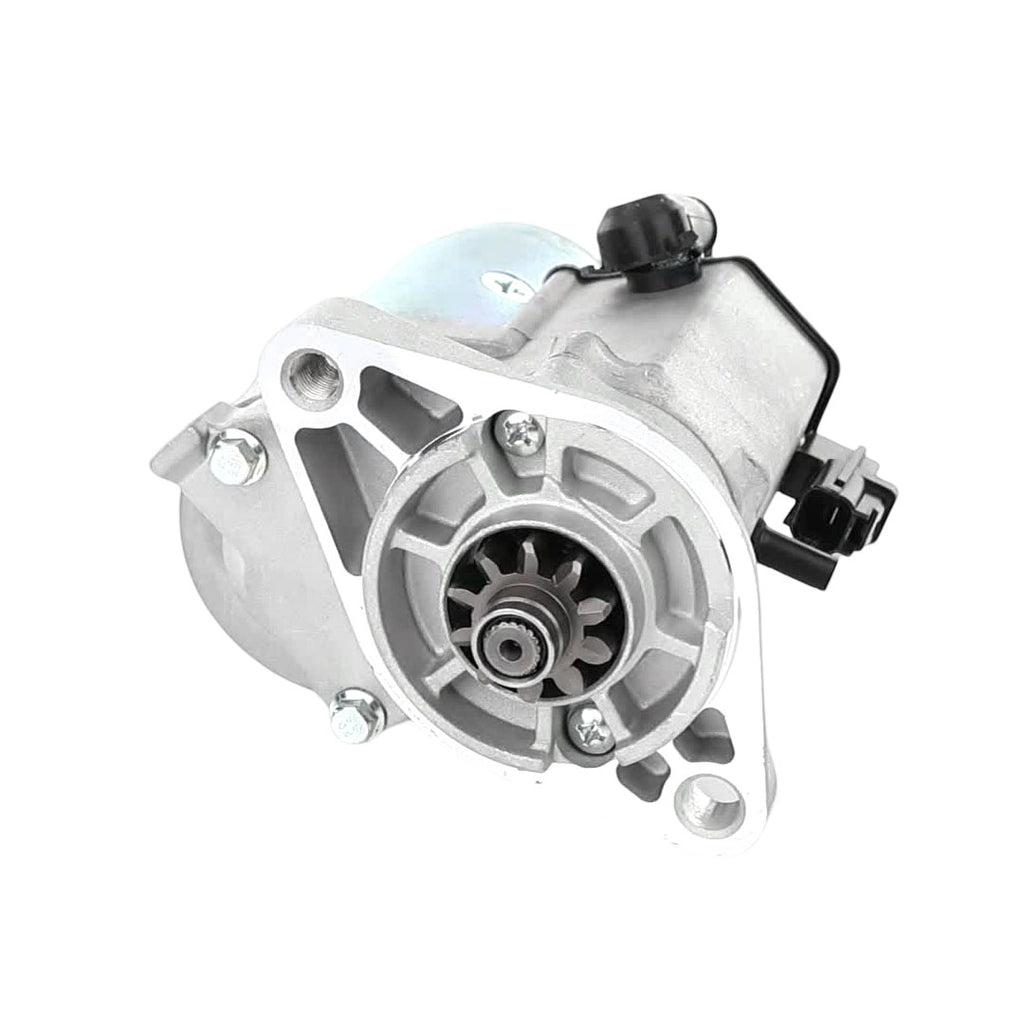

One Brand New Starter Motor

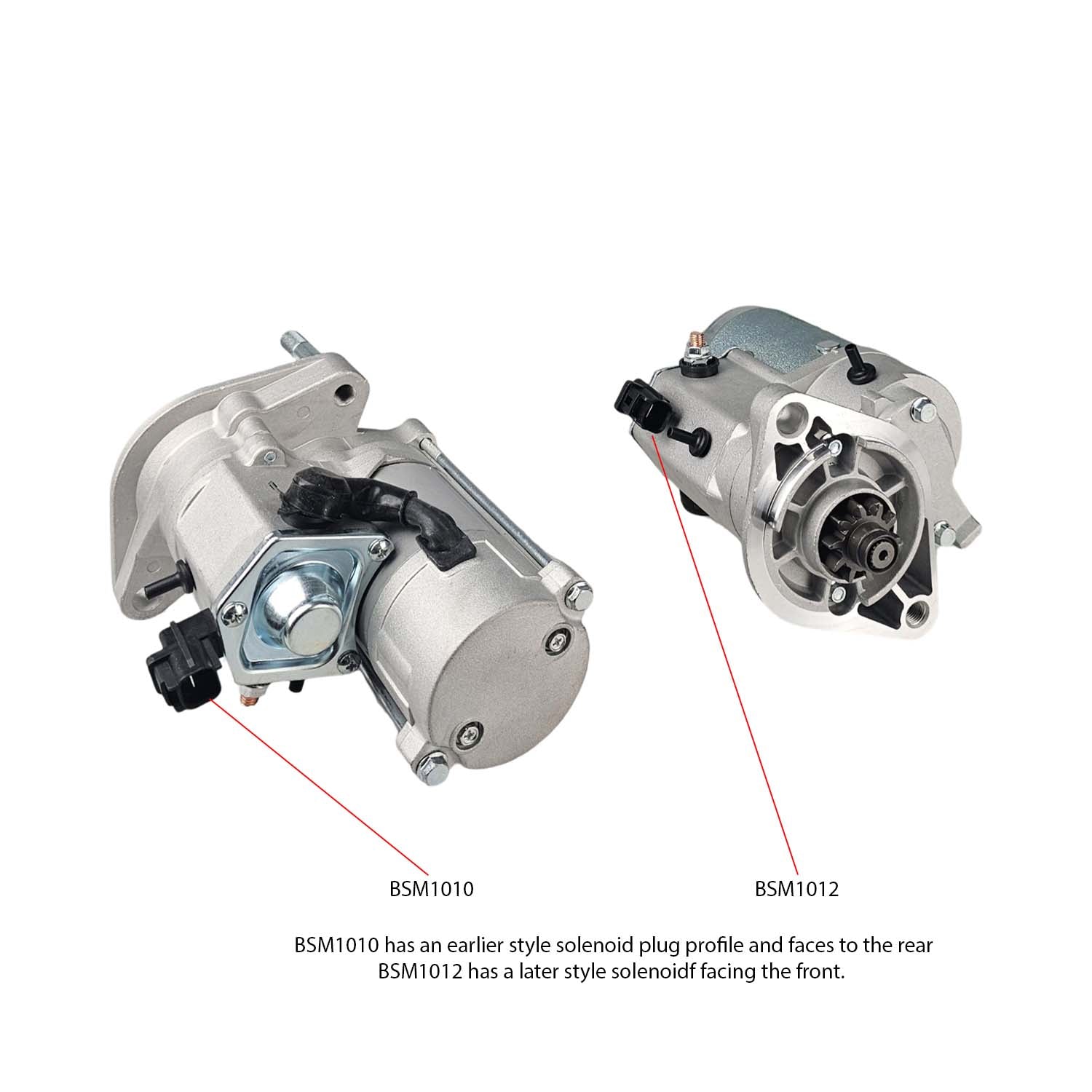

Later Style Solenoid (Plug Profile), please check BSM1010 for earlier solenoid style plug
Allied Auto Online is proud to offer top-tier starter motors that set the standard in automotive excellence. Our products are crafted in accordance with stringent international quality standards (ISO/TS16949), ensuring reliability and superior performance for a wide range of vehicles.
Vehicle Fitment
- Toyota Hilux KUN26R 3.0L 1KDFTV Diesel Turbo I/C (08/2006 - 09/2015)
Later Style Solenoid (Plug Profile)
Includes Sub-models SR, Workmate, SR5, SR5 Black, SR X-CAB, SR Extra Cab, SR5 Extra Cab
- Toyota Hilux KUN16R 3.0L 1KDFTV Diesel Turbo I/C (03/2005 - 09/2015)
Includes Sub-models SR, Workmate, SR Extra Cab
- Toyota Hilux KZN130R KZN165R KZN185R 3.0L 1KZTE, 1KDFTV (08/1993 - 10/2000)
Includes Sub-models Surf, Surf SSR, Surf SSR-G, Surf SSR-V, Surf SSR-X, SR5
- Toyota Landcruiser Prado KZJ95R KZJ120R 3.0L 1KZTE (04/1996 - 02/2007)
Includes Sub-models Prado, TJ, TS, TX, TZ, Diesel Turbo 4WD, Advantage, Grande, GX, GX Limited, GXL, RV, VX, Pilbara
- Toyota Landcruiser Prado KDJ90R KDJ95R KDJ120R KDJ121R KDJ125R KDJ150R KDJ155R 3.0L 1KDFTV (07/2000 - 08/2015)
Includes Sub-models Prado, TS, TX, TZ, Diesel Turbo 4WD, RS, RX, RZ, Grande, GX, GXL, Standard, VX, Altitude, Kakadu
- Toyota HiAce KDH200R KDH205R KDH220R KDH222R KDH225R KDH227R 2.5L 2KDFTV Turbo Diesel (08/2004 - 09/2007)
Includes Sub-models DX, DX Long, Long DX, Long Super GL, Super GL Long Diesel Turbo, Commuter Bus, LWB, SLWB
- Toyota HiAce KDH201R KDH206R KDH221R KDH223R 3.0L 1KDFTV / KZH100R KCH40R 3.0L 1KZTE Turbo Diesel (08/1993 - 09/2007)
Includes Sub-models Commuter Bus, LWB, LWB Crew, SLWB, DX Long, DX Route, Super GL Long, Commuter DX, Commuter GL, DX Wide Super Long, Regius
- Toyota Regius Ace KDH201R KDH205R KDH206R KDH221R KDH223R 2.4L 2KDFTV, 3.0L 1KDFTV Turbo Diesel (08/1999 - Onwards)
Includes Sub-models G, V, Wind Tourer, DX High Roof, Long DX, DX Long Body, Long Super GL, DX Route, DX High Roof, Commuter Bus
- Daihatsu Delta V138 3.0L 1KDFTV Turbo Diesel (08/1993 - 09/2007)
Includes Sub-models 3100kg
Specifications and Sizing
- Voltage : 12V
- KW: 2.2
- Rotation Direction: Clockwise
- Pinion Teeth: 10
- Pinion at Rest: 18mm
- Pinion Diameter: 38mm
- Overall Length: 240mm
- Mounting Bolt Centre-Centre(s): 127mm
- Mounting Hole Diameter: M12 x 1.5/13
- Flange Diameter: 82mm
- Nose Cone Length: N/A
