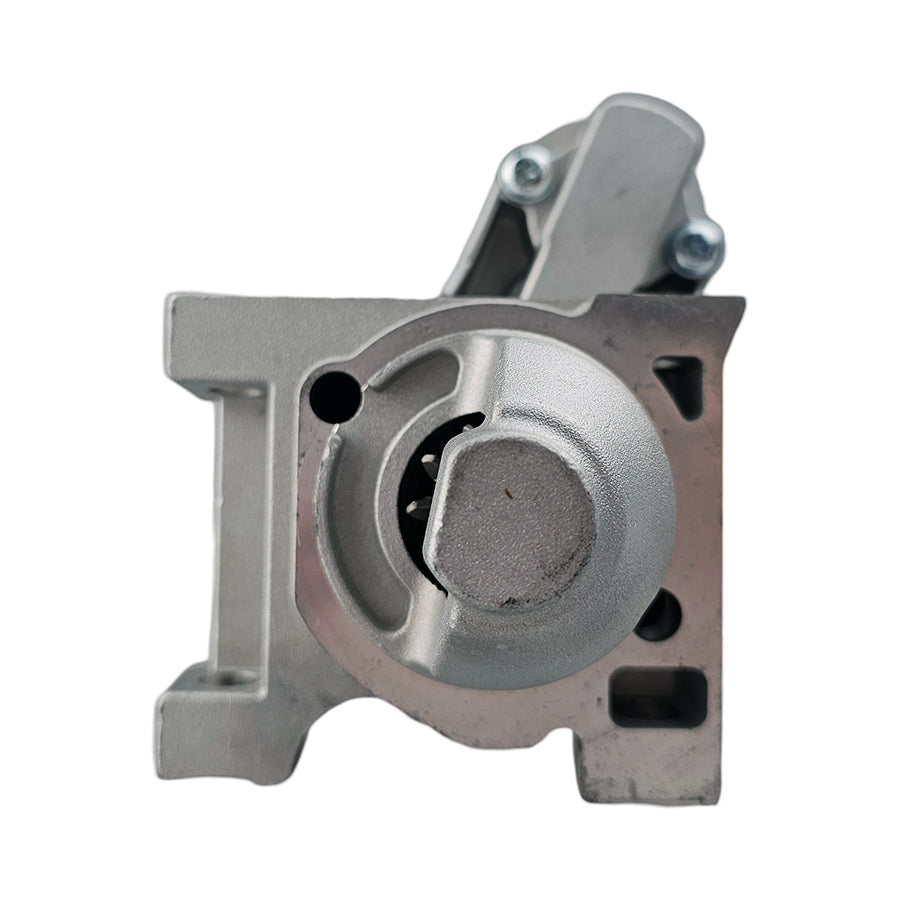

Starter Motor for Holden Commodore Adventra Calais Caprice Crewman Monaro Statesman HSV Clubsport GTS Maloo Senator - 5.7L LS1, 5.8L LS1 C4B, 6.0L L76 L98 Engines

One Brand New Starter Motor

Without spade terminal, for models that require spade terminal please see BSM1020

Allied Auto Online is proud to offer top-tier starter motors that set the standard in automotive excellence. Our products are crafted in accordance with stringent international quality standards (ISO/TS16949), ensuring reliability and superior performance for a wide range of vehicles.



Vehicle Fitment

• Holden Adventra VY VZ 5.7L LS1 (GENIII) (10/2003 - 01/2006)
  Includes Sub-models CX8, LX8
• Holden Calais VT VX VY VZ 5.6L LS1 (GENIII) (06/1999 - 01/2006)
  Includes Sub-models International
• Holden Calais VE VZ 6.0L L98 L76 (AFM) (02/2006 - 08/2010)
  Includes Sub-models V, V International, 60th Anniversary, Sportwagon, V Sportwagon
• Holden Caprice WH WK WL 5.7L LS1 (GENIII) (06/1999 - 01/2006)
  Includes Sub-models
• Holden Caprice WL WM 6.0L L76, L98 (02/2006 - 08/2010)
  Includes Sub-models
• Holden Commodore inc. One Tonner & Police VT VU VX VY VZ 5.7L LS1 (GENIII) (09/1997 - 01/2007)
  Includes Sub-models Police, One Tonner, S, SS, Executive, Berlina, SS Fifty, SV8 SSZ
• Holden Commodore VE VZ 6.0L L98, L76 (AFM) (2004 - 08/2010)
  Includes Sub-models Berlina, SS, SS Thunder, SV8, SS-V, SS-V SE, 60th Anniversary, Redline Edition, Sportwagon
• Holden Crewman VY VZ 5.7L LS1 (GENIII) / 6.0L L98, L76 (09/2003- 09/2007)
  Includes Sub-models Cross 8, SS, SSZ, SS Thunder
• Holden Monaro V2 VZ 5.7L LS1 (GENIII) (12/2001 - 12/2006)
  Includes Sub-models CV8, CV8-R, CV8-Z
• Holden Statesman WH WK WL WM 5.7L LS1 (GENIII) / 6.0L L76, L98 (06/1999 - 07/2006)
  Includes Sub-models V8, International
• Holden Statesman WH WK WL WM 5.7L LS1 (GENIII) / 6.0L L76, L98 (06/1999 - 07/2006)
  Includes Sub-models
• HSV Avalanche VY VZ 5.7L LS1 (GENIII) (12/2003 - 04/2006)
  Includes Sub-models XUV
• HSV Clubsport inc. Clubsport R8 VT VX VY 5.7L LS1 (GENIII) / 5.8L LS1 C4B / VZ 6.0L LS2 (12/2003 - 04/2006)
  Includes Sub-models HRT Edition, HSV Dealer Team Edition, Special Edition, Hackett Edition, 15th Anniversary, 20th Anniversary
• HSV Coupe V2 VZ 5.7L LS1 (GENIII) / 6.0L LS2 (12/2001 - 11/2007)
  Includes Sub-models GTO, GTS, 4, Limited Edition, Signature
• HSV Grange WK WH WL WM 5.7L LS1 (GENIII) / 6.0L LS2 (07/1999 - 03/2008)
  Includes Sub-models 250 LS1, 255 LS1
• HSV GTS VE VX VT VY 5.7L LS1 (GENIII) / 6.0L LS2 (09/2000 - 03/2008)
  Includes Sub-models
• HSV Maloo inc. Maloo R8 VE VU VY VZ 5.7L LS1 (GENIII) / 5.8 LS1 C4B / 6.0L LS2 (03/2001 - 03/2008)
  Includes Sub-models
• HSV Senator VT VX VY VZ 5.7L LS1 (GENIII), 304 Stroker / 6.0L LS2 (07/1999 - 03/2008)
  Includes Sub-models Signature, Signature 220i, 10th Anniversary, 300
• HSV SV300 SV99 5.7L LS1 (GENIII) / SV6000 6.0L LS2 (09/2001 - 04/2006)
  Includes Sub-models



Specifications and Sizing

• Voltage : 12V

• KW: 1.2
• Rotation Direction: Clockwise
• Pinion Teeth: 10
• Pinion at Rest: 9mm
• Pinion Diameter: 28mm
• Overall Length: 226mm
• Mounting Bolt Centre-Centre(s): 64mm
• Mounting Hole Diameter: 8

• Flange Diameter: 73mm
• Nose Cone Length: 42mm

What's Included

• 1 x Starter Motor

All our parts come with a 12 month/20,000km warranty. They are backed up with a professional customer service team that has been in the industry for over 100 years. We are the wheel end experts. Our customer service team will be there to support you throughout the entire process. From questions you have pre-purchase to follow up support post purchase. Make the right decision and buy with a company that has a proven track record in service and supply.
