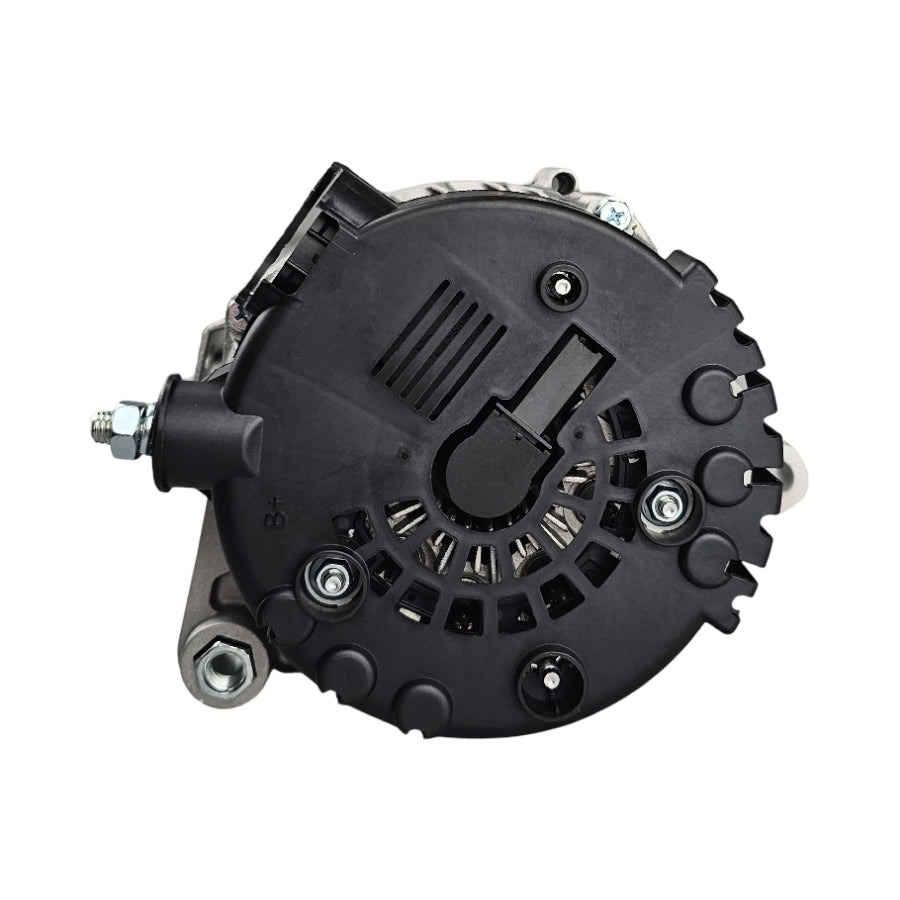

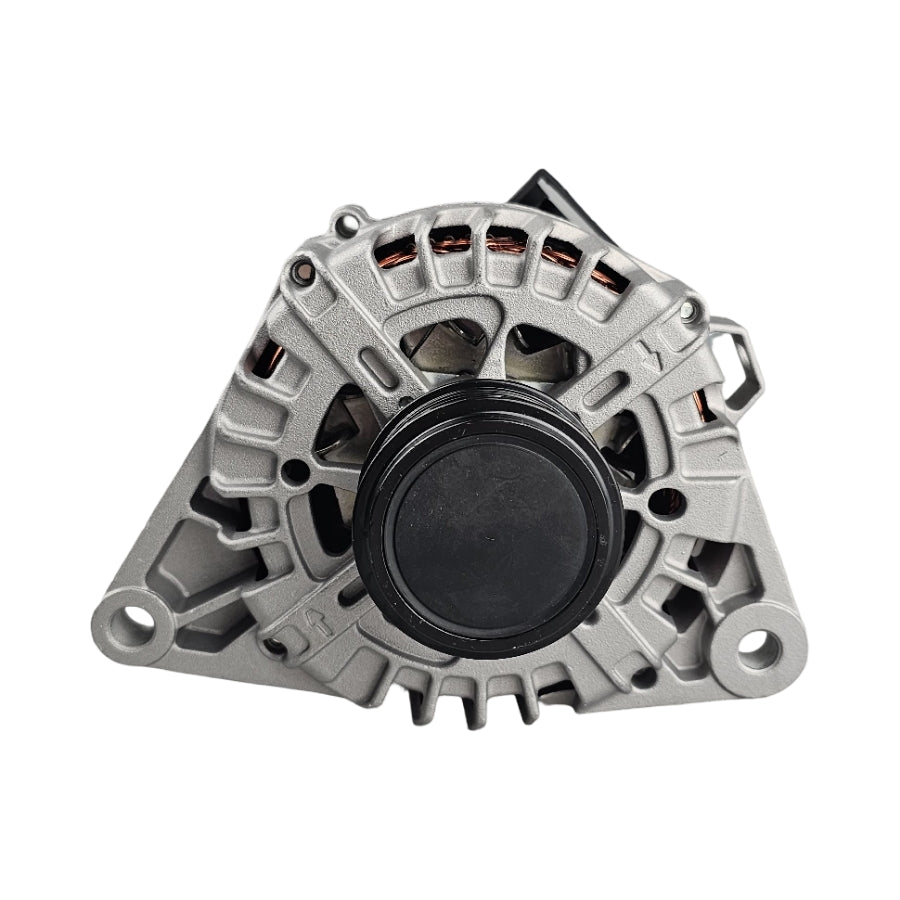

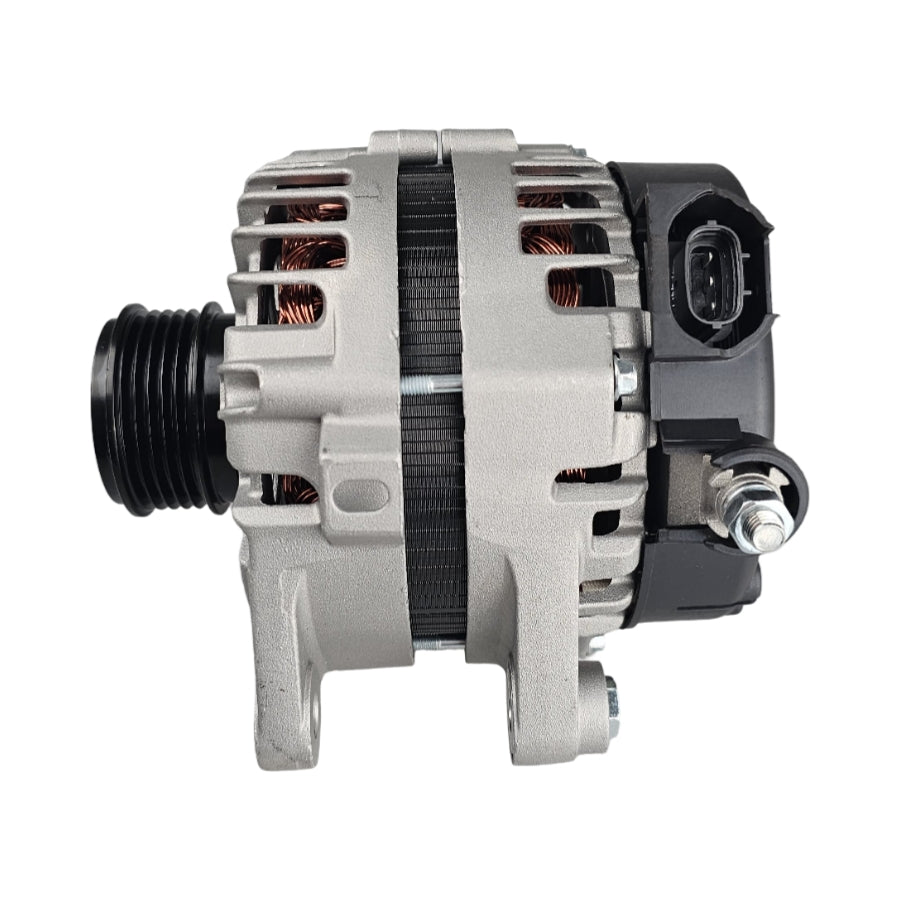

Alternator for Hyundai i30 i30cw GD GDE FD 1.6L D4FB, i40 VF 1.7L D4FD 3-Pin

One Brand New Alternator

3-Pin Regulator Plug, Please Check OE Part Number - For 2-Pin plug please see AAO-16979

Allied Auto Online is proud to offer top-tier alternators that set the standard in automotive excellence. Our products are crafted in accordance with stringent international quality standards (ISO/TS16949), ensuring reliability and superior performance for a wide range of vehicles.

Vehicle Fitment

• Hyundai i30 & i30cw FD GD GDE 1.6L D4FB Turbo I/C FWD (09/2011 - 03/2017) 3-Pin Plug
  Includes Sub-models SLX 1.6 CRDi, Active, Premium, Elite, Trophy, Tourer 1.6 CRDi, Tourer Active 1.6 CRDi, Tourer Elite 1.6 CRDi, Active X, Active X 1.6 CRDi, SX 1.6 CRDi
• Hyundai i40 VF 1.7L D4FD Turbo I/C FWD (10/2011 - 04/2019) 3-Pin Plug
  Includes Sub-models Active, Elite, Premium, Active Tourer, Premium Tourer
• Kia Rio UB DM514 1.4L D4FC Turbo I/C FWD (2012 - 03/2017) 3-Pin Plug
  Includes Sub-models LX

Specifications and Sizing

• Voltage: 12V

• Amps: 120A
• Plug: RP22 3-Pin (C L FR)
• Pulley: 5PV
• Pulley Diameter: 61mm
• Adjustment Hole: 11mm
• Pivot Hole: 10/ M8 x 1.25
• Adjustment Hole to Pivot Hole: 163mm
• Inside Ft to Ft: 50mm

What's Included

• 1 x Alternator
