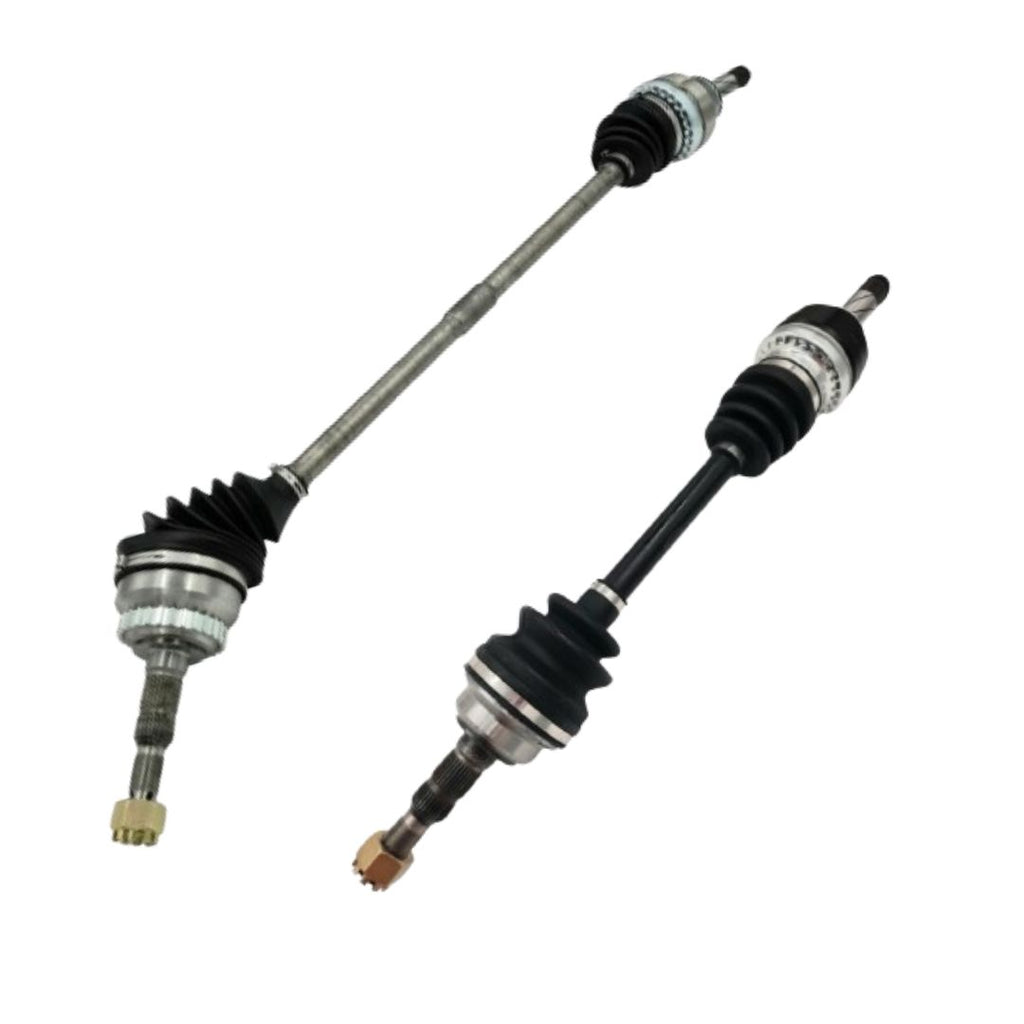

CV Axle Drive Shaft Set - Pair Left and Right Hand Side Automatic Manual FWD
***Note: Please check fitment notes, The Right CV comes with an ABS Ring on the Shaft***
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Holden Astra TS 1.8L Z18XE FWD MT AT (2000 - 2003) Chassis: TGF48 TGF69 TGF08
Sub-Models Include CD, CDX, CITY, CLASSIC, EQUIPE
- Holden Astra TS 1.8L Z18XE FWD MT AT (2002 - 12/2005) Chassis: TGF48 TGF69 TGF35
Sub-Models Include CLASSIC, EQUIPE, CLASSIC, CD CLASSIC
- Holden Astra TS 1.8L X18XE1 FWD MT AT (09/1998 -12/2000)
Sub-Models Include CD, CD OLYMPIC EDITION, CITY, CITY OLYMPIC EDITION
- Holden Astra TR 1.8L C18SEL FWD MT AT (09/1996 - 09/1998)
Sub-Models Include GL
Sizing and Specifications
Right Hand CV
- Length (Compressed): 955mm
- Spline Count - Outer/Wheel Side: 33
- Spline Count - Inner/Diff Side: 22
- Onboard Joint Type Ball: Yes
- Inboard Joint Type Ball: Yes
- ABS Ring: Yes
- Hub Nut: M20 x 1
Left Hand CV
- Length (Compressed): 605mm
- Spline Count - Outer/Wheel Side: 33
- Spline Count - Inner/Diff Side: 22
- Outboard Joint Type: Ball
- Inboard Joint Type: Ball
- Hub Nut: M20x1
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
