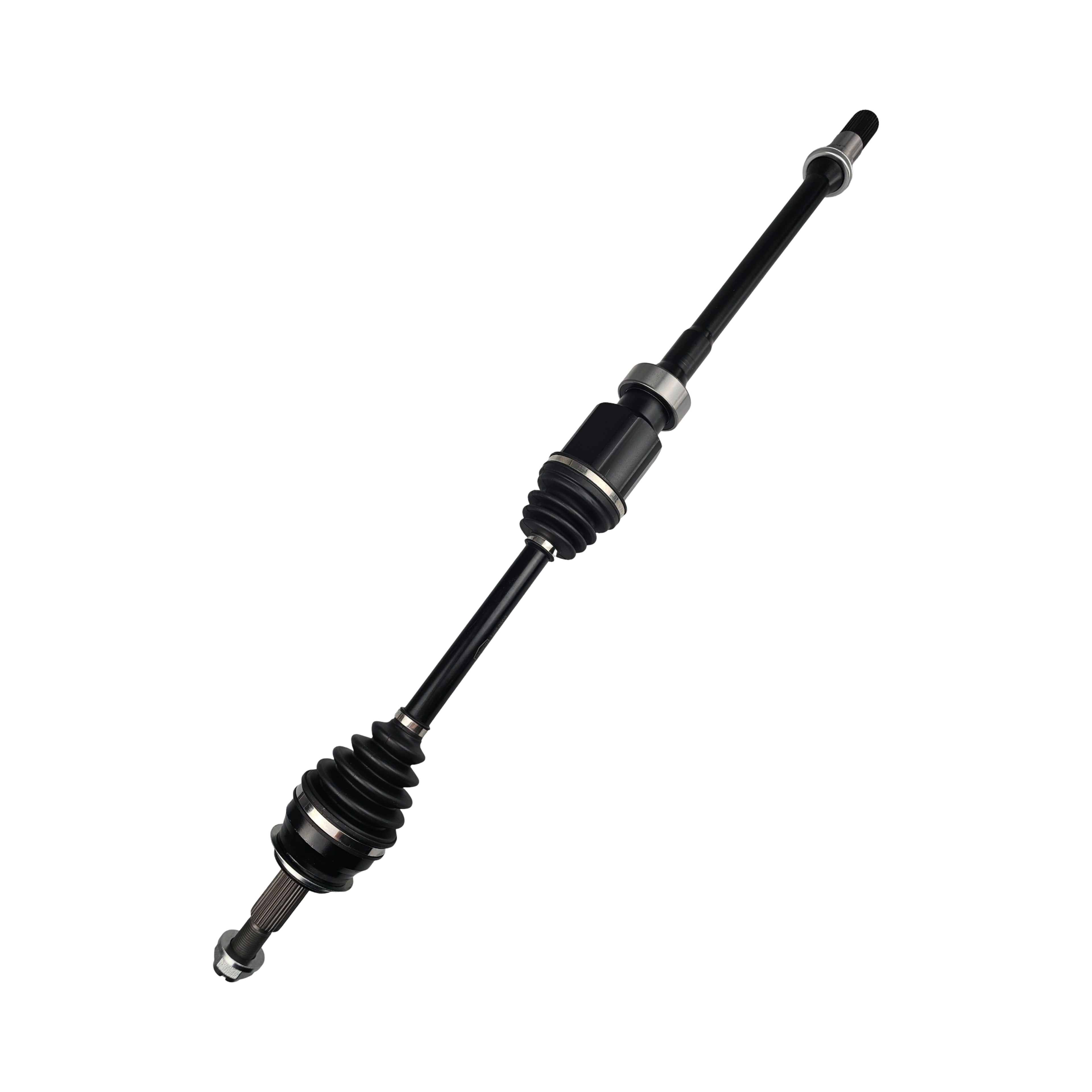

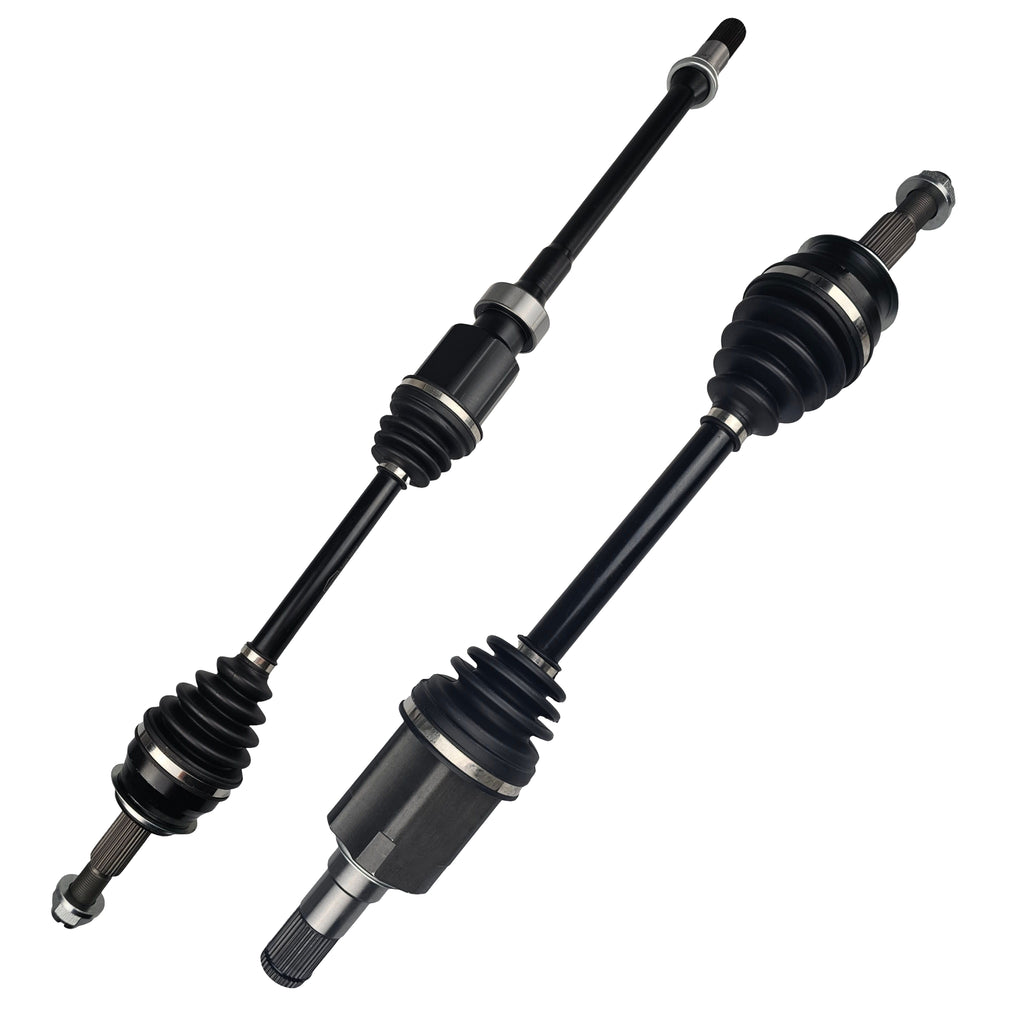

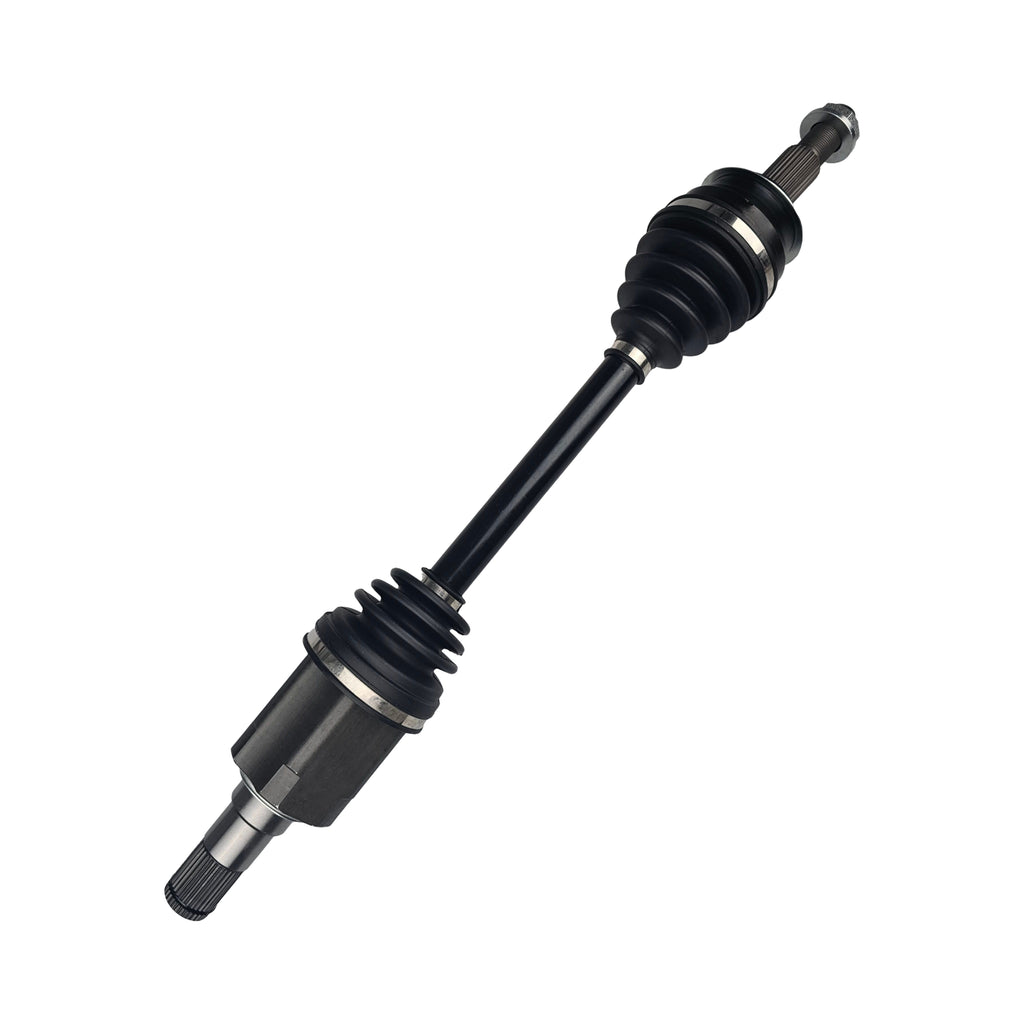

CV Axle Drive Shaft - PAIR Left and Right Hand Side Manual / Automatic FWD
31T Splines - most common, check vehicle differential joint side spline count/teeth
For 28 Splines see CVA1404-CVA1403
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment For:
- Mazda 3 BM BMLS BMLP 2.5L PY-VPS (01/2014 - 07/2016) 31T Spline Count, For 28 Splines see CVA1404-CVA1403
- Mazda 3 BN BNLS BNLP 2.5L PY-VPS (07/2016 - 02/2019) Check diff side spline count
Includes Sub-models SP25, SP25 GT, SP25 Astina, SP25 Safety, SP25 GT Safety
Sizing and Specifications
Left Hand Side
- Length (Compressed): 638mm
- Spline Count Outer/Wheel Side: 28
- Spline Count Inner/Diff Side: 31
Right Hand Side
- Length (Compressed): 1002mm
- Spline Count Outer/Wheel Side: 28
- Spline Count Inner/Diff Side: 31
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
