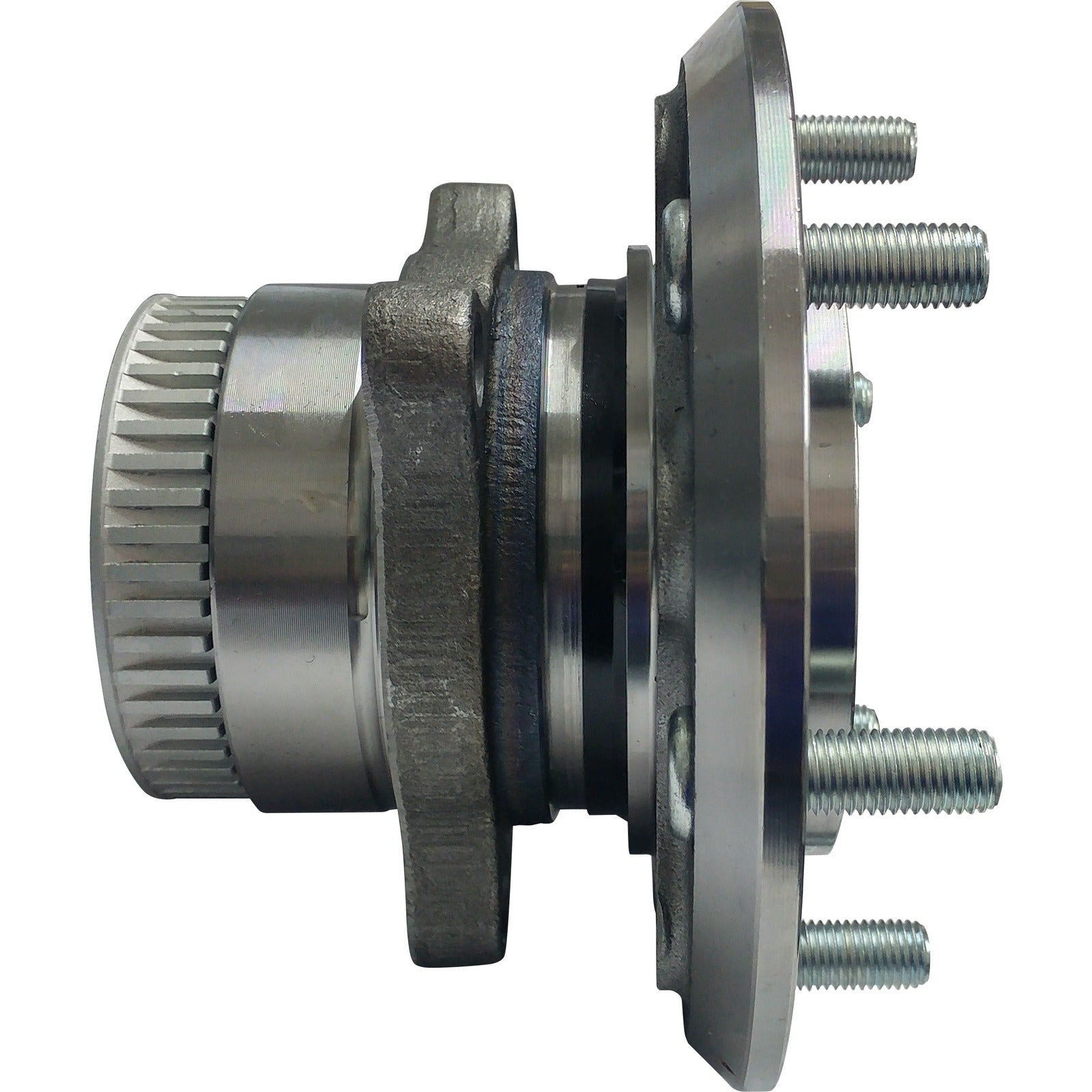

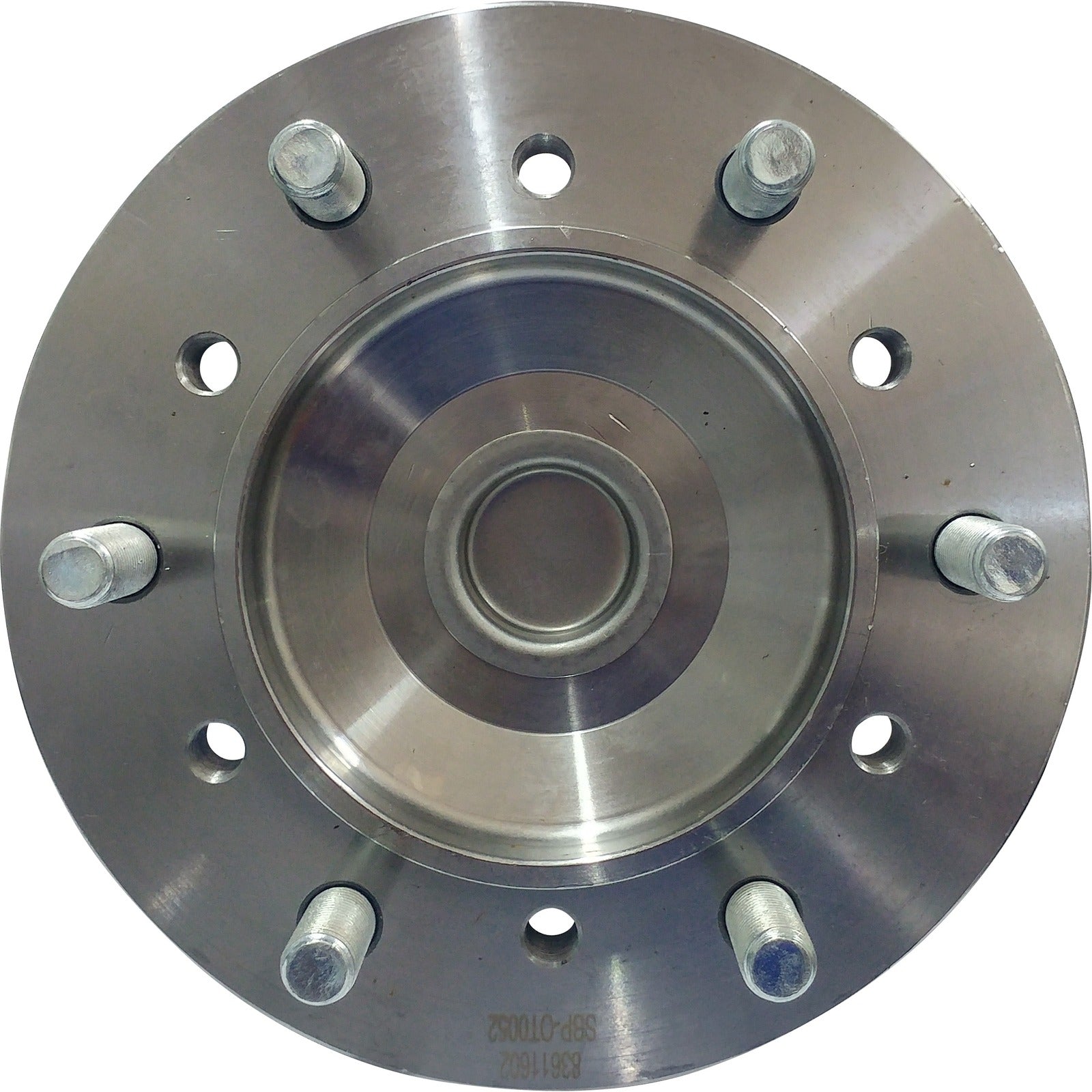

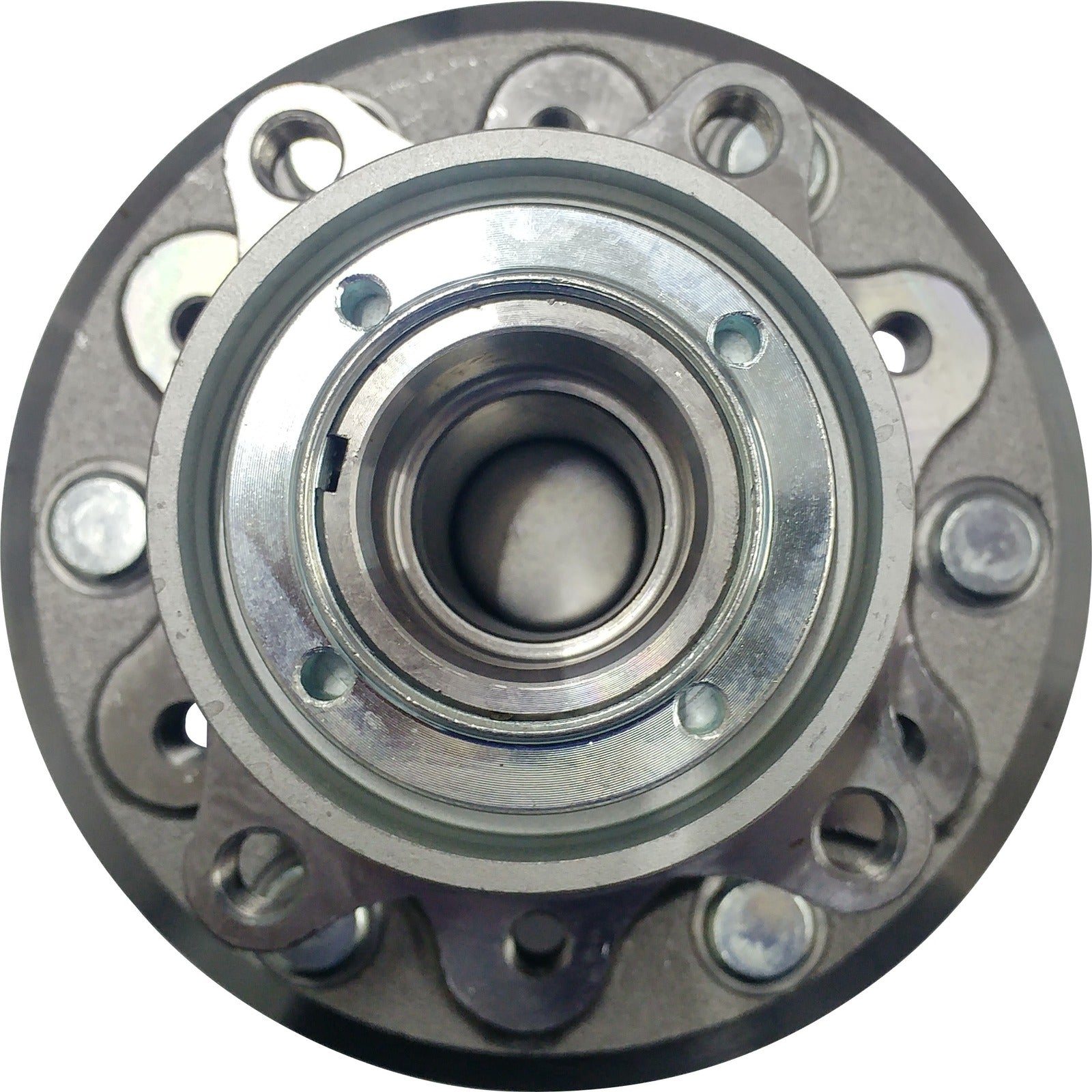

One Brand New Front Wheel Bearing Hub Assembly



Manufactured from premium steel, heavy-duty seals and OEM grade sensors. Precision engineered to OEM specifications for quiet smooth running operation. High grade Rubber used on ABS sensor wires (where applicable) for durability.



Vehicle Fitment Information

• Toyota Hiace KDH201 TRH201 KDH223 TRH200 KDH221 TRH223 KDH200
  TRH214 TRH221 KDH222 KDH220 TRH224 TRH112 TRH122 KDH211
  TRH122 TRH124 2.0L 2.5L 2.7L 3.0L (2003 - 2024)
  Includes Sub-models DX, GL, COMMUTER, SUPER LONG BODY,
  HIGH ROOF, BUS, CHILDREN BUS



Specifications and Sizing

• Stud Bolt Qty - 6

• Flange Mounting Hole Qty - 4
• Wheel flange Diameter : 180mm
• 6 Stud PCD : M12x 1.5. 139mm
• Wheel Pilot Diameter : 106mm
• Wheel Flange Centre Hole : 30mm
• Flange Offset : 59.8mm
• Hub Pilot Diameter 1 : 92.3mm
• Hub Pilot Diameter 2 : 90mm
• ABS Ring Teeth : 48
• Hub Centre Hole : 37mm



What's Included

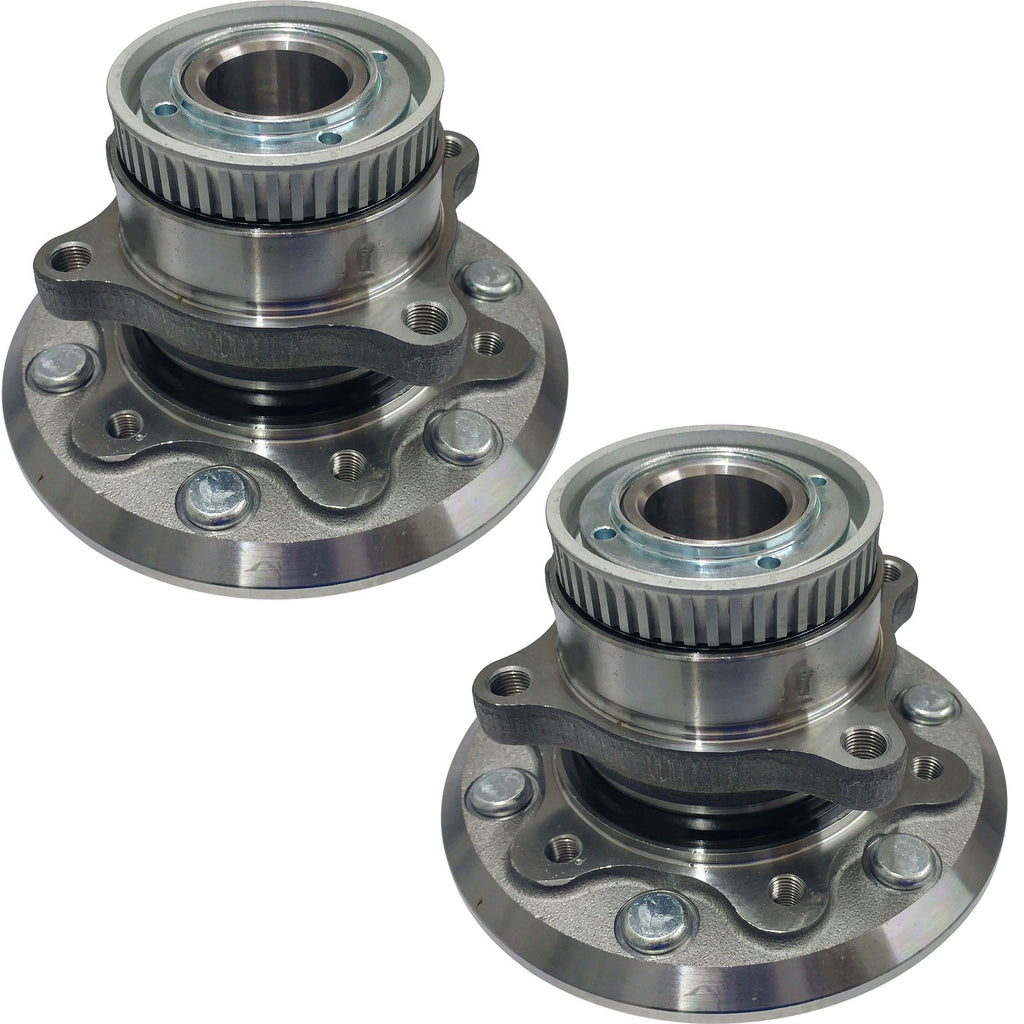

• 2 x Full Hub Assembly

Our precise machining practices ensure that we deliver a premium product that produces a smoother roll and longer life span. All our bearing kits, hubs and componentry come with a 12 month/20,000km warranty. They are backed up with a professional customer service team that has been in the industry for over 30 years. We are the wheel end experts. Our customer service team will be there to support you throughout the entire process. From questions you have pre-purchase to follow up support post purchase. Make the right decision and buy with a company that has a proven track record in service and supply.
