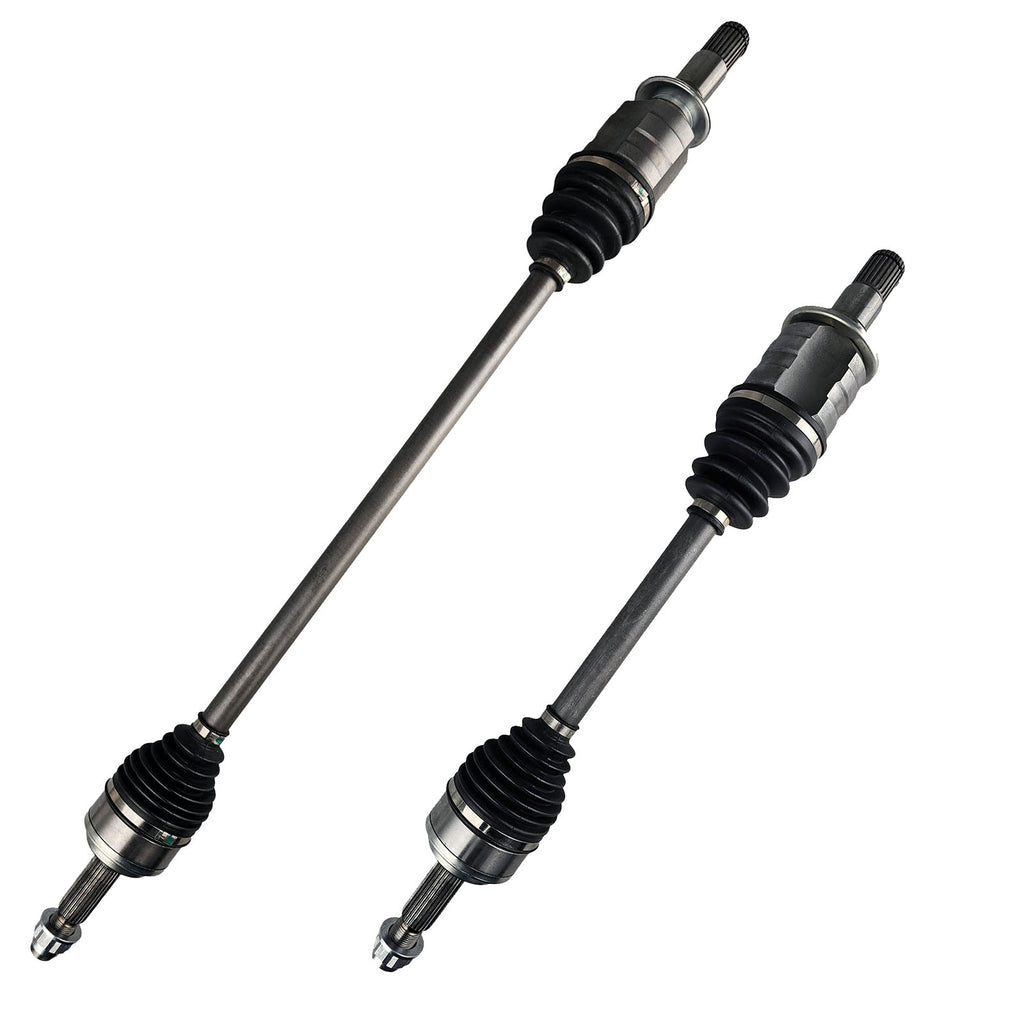

One Brand New PAIR Front CV Drive Shaft
***PAIR Kit, Please Check OE, Manual Only***
Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.
Vehicle Fitment
- Toyota Corolla MZEA12 (08/2018~2026) 2.0L Petrol M20AFKS - Manual Only, For CVT Models Please See CVA1656-CVA1657
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
Left CV Shaft
- Length (Compressed): 643 mm
- Spline Count - Outer/Wheel Side: 26
- Spline Count - Inner/Diff Side: 24
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut: M22 x 1.5
Right CV Shaft
- Length (Compressed): 943 mm
- Spline Count - Outer/Wheel Side: 26
- Spline Count - Inner/Diff Side: 24
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut: M22 x 1.5
What's Included
All components include a 12 month/20,000km warranty and support from our specialist team.
