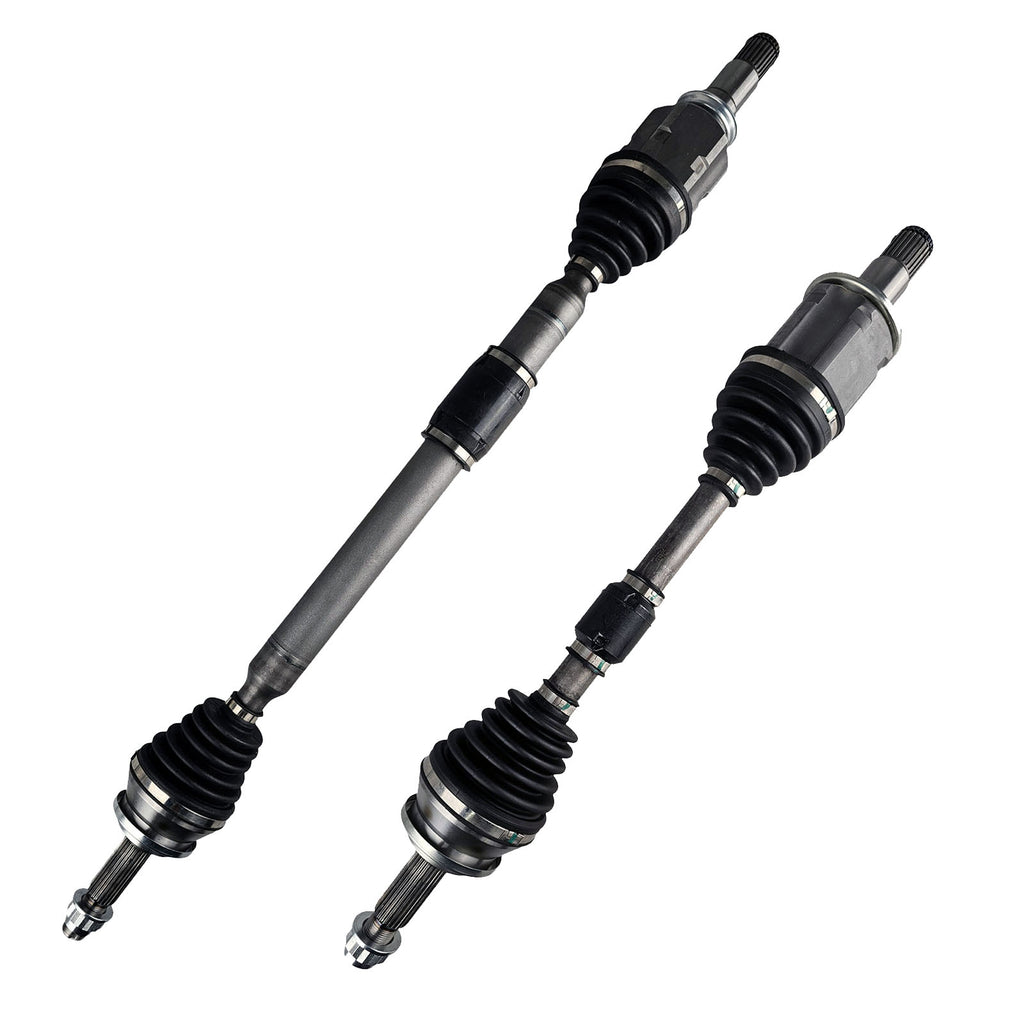

One Brand New Front CV Drive Shaft
***PAIR Front, Please Check OE***
***FWD CVT Only***
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Toyota Prius Alpha ZVW40, ZVW41 (04/2011~03/2021) 1.8L Petrol-HEV 2ZRFXE
- Toyota Prius V ZVW40 (05/2012~12/2021) 1.8L Petrol-HEV 2ZRFXE
Sizing and Specifications
Left CV Shaft
- Length (Compressed): 651 mm
- Spline Count - Outer/Wheel Side: 26
- Spline Count - Inner/Diff Side: 24
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut: M22 x 1.5
Right CV Shaft
- Length (Compressed): 949 mm
- Spline Count - Outer/Wheel Side: 26
- Spline Count - Inner/Diff Side: 24
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut: M22 x 1.5
What's Included
All components include a 12 month/20,000km warranty and support from our specialist team.
