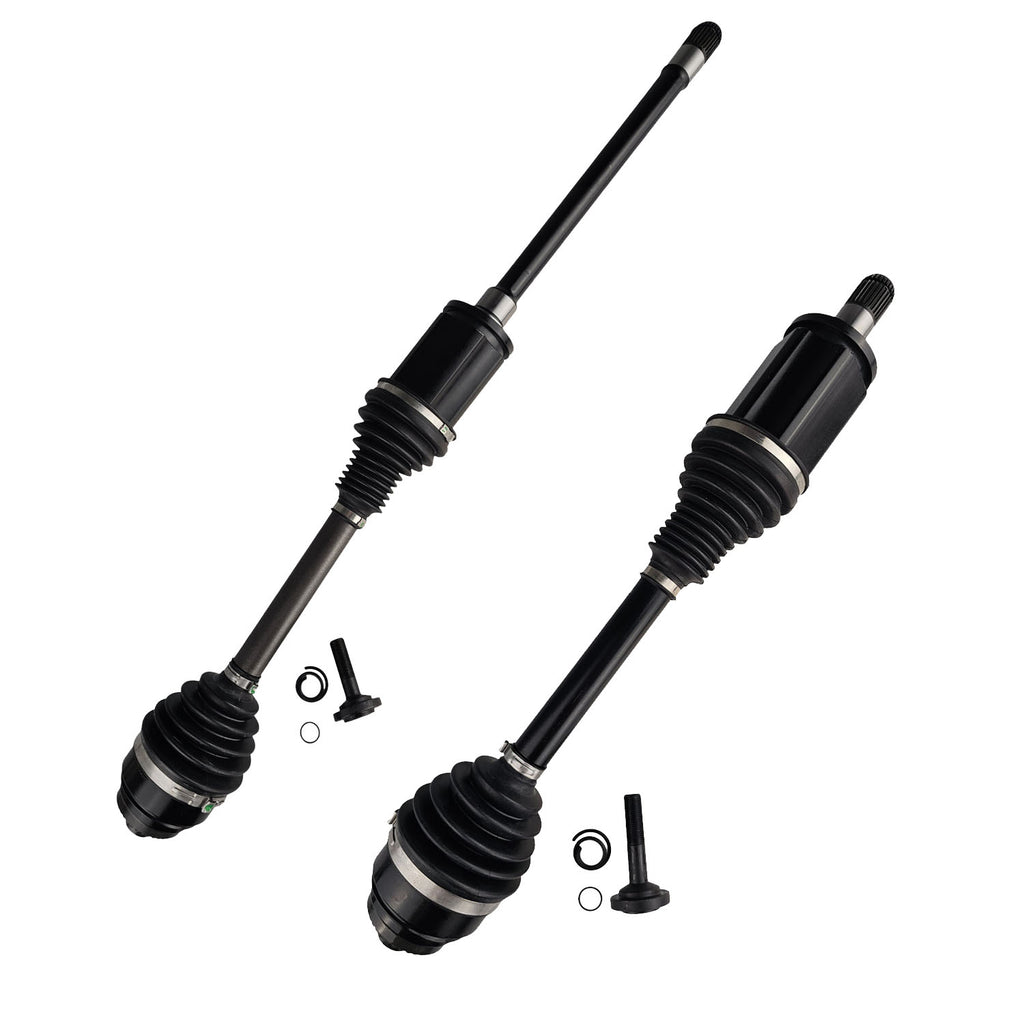

One Brand New PAIR Left & Right Front CV Drive Shaft
***PAIR Front, Please Double Check Specs. AWD Automatic***
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- BMW X3 M Competition F97 (01/2019~08/2024) 3.0L Petrol S58B30
- BMW X3 xDrive 20d G01 (11/2017~08/2021) 2.0L Diesel B47D20A
- BMW X3 xDrive 20i G01 (08/2019~08/2024) 2.0L Petrol B48B20B
- BMW X3 xDrive 30i G01 (11/2017~08/2024) 2.0L Petrol B48B20B
- BMW X3 xDrive 30d G01 (11/2017~08/2021) 3.0L Diesel B57D30A
- BMW X3 M40i G01 (10/2017~08/2024) 3.0L Petrol B58B30A, B58B30B
- BMW X3 xDrive 30e M Sport G01 (01/2020~08/2024) 2.0L Petrol-HEV B48B20A
- BMW X4 M Competition F98 (01/2019~07/2021) 3.0L Petrol S58B30
- BMW X4 M40i G02 (07/2018~2026) 3.0L Petrol B58B30A, B58B30B
- BMW X4 xDrive 20d M Sport G02 (01/2018~03/2020) 2.0L Diesel B47D20A
- BMW X4 xDrive 20i M Sport G02 (08/2019~2026) 2.0L Petrol B48B20A
- BMW X4 xDrive 30i M Sport G02 (07/2018~2026) 2.0L Petrol B48B20A, B48B20B
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
Left CV Shaft
- Length (Compressed): 570.5 mm
- Spline Count - Outer/Wheel Side: 37
- Spline Count - Inner/Diff Side: 27
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut: M16 x 1.5
Right CV Shaft
- Length (Compressed): 874 mm
- Spline Count - Outer/Wheel Side: 37
- Spline Count - Inner/Diff Side: 27
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut: M16 x 1.5
- Extension Shaft Length From Bearing Cradle Flange: 360mm
What's Included
All components include a 12 month/20,000km warranty and support from our specialist team.
