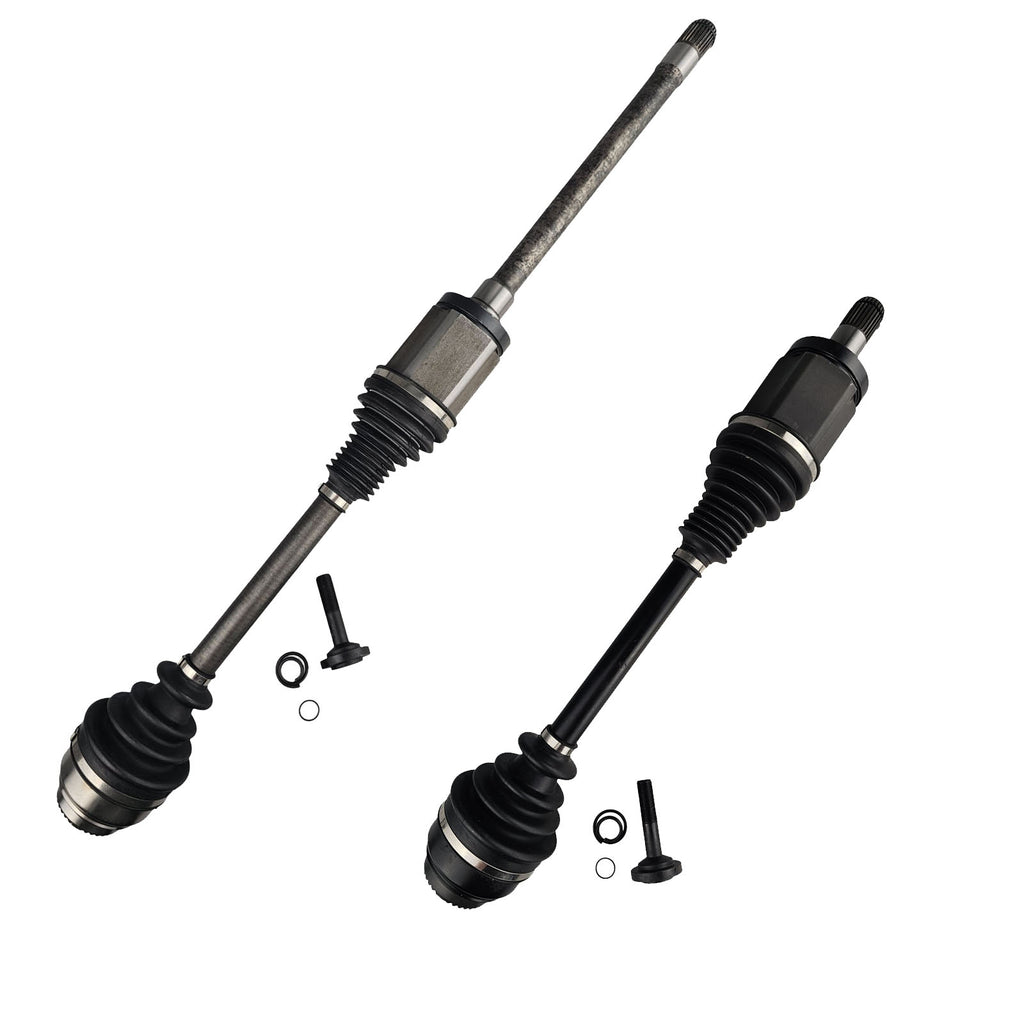

One Brand New PAIR Left & Right Front CV Drive Shaft
***PAIR Kit Front, AWD Automatic Only***
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- BMW X3 xDRIVE 20d F25 (03/2011~11/2017) 2.0L Diesel N47D20C, B47D20A
- BMW X3 xDRIVE 20i F25 (12/2011~11/2017) 2.0L Petrol N20B20B
- BMW X3 xDRIVE 28i F25 (03/2011~01/2014) 2.0L, 3.0L Petrol N20B20A, N52B30
- BMW X3 xDRIVE 30d F25 (05/2011~11/2017) 3.0L Diesel N57D30A
- BMW X3 xDRIVE 35i F25 (03/2011~2013) 3.0L Petrol N55B30M0
- BMW X4 xDRIVE 20d F26 (06/2014~04/2018) 2.0L Diesel B47D20A
- BMW X4 xDRIVE 20i F26 (06/2014~04/2018) 2.0L Petrol N20B20A
- BMW X4 xDRIVE 30d F26 (06/2014~04/2018) 3.0L Diesel N57D30A
- BMW X4 xDRIVE 35d F26 (06/2014~04/2018) 3.0L Diesel N57D30B
- BMW X4 xDRIVE 35i F26 (06/2014~04/2018) 3.0L Petrol N55B30M0
Sizing and Specifications
Left CV Shaft
- Length (Compressed): 592 mm
- Spline Count - Outer/Wheel Side: 37
- Spline Count - Inner/Diff Side: 27
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut: M16 x 1.5
Right CV Shaft
- Length (Compressed): 881.5 mm
- Spline Count - Outer/Wheel Side: 37
- Spline Count - Inner/Diff Side: 27
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut: M16 x 1.5
- Extension Shaft Length from Bearing Cradle Flange: 349mm
What's Included
All components include a 12 month/20,000km warranty and support from our specialist team.
