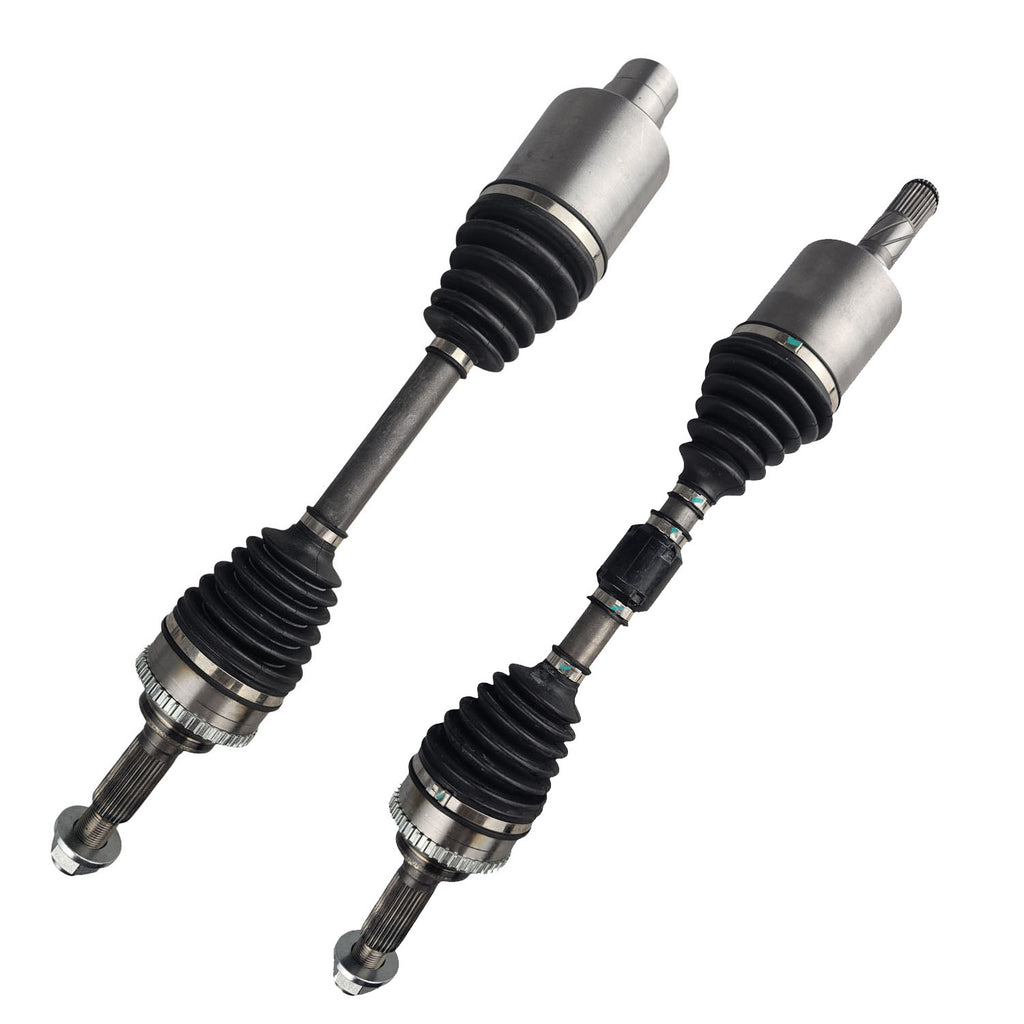

CV Axle Drive Shaft - Pair Front
Automatic 4WD
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment For:
- Ford Escape XLS ZB UZ02 (01/2004–05/2006) 2.3 litre, L3 I4 16v DOHC MPFI (108kW)
- Ford Escape XLT ZB UZ04 (06/2004–05/2006) 2.3 litre, L3 I4 16v DOHC MPFI (108kW)
- Ford Escape XLS ZC (06/2006–03/2008) 2.3 litre, L3 I4 16v DOHC VVT MPFI (108kW)
- Ford Escape XLT ZC (06/2006–03/2008) 2.3 litre, L3 I4 16v DOHC VVT MPFI (108kW)
- Ford Escape XLS ZC (06/2006–03/2008) 2.3 litre, L3 I4 16v DOHC VVT MPFI (108kW)
- Ford Escape XLT ZC (06/2006–03/2008) 2.3 litre, L3 I4 16v DOHC VVT MPFI (108kW)
- Ford Escape XLT ZC (06/2006–03/2008) 2.3 litre, L3 I4 16v DOHC VVT MPFI (108kW)
- Ford Escape ZD (04/2008–04/2012) 2.3 litre, L3 I4 16v DOHC VVT MPFI (109kW)
- Ford Escape ZD (2009–01/2012) 2.3 litre, L3 I4 16v DOHC VVT MPFI (109kW)
- Ford Escape ZD (2009–01/2012) 2.3 litre, L3 I4 16v DOHC VVT MPFI (109kW)
- Mazda Tribute 52 5Z (07/2006–01/2008) 2.3 litre, L3 I4 16v DOHC VVT EFI (109kW)
- Mazda Tribute 52 5Z (07/2006–01/2007) 2.3 litre, L3 I4 16v DOHC VVT EFI (109kW)
- Mazda Tribute CU EP3W (01/2004–06/2006) 2.3 litre, L3 I4 16v DOHC EFI (108kW)
- Mazda Tribute DX YU EPEW (02/2001–01/2004) 2.0 litre, YF I4 16v DOHC EFI (97kW)
Sizing and Specifications
Right Side:
- Length (Compressed): 570mm
- Spline Count - Outer/Wheel Side: 28 Teeth
- Spline Count - Inner/Diff Side - Female: 35 Teeth
- Outboard Joint Type: Ball
- Inboard Joint Type: Ball
- Drive Shaft Seal - Inner ID: 35mm
- ABS Ring Teeth: 44
- Hub Nut Style: M22 x 1.5
Left Side:
- Length (Compressed): 635mm
- Spline Count - Outer/Wheel Side: 28 Teeth
- Spline Count - Inner/Diff Side: 28 Teeth
- Outboard Joint Type: Ball
- Inboard Joint Type: Ball
- Drive Shaft Seal - Inner ID: 35mm
- ABS Ring Teeth: 44
- Hub Nut Style: M22 x 1.5
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
