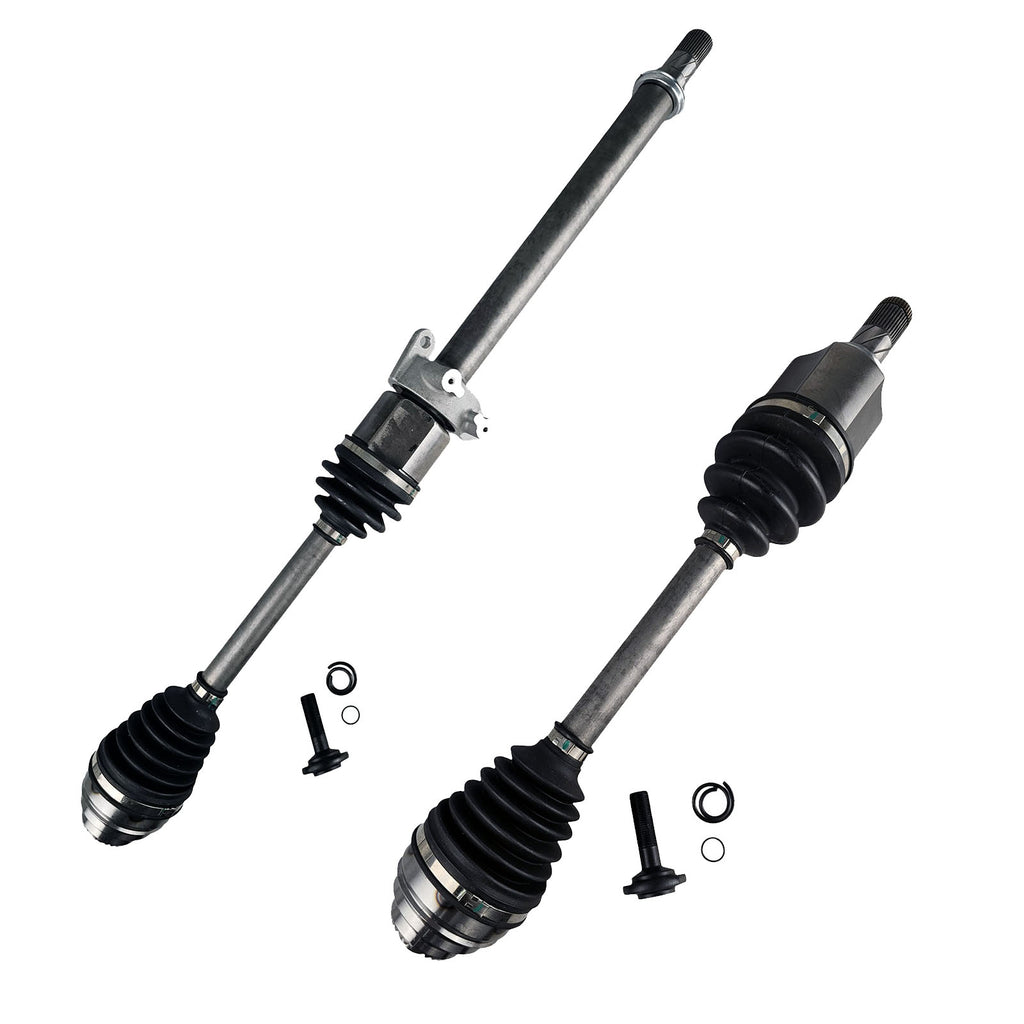

CV Axle Drive Shaft - Front Right Hand Side
Automatic AWD FWD
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment For:
- BMW 218D Active Tourer F45 F45 (11/2014–03/2018) 2.0 litre, B47C20A I4 16v DOHC I/C Turbo CRD (110kW)
- BMW X1 sDrive 18d F48 F48 (12/2015–07/2019) 2.0 litre, B47C20A I4 16v DOHC I/C Turbo CRD (110kW)
- BMW X1 sDrive 18d F48 F48 (07/2019–05/2022) 2.0 litre, B47C20A I4 16v DOHC I/C Turbo CRD (110kW)
- MINI Cooper S Clubman F54 F54 (11/2015–06/2019) 2.0 litre, B48A20A I4 16v DOHC VVT I/C Turbo Direct inj (141kW)
- MINI Cooper S Clubman F54 F54 (07/2019–03/2024) 2.0 litre, B48A20F I4 16v DOHC VVT I/C Turbo Direct inj (141kW)
- MINI Countryman Cooper SD ALL 4 F60 F60 (02/2017–02/2020) 2.0 litre, B47C20A I4 16v DOHC I/C Turbo CRD (140kW)
- MINI Countryman Cooper D F60 F60 (02/2017–06/2019) 2.0 litre, B47C20A I4 16v DOHC I/C Turbo CRD (110kW)
- MINI Countryman Cooper S F60 F60 (02/2017–06/2019) 2.0 litre, B48A20A I4 16v DOHC VVT I/C Turbo Direct inj (141kW)
- MINI Countryman Cooper D F60 F60 (07/2019–02/2020) 2.0 litre, B47C20A I4 16v DOHC I/C Turbo CRD (110kW)
Sizing and Specifications
Right Side
- Length (Compressed): 931mm
- Spline Count - Outer/Wheel Side: 31 Teeth, OD: 56mm
- Spline Count - Inner/Diff Side: 37 Teeth
- Outboard Joint Type: Ball
- Inboard Joint Type: Tripod
- Drive Shaft Seal - Inner ID: 35mm, Located Before the Tin Dust Sheild
- Ext Shaft Length Inside of Dust Cover to Shaft End: 70mm
- Extension Shaft Length From Outside of Bearing: 450mm
- Hub Bolt Style: M16 x 1.5
Left Side
- Length (Compressed): 546mm
- Spline Count - Outer/Wheel Side: 31T, OD: 56mm
- Spline Count - Inner/Diff Side: 37T
- Outboard Joint Type: Ball
- Inboard Joint Type: Joint
- Drive Shaft Seal - Inner ID: 35mm
- Hub Bolt Style: M16 x 1.5
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
